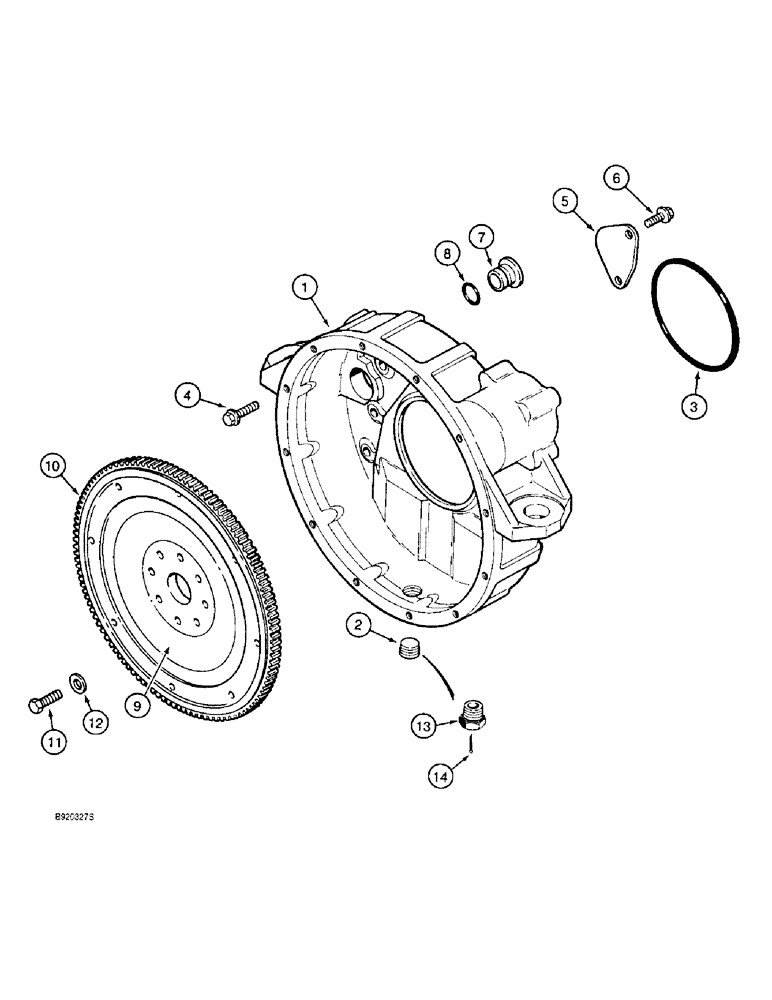

Запчасти Case 1155E (2-090) - FLYWHEEL AND HOUSING, 6T-590 ENGINE (02) - ENGINE

1

J903287

CASE

HOUSING - flywheel

1шт.

2

217-442

PLUG,3/4" - 14

- hex socket headless, 3/4 inch PT, housing drain, if used, replaces 221-845 plug

1шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

4

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9, Housing retaining, Replaces J910540 bolt

8шт.

5

J908095

PLATE

- cover

1шт.

6

J902735

BOLT,M8 - 1.25 x 21 mm

- hex flange, self tapping, 8 - 1.25 x 21 mm, plate retaining

2шт.

7

J910248

PLUG

- flywheel housing

1шт.

8

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces A27352 and 253070R1 O-ring) -212, 70 Duro, .859" ID x .139" Thk

1шт.

9

J908832

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - engine, Includes: Ref. 10

1шт.

10

J905427

GEAR

- ring, flywheel

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.

13

L113178

PLUG

BUSHING - reducer, 3/4 inch PT, flywheel housing, if used

1шт.

14

32-1416

COTTER PIN,7/32" x 1"

PIN, SPLIT (COTTER), , If used 7/32" x 1"

1шт.
