Запчасти Case 1155E (2-050) - CAMSHAFT, 6-830 ENGINE, 6T-830 ENGINE (02) - ENGINE

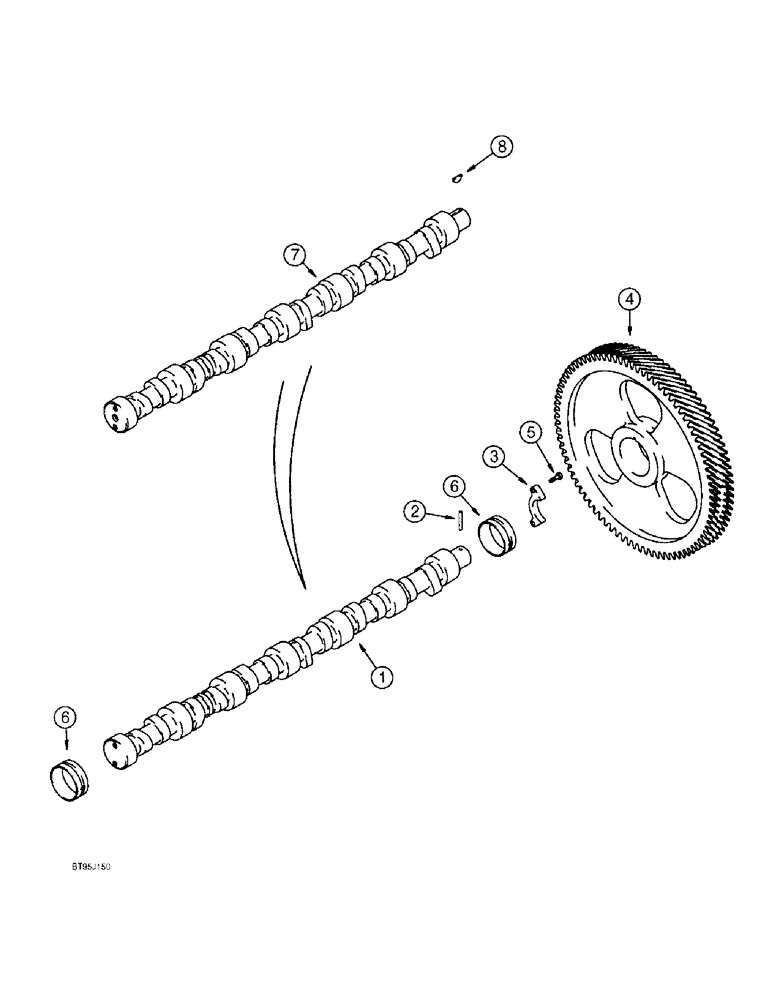

Схема запчастей Case 1155E - (2-050) - CAMSHAFT, 6-830 ENGINE, 6T-830 ENGINE (02) - ENGINE
7
2
4
6
3
6
5
8
1

Артикул

Название

Примечание

Количество

1

J917882

CAMSHAFT

ASSEMBLY - engine, replaces J911236 camshaft, no longer available, order (1) each of Ref. 7 & 8, Includes: Ref. 2

1шт.

1

J923478R

REMAN-CAMSHAFT

Reman for new P/N J917882

1шт.

1

J923478C

CORE-CAMSHAFT

Return Number

1шт.

2

J917883

PIN

- dowel, gear, replaces J904485 pin, if used

1шт.

3

J927155

SUPPORT

- thrust, camshaft, replaces J901761 and J914641 support

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J917328

GEAR

- camshaft, replaces J907677 gear

1шт.

6

J901685

BUSHING

- camshaft

7шт.

7

J924471

CAMSHAFT

- engine

1шт.

7

J923478R

REMAN-CAMSHAFT

Reman for new P/N J924471

1шт.

7

J923478C

CORE-CAMSHAFT

Return Number

1шт.

8

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Replaces J902332 key, if used #6, 5/32" x 5/8", HT

1шт.

Выбрано товаров: 12
