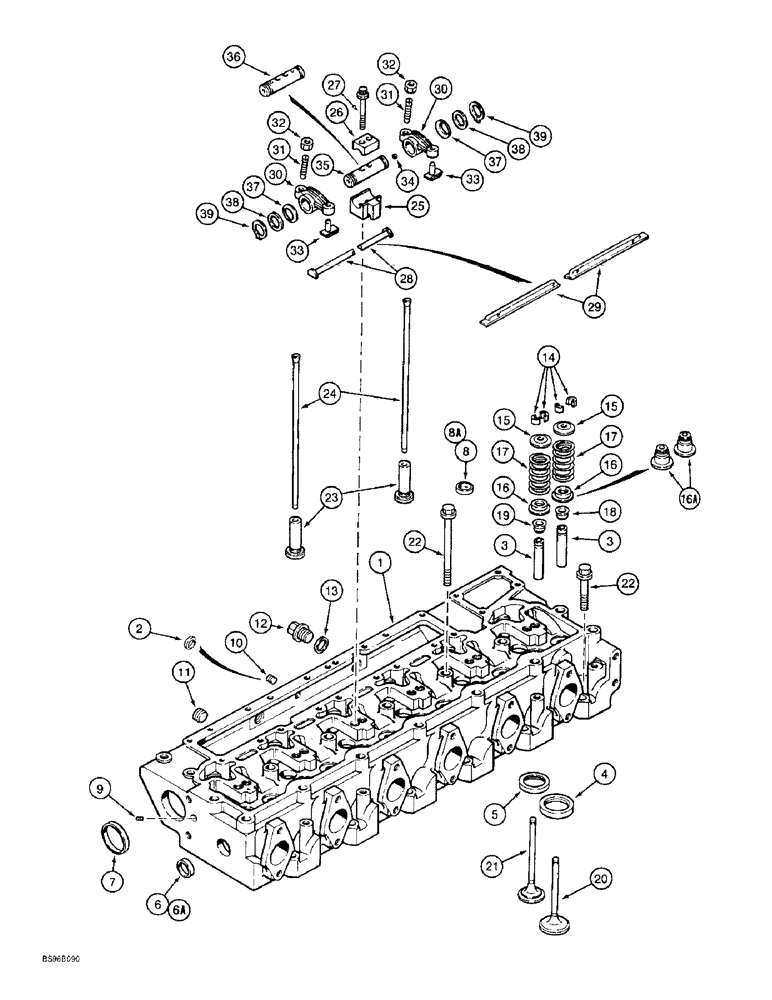

Запчасти Case 1155E (2-044) - CYLINDER HEAD AND VALVE MECHANISM, 6-830 ENGINE, 6T-830 ENG (02) - ENGINE

JR925644

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, replaces JR913111 remanufactured head assembly

1шт.

JC913111

HEAD (CYLINDER)

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

J925644

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, replaces J913111 and J917768 head assembly, Includes: Ref. 1 - 22

1шт.

1

J911287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, without valves, new, no longer available, order J920026 head assembly, Includes: Ref. 2 - 8A

1шт.

1

J920026

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves, replaces J919919 head assembly, no longer available, for service order J925644 head assembly, Includes: Ref. 2 - 8A

1шт.

2

J912900

PLUG

- expansion, 24 mm, used on J917768 and J925644 heads

1шт.

3

J923564

VALVE GUIDE

GUIDE - valve stem, replaces J901187 guide

12шт.

4

J924582

INSERT

- seat, intake valve, replaces J905861 and J908830 insert

6шт.

4

J925468

SEAT, VALVE

INSERT - seat, intake valve, 0.254 mm oversize, service repair only, replaces J914839 insert

6шт.

The oversize valve insert is not part of the cylinder head assembly and must be ordered separately.

1шт.

4

J925470

SEAT, VALVE

INSERT - seat, intake valve, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the cylinder head assembly and must be ordered separately.

1шт.

5

J929005

INSERT

- seat, exhaust valve, replaces J904716, J904388, and J924583 insert

6шт.

5

J929006

INSERT

- seat, exhaust valve, 0.254 mm oversize, replaces J914836 and J925469 insert, service repair only

6шт.

The oversize valve insert is not part of the cylinder head assembly and must be ordered separately.

1шт.

5

J929007

INSERT

- seat, exhaust valve, 0.508 mm oversize, replaces J925471 insert, service repair only

6шт.

The oversize valve insert is not part of the cylinder head assembly and must be ordered separately.

1шт.

6

A77530

PLUG

- expansion, 30 mm O.D., used on J913111 head assembly

1шт.

6a

J920443

PLUG

- expansion, 30 mm O.D.

1шт.

7

A77782

PLUG

- expansion, 58 mm O.D., replaces J900965

2шт.

8

A77590

PLUG

- expansion, used on J913111 head assembly

5шт.

8a

41-1616

PLUG,Cup, 1", Stainless

Replaces A77539 Cup, 1", Stainless

5шт.

9

A77534

PLUG

- hex, 1/16 inch PT

1шт.

10

A77428

PLUG

- hex socket, 1/4 inch PT

1шт.

11

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

12

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5, replaces J904386

2шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

14

J901177

VALVE

KEEPER - valve

24шт.

15

J912976

RETAINER

- valve spring, replaces J907990 retainer

12шт.

16

J901178

GUIDE

- valve spring, no longer used, for repairs, order J915707 seal, Ref. 16A

12шт.

16a

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

17

J906412

VALVE SPRING

SPRING, VALVE

12шт.

18

J912550

SEAL

- stem, intake valve, replaces J904579 seal, no longer used, for repairs order J915707 seal, Ref. 16A

6шт.

19

J912549

SEAL

- stem, exhaust valve, replaces J904578 seal, no longer used, for repairs order J915707 seal, Ref. 16A

6шт.

20

J924492

STD INLET VALVE

VALVE - intake, replaces J902253 and J915506 valve

6шт.

21

J921444

STD EXHAUST VALVE

VALVE - exhaust, replaces J902254 valve

6шт.

22

J907233

BOLT

- cylinder head, 150 mm long, used on engines with 6 piston cooling nozzles

14шт.

22

J907234

BOLT

- cylinder head, 70 mm long, used on engines with 6 piston cooling nozzles

12шт.

22

J917728

BOLT

- cylinder head, 160 mm long, used on engines with 12 piston cooling nozzles

14шт.

22

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long, used on engines with 12 piston cooling nozzles

12шт.

23

J925031

TAPPET

- valve, push rod, replaces J907240 tappet

12шт.

24

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

25

J905870

SUPPORT

- shaft, rocker arm

6шт.

26

J901693

CLAMP

- retaining, shaft

6шт.

27

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW, , Replaces J901617 bolt Flg, 12 Pt Hd, M10 x 65, 12.9

12шт.

28

J910911

MANIFOLD

- oil, rocker arm, no longer available, order J919677 manifold, Ref. 29

1шт.

29

J919677

TUBE

- oil, rocker arm

1шт.

30

J901717

ROCKER

ARM ASSEMBLY - rocker, Includes: Ref. 31 & 32

12шт.

31

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

32

425-116

NUT,3/8" - 24, Gr 5

Hex, Replaces A77558 nut 3/8"-24, G5

1шт.

33

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

34

J907555

PLUG

- rocker arm shaft, used with item 35 rocker arm shaft, if used

12шт.

35

J915415

SHAFT

- rocker, replaces J906249 shaft, uses Ref. 39, expansion plug, no longer used, order Ref. 36, J919435 shaft

6шт.

36

J919435

SHAFT

- rocker, sealed with pop rivet, if used

6шт.

37

J906100

SPRING CUP

WASHER - spring

12шт.

38

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, special

12шт.

39

100-1187

SNAP RING,#87, Ext

Ring, Snap, (Replaces B18206) #87, Ext

12шт.
