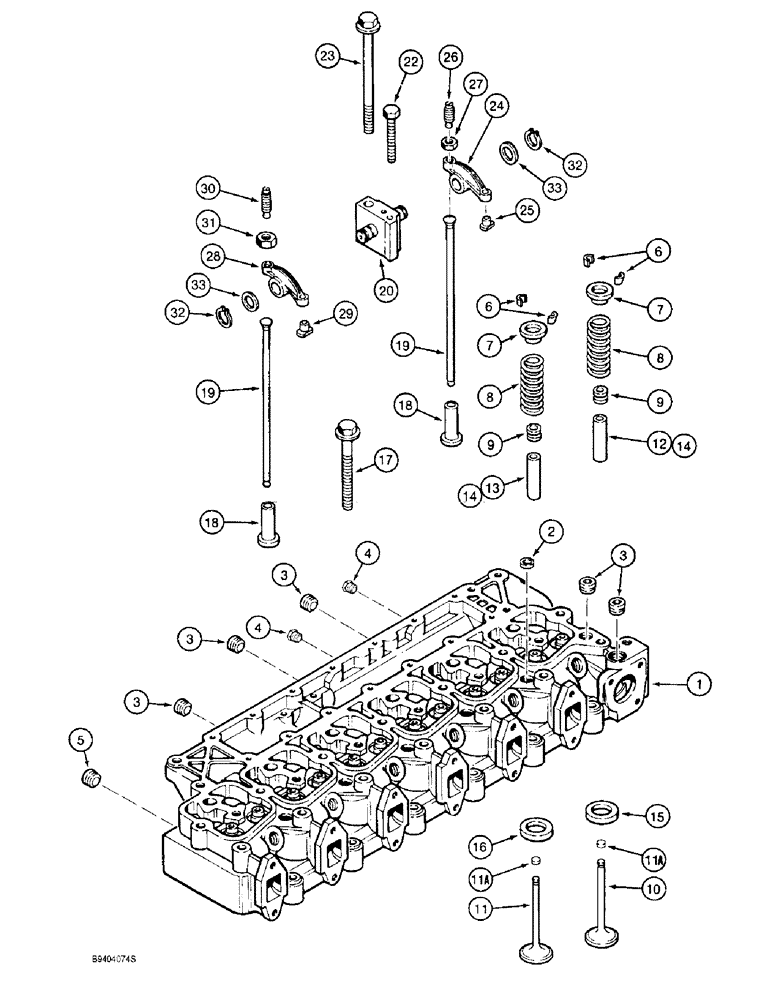

Запчасти Case 1155E (2-040) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 ENGINE (02) - ENGINE

JR910276

HEAD

ASSEMBLY - cylinder, 9 mm injector, with valves, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, no longer available, order J929735 head assembly on this Figure and J919343 inject

1шт.

JC910276

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return head for credit when using a remanufactured assembly

1шт.

JR929735

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, replaces JR920612 head assembly

1шт.

JC929735

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly, replaces JC920612

1шт.

J910276

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 9 mm injector, with valves, new, prior to Engine SN 44566928, no longer available, order J929735 head assembly on this page and J919343 injectors on Figure 3-29A

1шт.

J929735

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, 7 mm injector, replaces J926012 head assembly, Engine SN 44566928 and after

1шт.

1

J913391

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 9 mm injector, without valves, replaces J909949 head assembly, prior to Engine SN 44566928, no longer available, order J929735 head assembly on this Figure and J919343 injectors on Figure 3-29A

1шт.

1

J917287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, without valves, Engine SN 44566928 and after

1шт.

2

A77783

PLUG

- expansion, 21 mm OD, replaces J902606 plug

5шт.

3

A77429

PLUG

- hex socket, 1/2 inch PT (one removed to install temperaturesending unit)

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

6

J900250

SCREW

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J900276

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

12шт.

10

J920867

VALVE

- intake, replaces J901117 valve

6шт.

11

J920868

VALVE

- exhaust, replaces J901607 valve

6шт.

11a

J280911

WEAR PAD

PAD

12шт.

12

J904408

GUIDE

- valve, intake, service repair only, 14 mm O.D.

6шт.

These parts are semi-finished valve guides.

1шт.

13

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm O.D.

6шт.

These parts are semi-finished valve guides.

1шт.

14

J906206

GUIDE

- valve, intake and exhaust, service repair only, 11 mm O.D.

12шт.

These parts are semi-finished valve guides.

1шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

6шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

6шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long, replaces J903938 and J918471 bolt

6шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long, replaces J903939 and J918472 bolt

14шт.

When engine oil heater kit is ordered, Ref. 23, J902425 washer must be ordered also.

1шт.

18

J925031

TAPPET

- valve, push rod, replaces J907240 tappet

12шт.

19

J923262

PUSH ROD

ROD - push, rocker arm, replaces J904679 rod

12шт.

20

J922488

SUPPORT

AND SHAFT ASSEMBLY - rocker arm, replaces J910814 support and shaft assembly and J907555 plug

6шт.

22

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

Replaces 813-8075 bolt Hex, M8 x 75, 8.8

6шт.

23

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long, replaces J903940 and J918437 bolt

6шт.

24

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 25 - 27

6шт.

25

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

26

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

27

425-116

NUT,3/8" - 24, Gr 5

Hex, Replaces A77558 nut 3/8"-24, G5

1шт.

28

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 29 - 31

6шт.

29

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

30

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

31

425-116

NUT,3/8" - 24, Gr 5

Hex, Replaces A77558 nut 3/8"-24, G5

1шт.

32

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

33

J900245

WASHER

- thrust, rocker arm

12шт.
