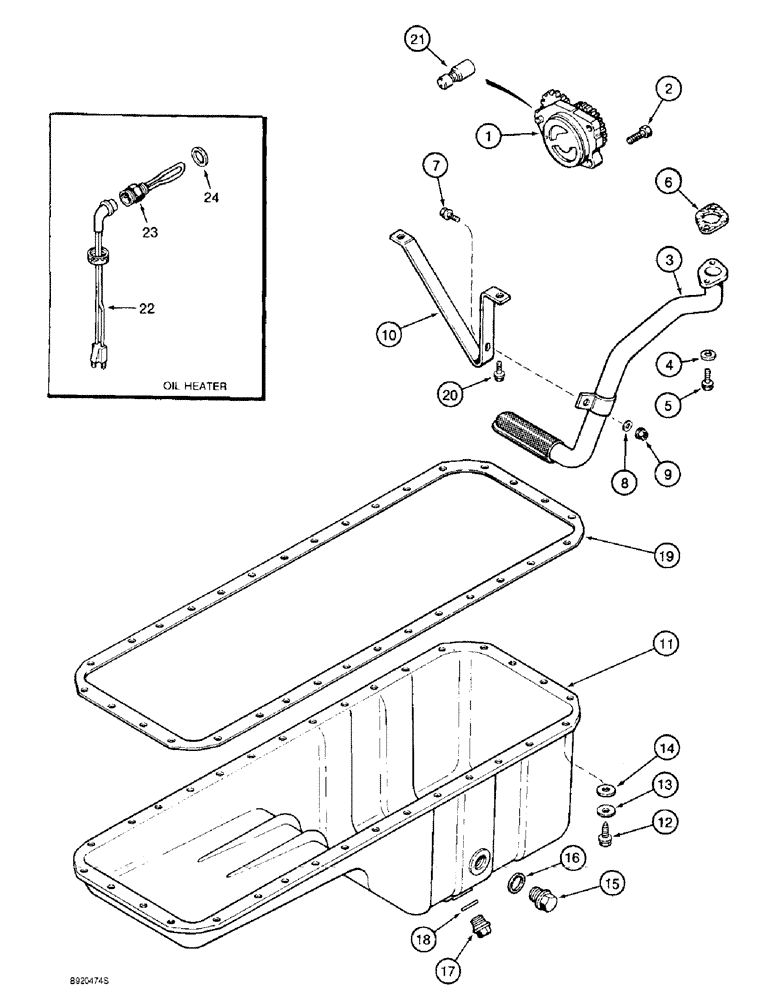

Запчасти Case 1155E (2-030) - OIL PUMP AND OIL PAN, 6-830 ENGINE, 6T-830 ENGINE (02) - ENGINE

JR910066

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY, - engine oil, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, 28 tooth drive gear, prior to Engine SN 44487830, no longer available, order JR926201 pump asse

1шт.

JC910066

PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, prior to Engine Serial Number 44487830

1шт.

JR924644

PUMP

PUMP ASSEMBLY - oil, remanufactured, North America only, no longer available, order J926201 pump assembly, 24 tooth drive gear, Engine Serial Number 44487830 and after, replaces JR921067 pump assembly

1шт.

JC924644

PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, replaces JC921067

1шт.

JR926201

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - oil, remanufactured, North America only, 24 teeth drive gear, Engine Serial Number 44487830 and after, for service order J926201 pump assembly

1шт.

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only; Replaces JC924644

1шт.

1

J918213

PUMP, ENGINE OIL

PUMP, ENIGINE OIL- oil, new, 24 teeth drive gear, Engine SN 44487830 and after, no longer available, order J926210 pump assembly, engines prior to this serial number also order Ref. 25, J918532 plunger on Figure 2-31A, replaces J910066 and J914

1шт.

1

J924644

PUMP, ENGINE OIL

PUMP - engine oil, new, no longer available, order J926201 pump assembly, 24 tooth drive gear, replaces J921067 pump

1шт.

1

J926201

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, 24 teeth drive gear, replaces J924644 pump assembly

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J910787

TUBE

TUBE - with screen, oil suction

1шт.

4

J908738

SPACER

SPACER - mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 30 mm

2шт.

6

J914302

GASKET

GASKET - mounting, oil suction tube, replaces J906202 gasket

1шт.

Part of Gasket Kit, P/N A77679

1шт.

7

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

BOLT, Hex Flg, M6 x 20, 8.8, Full Thd

1шт.

8

J910960

WASHER

WASHER - flat, special

1шт.

9

J906216

FLANGE NUT

NUT - hex flange, special, 6 mm - 1.0

1шт.

10

J927611

BRACKET

BRACE - suction tube, replaces J910785 and J913427 brace

1шт.

11

J914013

PAN, ENGINE OIL

PAN, OIL PAN - oil, replaces J910874 oil pan

1шт.

12

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm, Oil pan to block, Replaces J907860 bolt

32шт.

13

J910266

LOCK WASHER

WASHER - spring, Belleville, turbocharged, if used

32шт.

13

J907537

SPRING WASHER

WASHER - Belleville spring, oil pan bolt, naturally aspirated, if used

32шт.

14

J908316

WASHER

WASHER - flat, special, 9 x 16 x 1 mm

32шт.

15

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, 22 mm - 1.5, heater hole, replaces J904386 plug

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

Part of Gasket Kit, P/N A77679

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, includes Refs. 6, 16, 18 and 19 and on Figure 2-31A

1шт.

17

J900215

PLUG

PLUG - drain, non magnetic, no longer available, order J924147 drain plug

1шт.

17

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, 18 mm - 1.5, drain, replaces J911638 plug

1шт.

18

J920773

SEALING WASHER

WASHER - sealing, drain plug, replaces J900216 washer

1шт.

Part of Gasket Kit, P/N A77679

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77679 gasket kit shown below

1шт.

Part of Gasket Kit, P/N A77679

1шт.

20

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

21

J918532

PLUNGER

PLUNGER - regulator, use with Ref. 1, J918213 pump on engines prior to Engine SN 44487830

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, includes Refs. 6, 16, 18 and 19.

1шт.

A77580

SERVICE KIT

KIT - oil pan heater

1шт.

When engine oil heater kit is ordered, Ref. 23, J902425 washer must be ordered also.

1шт.

22

J905113

CABLE

CABLE - engine block heater

1шт.

23

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

When engine oil heater kit is ordered, Ref. 23, J902425 washer must be ordered also.

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, includes Refs. 6, 16, 18 and 19.

1шт.
