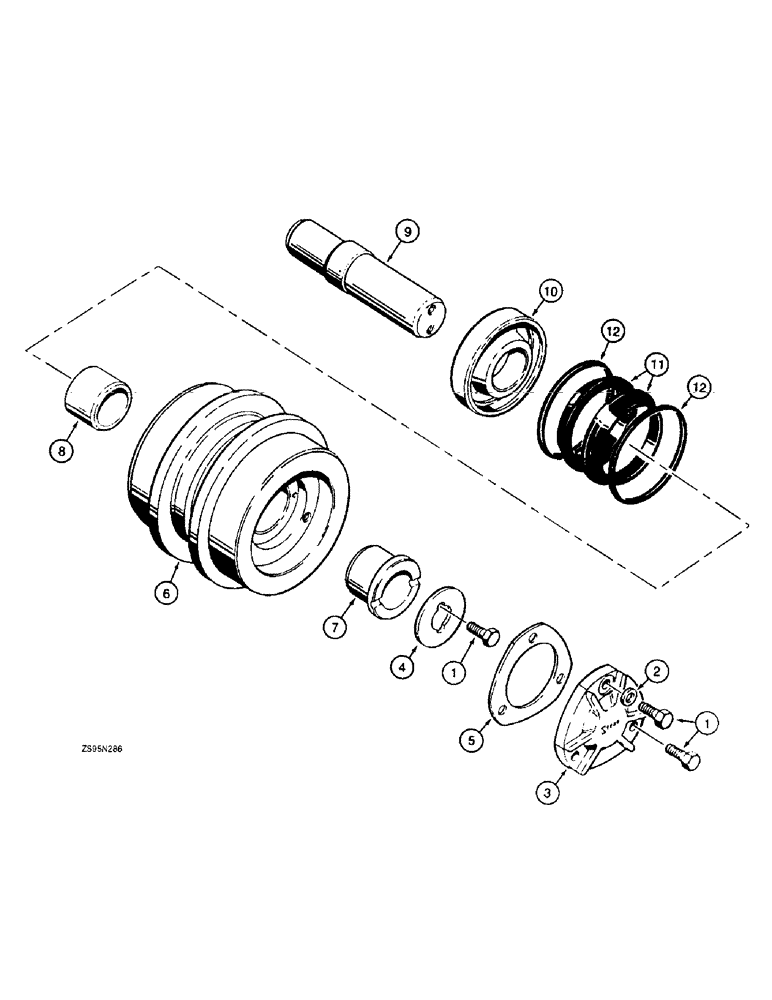

Запчасти Case 1155E (5-18) - CARRIER ROLLER (11) - TRACKS/STEERING

R33594

ROLLER

ASSEMBLY - carrier, track, two used on loader models, four used on all dozer models, Includes: Ref. 1 - 12

2-4шт.

1

813-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm

5шт.

2

D35288

WASHER

- copper

1шт.

3

R33602

CAP

COVER - roller

1шт.

4

R33601

RETAINER

- shaft

1шт.

5

R33606

GASKET

- cover

1шт.

R33596

HUB CARRIER

HUB ASSEMBLY - roller, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - roller

1шт.

7

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- flanged, outer

1шт.

8

R33597

BUSHING

- inner

1шт.

R33600

SHAFT

ASSEMBLY - roller, Includes: Ref. 9 & 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - roller

1шт.

10

R33599

RETAINER

- face seal

1шт.

R33607

SEAL

ASSEMBLY - face, roller, Includes: Ref. 11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

RING - metal

2шт.

12

N6847

O-RING,75mm ID x 8mm Width

- face seal

2шт.
