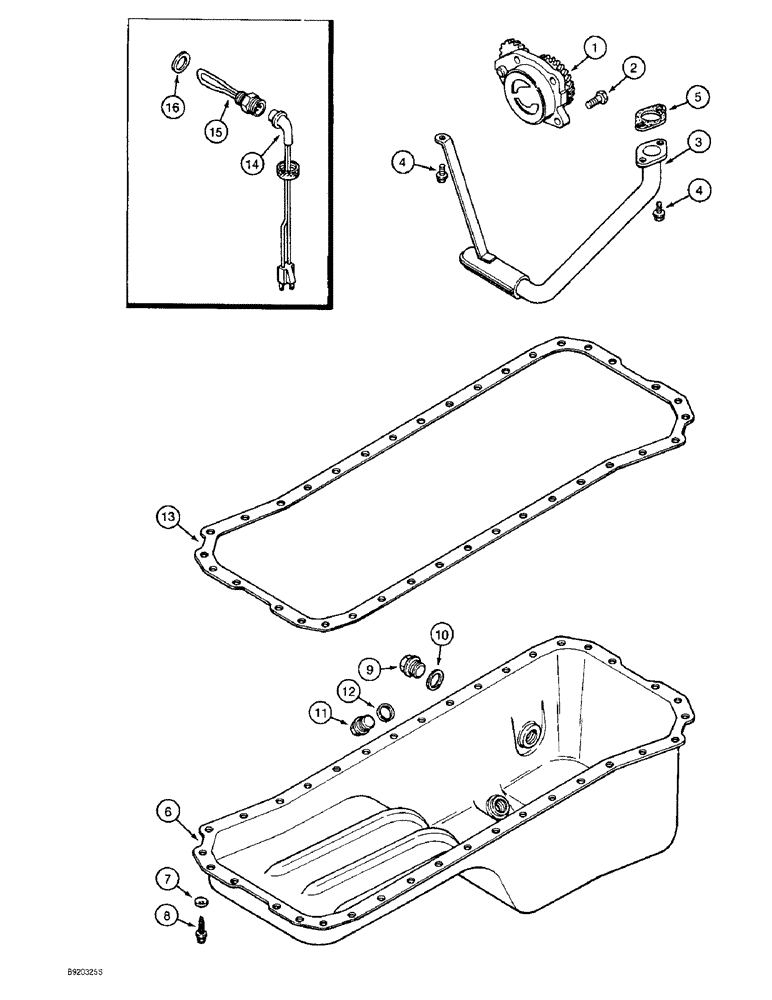

Запчасти Case 1155E (2-028) - OIL PUMP AND OIL PAN, 6T-590 ENGINE (02) - ENGINE

JR906414

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP ASSEMBLY - oil, remanufactured, North America only, prior to Engine SN 44511034, component parts shown on this Figure do not apply to the remanufactured assembly, no longer available, order JR926203 pump

1шт.

JC906414

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, prior to Engine SN 44511034

1шт.

JR926203

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP - oil, remanufactured, North America only, Engine SN 44511034 and after, component parts shown on this Figure do not apply to the remanufactured assembly, replaces JR918212 and JR924720 remanufactured pump

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, Engine Serial Number 44511034 and after, replaces JC918212 and JC924720

1шт.

1

J914006

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, new, prior to Engine SN 44511034, no longer available, order J926203 pump assembly

1шт.

1

J926203

PUMP, ENGINE OIL

PUMP ASEMBLY - oil, engine, new, Engine SN 44511034 and after, replaces J918212 and J924720 pump assembly

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J909373

TUBE

TUBE, with screen, oil suction

1шт.

4

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm, Replaces J900629 bolt

3шт.

5

J914383

GASKET

GASKET, mounting, oil suction tube, replaces J905468 gasket

1шт.

Part of Gasket Kit, P/N A77676

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL PAN, Engine Oil, replaces J901288 oil pan

1шт.

7

J910266

LOCK WASHER

WASHER, spring, Belleville, replaces J907537 washer, if used

36шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm, Replaces J907860 bolt

36шт.

9

J924148

PLUG,M22 x 1.5

PLUG, hex magnetic, special, 22 mm - 1.5, replaces J904386 plug

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER, sealing, plug

1шт.

11

J900215

PLUG

PLUG, drain, no longer used, order J924147 plug

1шт.

11

J924147

PLUG,M18 x 1.5

PLUG, hex magnetic, special, 18 mm - 1.5, replaces J911638 plug

1шт.

12

J920773

SEALING WASHER

WASHER - sealing, drain plug, replaces J900216 washer

1шт.

Part of Gasket Kit, P/N A77676

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77676 kit shown below

1шт.

Part of Gasket Kit, P/N A77676

1шт.

A77676

GASKET KIT

KIT, Gasket, oil pan, includes Refs. 5, 12, 13

1шт.

A77490

KIT

KIT, heater, engine oil

1шт.

When A77490 kit is ordered, Ref. 16, J902425 washer must be orderd also.

1шт.

14

J905113

CABLE

CABLE, engine block heater

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT - heater, eng oil

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER, sealing, plug, eng oil heater

1шт.

When A77490 kit is ordered, Ref. 16, J902425 washer must be orderd also.

1шт.
