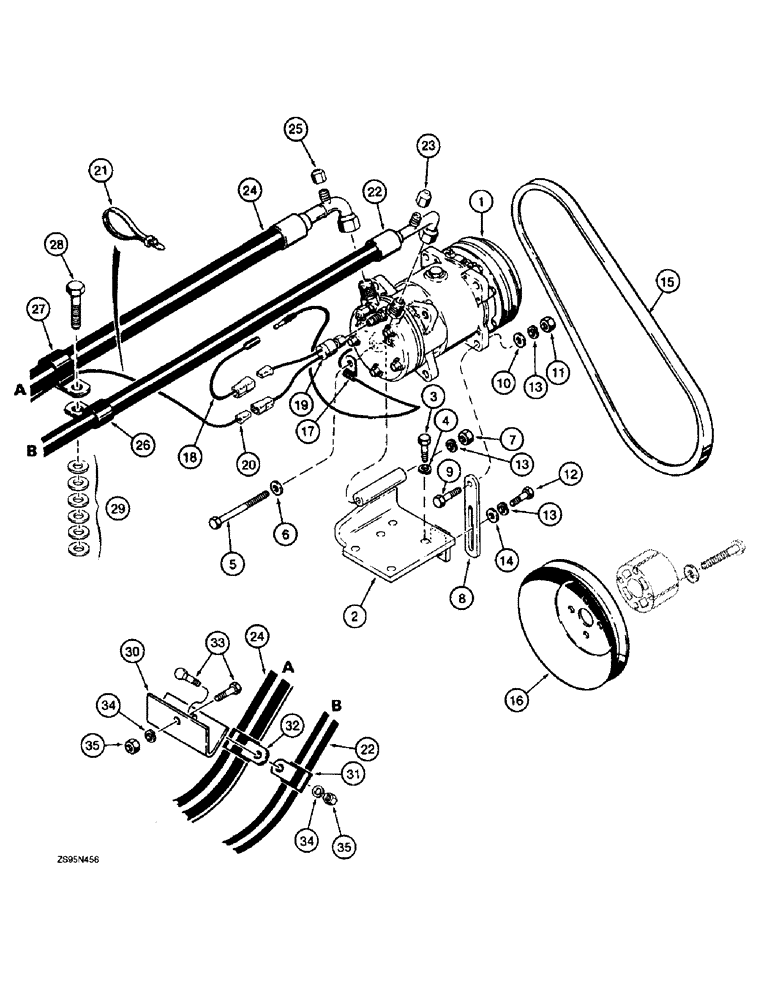

Запчасти Case 1155E (9-116) - AIR CONDITIONING SYSTEM - COMPRESSOR AND CONNECTIONS, DOZER MODELS W/ 6-590 ENG & LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R44120

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-122

1шт.

2

84711C1

SUPPORT

BRACKET - compressor mounting

1шт.

3

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

7

825-1410

NUT,M10, Cl 8

1шт.

8

84716C1

SUPPORT

STRAP - adjusting, compressor

1шт.

9

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

11

825-1410

NUT,M10, Cl 8

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

13

892-11010

LOCK WASHER,M10

3шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

15

S82985

V-BELT,36.70" L

BELT , Compressor drive 36.70" L

1шт.

16

A189155

PULLEY

- compressor drive

1шт.

17

80049853

YOKE

- compressor wire, P-type, 3/16 inch ID, at lower left-hand mounting hole

1шт.

18

R49638

ELECTRICAL WIRE

WIRE - jumper, compressor

1шт.

19

R48818

IGNITION SWITCH

SWITCH - high pressure

1шт.

20

R49637

ELECTRICAL WIRE

WIRE - compressor to low pressure switch at hose splice fitting

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

1999785C1

HOSE

- 3/4 inch (19 mm) OD x 136 inch (3450 mm) long, compressor supply to condenser, right-hand

1шт.

23

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare, at test fitting on hose

1шт.

24

1999791C1

HOSE

- 1 inch (24 mm) OD x 135-7/8 inch (3400 mm) long, evaporator core return to compressor, left-hand

1шт.

25

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare, at test fitting on hose

1шт.

26

49891

CLAMP

- P-type, 1 inch ID, right-hand hose

1шт.

27

D40471

CLAMP

- P-type, left-hand left-hand hose

1шт.

28

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

29

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

6шт.

30

R52541

SUPPORT

BRACKET - hose clamp mounting, at seat and tank frame, Dozer models with 6-590 engine only

1шт.

31

R21385

CLAMP

- hoses, P-type, 15/16 inch ID, use on Ref. 22 hose, Dozer models with 6-590 engine only

1шт.

32

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

- hoses, P-type, 1-1/8 inch ID, use on Ref. 24 hose, Dozer models with 6-590 engine only

1шт.

33

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

Dozer models with 6-590 engine only Hex Flg, 3/8"-16 x 1 1/4", G8, Full Thd

2шт.

34

892-11010

LOCK WASHER,M10

Dozer models with 6-590 engine only M10

2шт.

35

425-106

NUT,3/8"-16, Cl 5

Dozer models with 6-590 engine only 3/8"-16, G5

2шт.
