(9-112) - AIR CONDITIONING SYSTEM - INSIDE CAB ROOF, EVAPORATOR CORE MOUNTING & DRAIN HOSES

Запчасти Case 1155E (9-112) - AIR CONDITIONING SYSTEM - INSIDE CAB ROOF, EVAPORATOR CORE MOUNTING & DRAIN HOSES (09) - CHASSIS/ATTACHMENTS

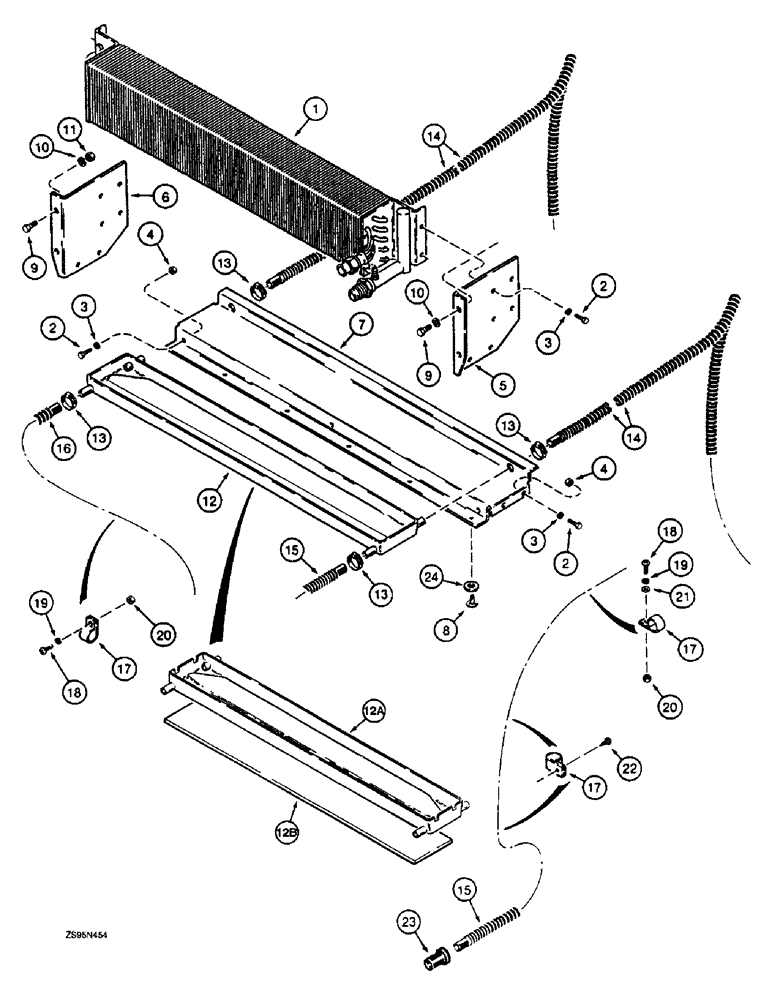

Схема запчастей Case 1155E - (9-112) - AIR CONDITIONING SYSTEM - INSIDE CAB ROOF, EVAPORATOR CORE MOUNTING & DRAIN HOSES (09) - CHASSIS/ATTACHMENTS
14
18
6
3
13
4
4
2
11
23
5
1
2
12a
13
22
15
12
10
14
18
7
20
21
12b
17
13
2
19
3
19
15
20
9
8
10
24
17
3
9
16
17
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F44712

CORE

- evaporator

1шт.

2

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

15шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

15шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

7шт.

5

R52820

SUPPORT

BRACKET - evaporator core and pan mounting, right-hand

1шт.

6

R52821

SUPPORT

BRACKET - evaporator core and pan mounting, left-hand

1шт.

7

R51714

SUPPORT

- pan

1шт.

8

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self tapping, pan Phillips, No. 10-16 x 3/4 "

9шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, LH bracket only

2шт.

12

F44731

PAN

- condensation, no longer used, for service order 1971366C2 pan and 1974623C1 foam (items 12A and 12B)

1шт.

12a

1971366C2

CONTAINER

PAN - condensation

1шт.

12b

1974623C1

FOAM

- open cell, condensation pan, use with item 12A pan

1шт.

13

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia, drain hoses at pan

4шт.

14

REF

INSTRUCTION

HOSE - drain, 40 inch (1016 mm) long, front, cut from F64508 hose, see below

2шт.

15

REF

INSTRUCTION

HOSE - drain, 70 inch (1778 mm) long, rear, right-hand, cut from F64508 hose, see below

1шт.

16

REF

INSTRUCTION

HOSE - drain, 80 inch (2032 mm) long, rear, left-hand, cut from F64508 hose, see below

1шт.

17

L70217

CLAMP

- nylon, drain hoses

9шт.

18

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

5шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

20

225-14110

NUT,#10-24

5шт.

21

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

4шт.

22

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - self-tapping, truss head Phillips, No. 10-16 x 1/2 "

4шт.

23

F44790

VALVE

END - rubber, rear drain hose

2шт.

24

195-81026

WASHER,.266" x 13/16" x .079"

- flat, 17/64 x 13/16 x 3/32 inch, if used

9шт.

F64508

HOSE,0.43" ID x 100' Bulk

1шт.
