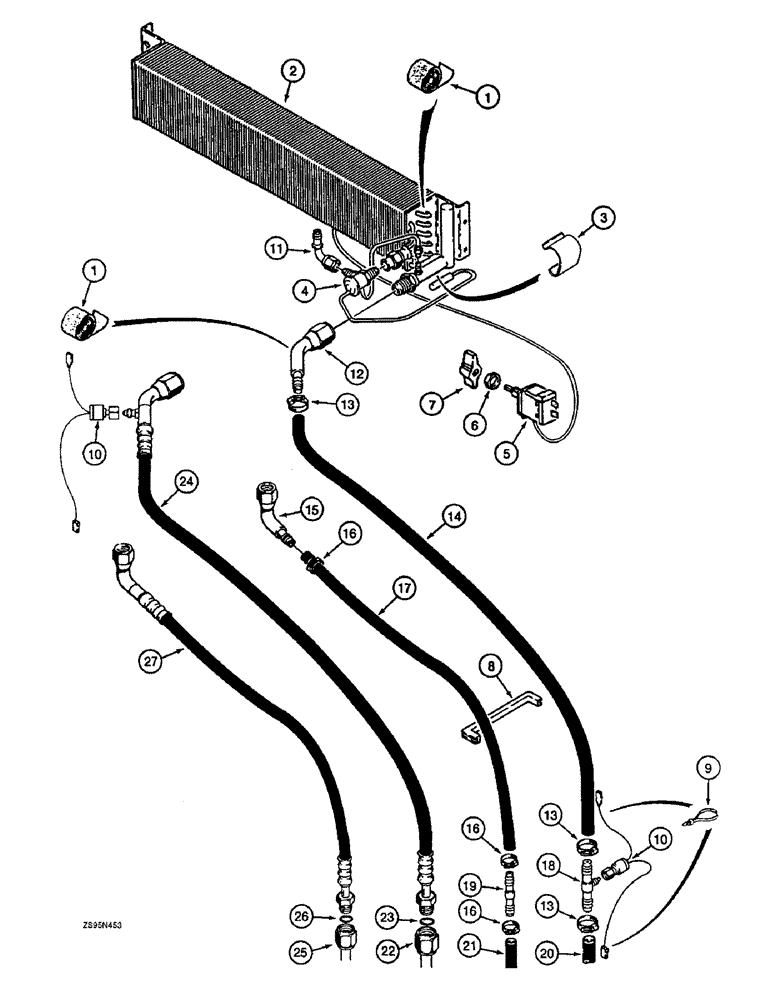

Запчасти Case 1155E (9-110) - AIR CONDITIONING SYSTEM - INSIDE CAB ROOF, EVAPORATOR CORE & CONNECTIONS (09) - CHASSIS/ATTACHMENTS

1

345-37

TAPE

cork, insulating, 2-1/2 x 12 inch (305 mm) long, for exposed metal tubing around ref 2 core, cut from A42902X bulk tape, see below

1шт.

2

F44712

CORE

evaporator

1шт.

3

98156C1

CLAMP

- formed, valve, Serial Range: sensor-core

1шт.

4

F64389

VALVE

expansion

1шт.

5

L73646

SWITCH

temperature control, with thermostat cable

1шт.

6

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

switch, retaining

1шт.

7

L74694

KNOB

- control switch

1шт.

8

REF

INSTRUCTION

TRIM - edge, 7 inch long, hose protection, cut from F42827 trim, see below

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

tie, 15 inch, nylon

2шт.

10

R48819

IGNITION SWITCH

low pressure, to cab wiring harness and compressor

1шт.

11

R45091

ELBOW

FITTING - barb, special, to receiver-drier hose above cab roof, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

12

R53395

PIPE

FITTING - barb, special, from evaporator core, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

13

A65791

COLLAR CLAMP

adjustable, return hose, prior to dozer pin jak0009016 or loader pin jak0009982

3шт.

14

R53950

A/C HOSE,15.88 mm ID x 1500.00 mm, SAE J51 Type A

- Core return, Cut from R48824 hose, See below, Prior to dozer pin jak0009016 or loader pin jak0009982 15.88 mm ID x 1500.00 mm, SAE J51 Type A

1шт.

For completion of air conditioning hose circuit to compressor, see Figures 9-116 - 9-120. For connections above cab roof see Figures 9-108 and 9-110.

1шт.

15

R45088

ELBOW

FITTING - barb, special, to condenser, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

16

A65795

COLLAR CLAMP

adjustable, supply hose, prior to dozer pin jak0009016 or loader pin jak0009982

3шт.

17

R53949

A/C HOSE,10.32 mm ID x 1800.00 mm, SAE J51 Type A

- Condenser supply, Cut from S118832X, See below, Prior to dozer pin jak0009016 or loader pin jak0009982 10.32 mm ID x 1800.00 mm, SAE J51 Type A

1шт.

For completion of air conditioning hose circuit to compressor, see Figures 9-116 - 9-120. For connections above cab roof see Figures 9-108 and 9-110.

1шт.

18

R53396

FITTING

hose splice, with low pressure switch connection, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

19

R53953

FITTING

hose splice, supply hose, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

20

R53952

A/C HOSE,15.88 mm ID x 4000.00 mm, SAE J51 Type A

- Core return, Cut from R48824 hose, See below, Prior to dozer pin jak0009016 or loader pin jak0009982 15.88 mm ID x 4000.00 mm, SAE J51 Type A

1шт.

For completion of air conditioning hose circuit to compressor, see Figures 9-116 - 9-120. For connections above cab roof see Figures 9-108 and 9-110.

1шт.

21

R53951

A/C HOSE,10.32 mm ID x 4300.00 mm, SAE J51 Type A

- Condenser supply, Cut from S118832X hose, See below, Prior to dozer pin jak0009016 or loader pin jak0009982 10.32 mm ID x 4300.00 mm, SAE J51 Type A

1шт.

For completion of air conditioning hose circuit to compressor, see Figures 9-116 - 9-120. For connections above cab roof see Figures 9-108 and 9-110.

1шт.

22

1999791C1

HOSE

135-7/8 inch (3400 mm) long, core return , lower, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Hose, prior to dozer pin JAK0009016 or loader pin JAK0009982

1шт.

24

1999790C1

HOSE

71-1/2 (1815 mm) long, core return , upper, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

25

1999785C1

HOSE

136 inch (3450 mm) long, condenser supply , lower, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

26

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Hose, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

27

1999786C1

HOSE ASSY.

79-1/2 inch (2020 mm) long, condenser supply , upper, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

S118832X

HOSE

bulk, 13/32 (10 mm) x 29/32 (23 mm) x 25 ft (762 cm) long, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

For completion of air conditioning hose circuit to compressor, see Figures 9-116 - 9-120. For connections above cab roof see Figures 9-108 and 9-110.

1шт.

R48824

A/C HOSE,15.88 mm ID x 5500.00 mm, SAE J51 Type A

- Bulk, Prior to dozer pin jak0009016 or loader pin jak0009982 15.88 mm ID x 5500.00 mm, SAE J51 Type A

1шт.

For completion of air conditioning hose circuit to compressor, see Figures 9-116 - 9-120. For connections above cab roof see Figures 9-108 and 9-110.

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inch (2946 mm) long, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.

A42902X

SEALING STRIP

TAPE - cork, bulk, 2-1/2 (64) x 1/8 (3) x 360 inch (9144 mm) long, prior to dozer pin jak0009016 or loader pin jak0009982

1шт.
