(9-106) - AIR COND., SYS, COVERS & MOUNTING ABOVE CAB ROOF, CONDENSER, RECIEVER-DRIER, BLOWER & INNER SEAL

Запчасти Case 1155E (9-106) - AIR COND., SYS, COVERS & MOUNTING ABOVE CAB ROOF, CONDENSER, RECIEVER-DRIER, BLOWER & INNER SEAL (09) - CHASSIS/ATTACHMENTS

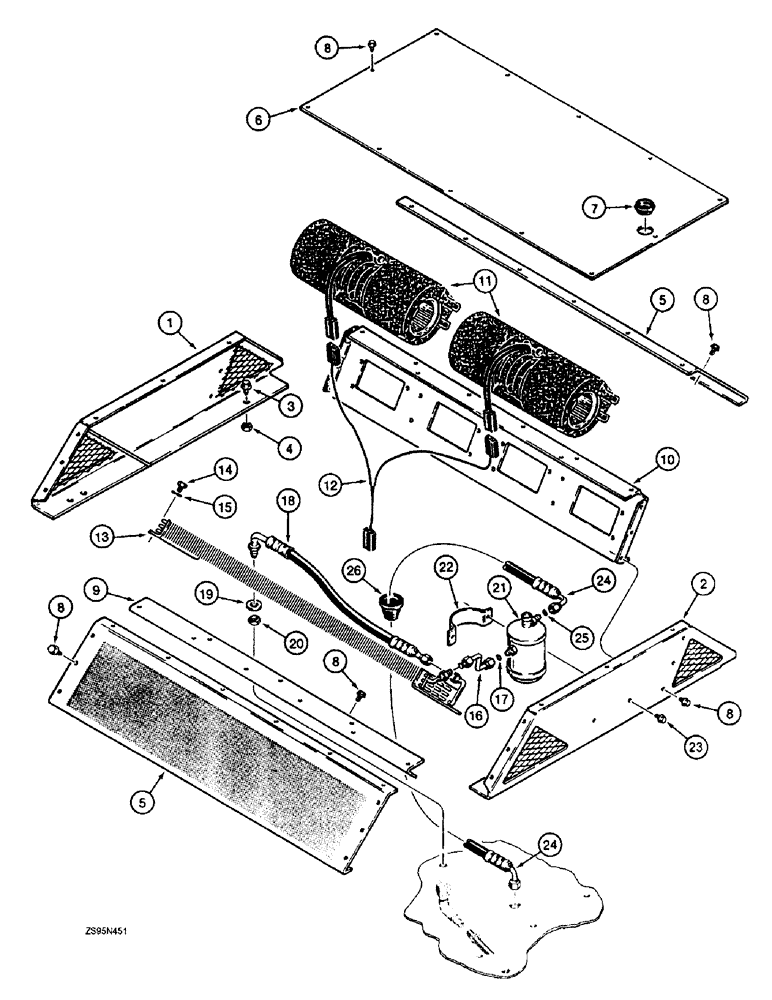

Схема запчастей Case 1155E - (9-106) - AIR COND., SYS, COVERS & MOUNTING ABOVE CAB ROOF, CONDENSER, RECIEVER-DRIER, BLOWER & INNER SEAL (09) - CHASSIS/ATTACHMENTS
7
24
8
6
21
9
22
19
18
4
13
14
17
20
3
23
26
8
25
2
8
16
24
1
8
8
15
5
5
10
11
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R48827

PANEL, SIDE

PANEL - with screens, left hand side

1шт.

2

R49731

PANEL, SIDE

PANEL - with screens, right hand side

1шт.

3

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

4

231-1448

NUT,1/2"-13, GB

- hex, self locking, 1/2 inch NC

4шт.

5

R48829

SIEVE

SHIELD - perforated, front and rear

2шт.

6

R48832

COVER

- air conditioning system

1шт.

7

353-588

PLUG,1 3/4"

- button, plastic, 1-3/4 inch, at receiver-dryer sight gauge

1шт.

8

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

44шт.

9

R48831

SUPPORT

- rear shield mounting

1шт.

10

R49055

SUPPORT

- blower mounting

1шт.

11

REF

INSTRUCTION

BLOWER ASSEMBLY - air conditioning condenser, with molded terminal on A187600 motor, if used, parts list Figure 9-112

2шт.

12

A187767

HARNESS

WIRE - blower motors to cab harness, with molded terminals for A187600 blower motors, if used

1шт.

For the main cab wiring harness see Figure 4-46 - 4-52.

1шт.

13

R49733

CONDENSER

- air conditioning

1шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

1999788C1

TUBE,0.375" OD

- condenser to reservoir

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Tube, Includes: Ref. 17

1шт.

1999787C1

HOSE

- 16-3/8 inch (415 mm) long, to condenser, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE, Serial Range: --condenser

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - roof seal

1шт.

20

NSS

NOT SOLD SEPARAT

NUT - hex, jam, 3/4 inch NF

1шт.

21

1283028C2

TANK

RESERVOIR - receiver-drier

1шт.

22

R49734

MOUNTING CLIP

BRACKET - receiver-drier

1шт.

23

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24

1999789C1

HOSE

- 12-1/4 inch (310 mm) long (310 mm) long, from receiver-drier, Includes: Ref. 25

1шт.

25

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Hose

1шт.

26

R48826

GROMMET

- hose and blower wire through roof, cut 9/16 inch (14 mm) (third ring from the end) when installing

1шт.
