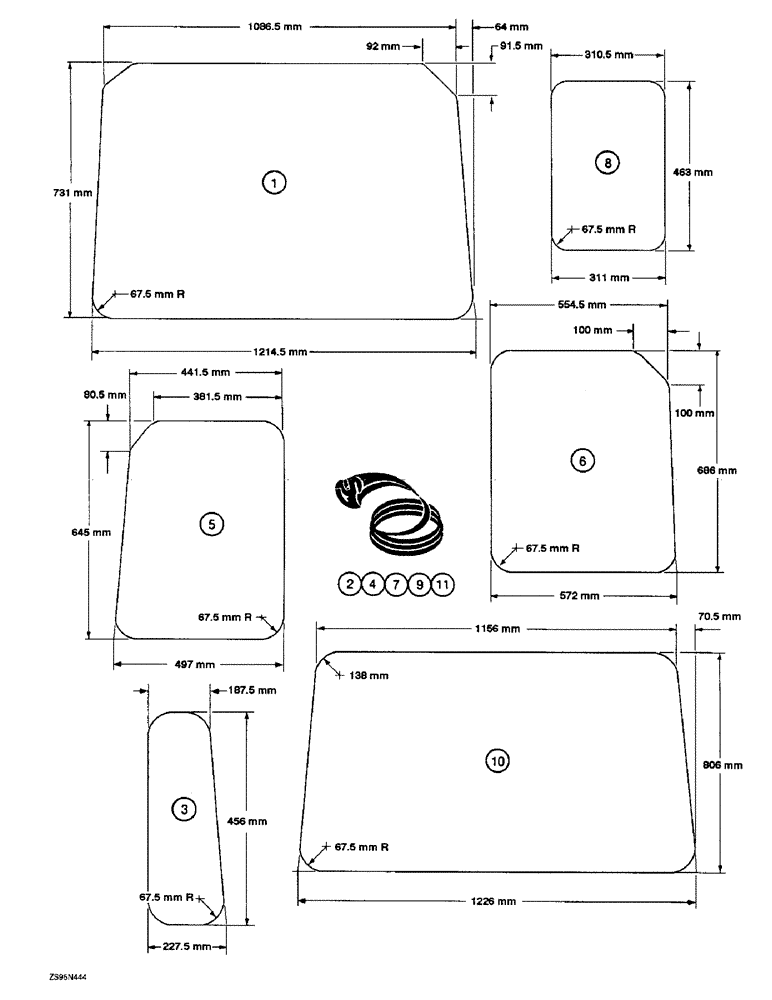

Запчасти Case 1155E (9-092) - ROPS CAB GLASS, METRIC DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

GLASS - front windshield

1шт.

2

REF

INSTRUCTION

SEAL - front windshield glass, 3610 mm long, cut from S118468X, see below

1шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - lower front, dozer and drawbar models only

2шт.

4

REF

INSTRUCTION

SEAL - lower front glass, dozer and drawbar models, each 1270 mm long, cut from S118468X, see below

2шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - side door windows

2шт.

6

NSS

NOT SOLD SEPARAT

GLASS - rear side windows

2шт.

7

REF

INSTRUCTION

SEAL - side door window glass and rear side window glass, each 2420 mm long, cut from S118468X, see below

4шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

8

NSS

NOT SOLD SEPARAT

GLASS - lower door, both sides

1шт.

9

REF

INSTRUCTION

SEAL - lower door glass, both sides, each 1565 mm long, cut from S118468X, see below

2шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

10

NSS

NOT SOLD SEPARAT

GLASS - rear window

1шт.

11

REF

INSTRUCTION

SEAL - rear window glass, 4055 mm long, cut from S118468X, see below

1шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

S118468X

SEAL

- bulk, 600 inch (15240 mm) long

1шт.

All glass to be obtained from local source and must be 6 mm thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.
