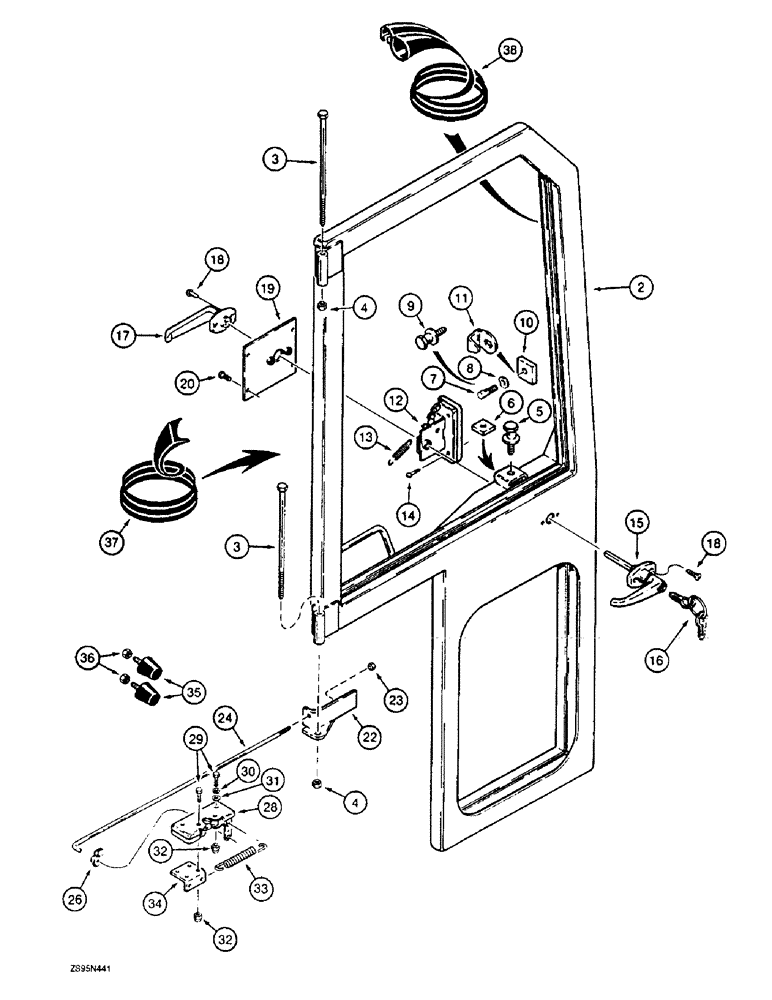

Запчасти Case 1155E (9-086) - ROPS CAB DOORS (09) - CHASSIS/ATTACHMENTS

1

189646A1

DOOR

- left-hand, not shown

1шт.

2

189647A1

DOOR

- right-hand

1шт.

3

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

- hex, 3/8 NC x 10 inch, grade 2

4шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

5

R51754

STRIKER

STRIKER - window latch on door frame

2шт.

6

1340380C1

LARGE PLATE

PLATE - square, tapped, window latch striker retaining

2шт.

7

F45073

PIN

STRIKER - door latch, on cab frame, no longer used, replace with R51754 striker (item 9)

2шт.

9

R51754

STRIKER

STRIKER - door latch, on cab frame

2шт.

10

1340381C1

LARGE PLATE

PLATE - square, tapped, door striker retaining

2шт.

11

R51756

PROTECTOR

GUARD - door striker

2шт.

R55000

LATCH ASSY.

LATCH ASSEMBLY - door, right-hand, rotary, Includes: Ref. 12 & 13

1шт.

R55001

LATCH ASSY.

LATCH ASSEMBLY - door, left-hand, rotary, not shown, Includes: Ref. 12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

LATCH - door

1шт.

13

A180163

SPRING

- extension, right-hand and left-hand latches

1шт.

14

143-101

SCREW,Cross Rec Flat Hd, Csk, 1/4" - 20 x 1", W/ Nylon Insert

8шт.

15

1343909C1

HANDLE

- door, outer, Includes: Ref. 16

2шт.

16

D88772

KEY

- door handle

2шт.

17

D88773

HANDLE

- door, inner

2шт.

18

442-11010

SCREW,Cross Oval Hd, #10-24 x 5/8"

- machine, No. 10 NC x 5/8 inch, Phillips oval head

8шт.

19

N8706

LARGE PLATE

COVER - inner door latch

2шт.

20

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head slotted, No. 10 NC x 3/8 inch

8шт.

21

R53915

LEVER

- door release, left-hand, not shown

1шт.

22

R53916

LEVER

- door release, right-hand

1шт.

23

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

24

R53920

STEM

ROD - door release

2шт.

25

F43349

CLIP

- rod attaching, left-hand, not shown

1шт.

26

F43350

CLIP

- rod attaching, right-hand

1шт.

27

R55003

LATCH ASSY.

LATCH - door retaining, left-hand, not shown

1шт.

28

R55002

LATCH

- door retaining, right-hand

1шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

31

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

8шт.

32

129-884

CROWN NUT,Crown, 1/4"-20

- dome, 1/4 inch NC

8шт.

33

L35748

SPRING

- door latch release

2шт.

34

R54347

SUPPORT

BRACKET - spring retaining

2шт.

35

N7673

BUMPER

- rubber

4шт.

36

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

37

R51710

SEAL

SEAL - around edge of door frame, each 169-5/16 inch (4300 mm) long, cut from N6453 bulk seal, order two or more pieces of N6453, see below

2шт.

38

R51711

SEAL

SEAL - rubber, window frame, each 118-1/8 inch (3000 mm) long, cut from S118469X bulk seal, window frame, attaches to door frame, see below

2шт.

N6453

SEAL,138 Inches Long

- bulk, rubber, 292 inch (7417 mm) long, order two or more pieces as necessary

1шт.

S118469X

SEAL

- bulk, 1-5/32 (29.5) x 11/16 (18) x 300 inch (7620 mm) long

1шт.

345-22

ADHESIVE

- 5 fluid ounces, Scotch Grip No. 1300, for attaching foam pads to metal panels

1шт.

29

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.
