Запчасти Case 1155E (2-022) - OIL FILTER AND COOLER, 6T-590 ENGINE (02) - ENGINE

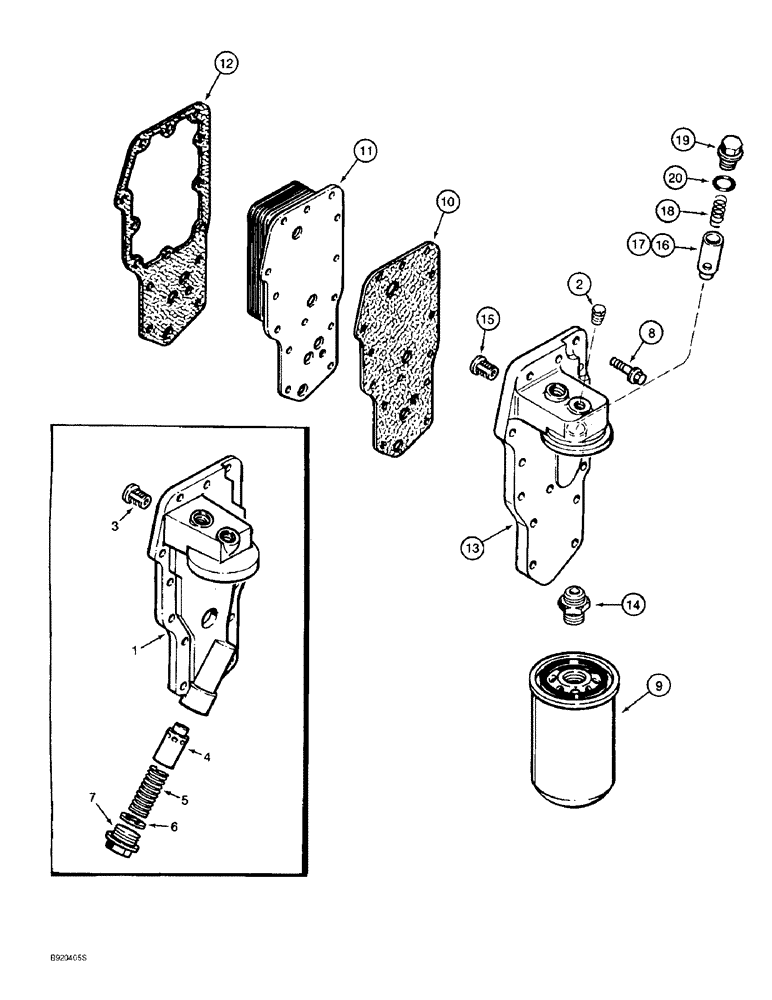

Схема запчастей Case 1155E - (2-022) - OIL FILTER AND COOLER, 6T-590 ENGINE (02) - ENGINE
13
15
19
11
16
10
12
5
8
9
1
20
14
17
18
7
3
4
2
6

Артикул

Название

Примечание

Количество

1

J902295

HEAD ASSY.

HEAD - oil filter and cooler, bottom port, if used

1шт.

2

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT, replaces A77427 plug

1шт.

3

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

4

J909376

PLUNGER

- regulator, pressure, three hole

1шт.

5

J903261

SPRING

- compression, 55 mm free length, 17 coils, no longer used, must replace with J918427 spring, Ref.18, and J918428 plunger, Ref. 17

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

7

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5, pipe, valve, replaces J904386 plug

1шт.

8

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Replaces J900632 bolt

14шт.

9

J908615

FILTER

- engine oil, cartridge

1шт.

10

J929792

GASKET,1.2mm Thk

- filter head, replaces J912638 and J912532 gasket

1шт.

11

J918293

COOLER

CORE - cooler, oil, replaces J911940 core, prior to Engine SN 44511034, no longer available, order J921558 core

1шт.

11

J921558

COOLER

CORE - cooler, oil, Engine SN 44511034 and after

1шт.

12

J926760

GASKET

- oil cooler core, replaces J914387 and J904427 gasket

1шт.

J915243

FILTER COVER

HEAD ASSEMBLY - oil filter and cooler, top port, prior to Engine SN 44475085, no longer available, order J918954 head assembly, Includes: Ref. 13

1шт.

13

J909352

FILTER COVER

HEAD - filter and cooler, prior to Engine SN 44475085, for service order J918954 head assembly

1шт.

13

J918954

HEAD

ASSEMBLY - oil filter and cooler, top port, Engine SN 44475085 and after, if used, Includes: Ref. 14

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

14

J909355

ADAPTER

- filter head

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

15

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

16

J914084

VALVE

PLUNGER - regulator, pressure, one hole, no longer used, must replace with J918428 plunger, Ref. 17, and J918427 spring, Ref. 18

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

17

J918428

PLUNGER

- regulator, pressure, two hole

1шт.

18

J918427

SPRING

- compression, 54 mm free length

1шт.

19

J915787

PLUG

- threaded

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

20

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

Part of Oil Cooler Cover Kit, P/N J915766

1шт.

J915766

KIT

- oil cooler cover, includes Refs. 13, 14, 15, 16, 19 and 20, no longer available, order components separately

1шт.

Выбрано товаров: 30
