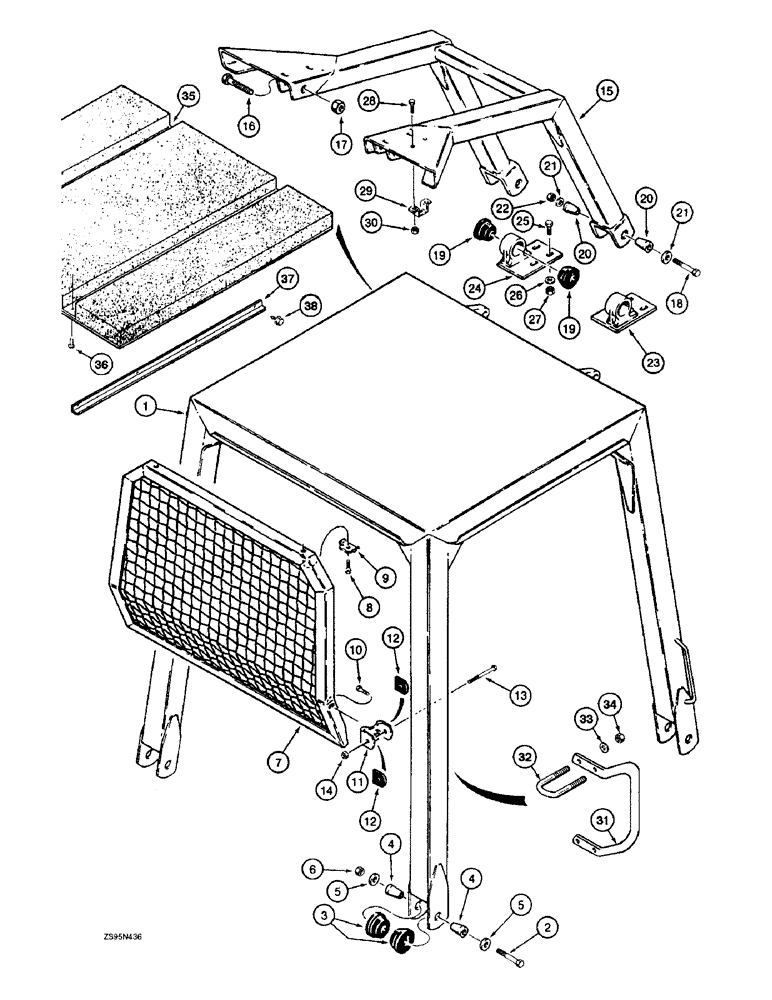

Запчасти Case 1155E (9-076) - ROLL OVER PROTECTIVE STRUCTURE, CANOPY AND BRUSH GUARDS (09) - CHASSIS/ATTACHMENTS

1

R58395

ROPS

CANOPY - ROPS, machinery item, order from Machinery Price List

1шт.

2

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- hex, 3/4 NC x 6-1/2 inch

4шт.

3

F44214

MOUNTING PARTS

INSULATOR - rubber

8шт.

4

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

- rubber, mounting

8шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, special, 3/4 inch, hardened

8шт.

6

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

7

R46656

BAFFLE

SCREEN - rear

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

9

R38226

LOCK WASHER

- special tab locking

2шт.

10

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

11

R46663

ANCHOR

CLAMP - rear screen mounting

2шт.

12

R40074

CUSHION ASSY.

CUSHION - rubber

4шт.

13

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex, 1/2 NC x 5-3/4 inch

2шт.

14

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

15

R41347

PROTECTOR

GUARD - brush sweep

1шт.

16

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

- hex, 1 NC x 4-1/2 inch

2шт.

17

230-41116

NUT,1"-8, GA

NUT - hex, self-locking, 1 inch NC

2шт.

18

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

2шт.

19

F44212

MOUNTING PARTS

INSULATOR - rubber

4шт.

20

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- rubber, insert

4шт.

21

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, special, 3/4 inch, hardened

4шт.

22

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

2шт.

23

R41175

BASE

- brush guard mounting, right-hand on loader models, left-hand on dozer models, dozer mounting shown

1шт.

24

R41176

BASE

- brush guard mounting, left-hand on loader models, right-hand on dozer models, dozer mounting shown

1шт.

25

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

6шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

6шт.

27

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

6шт.

28

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

If used Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

4шт.

29

102181A1

LARGE PLATE

BRACKET - lamp mounting, if used

2шт.

30

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC, if used

4шт.

31

187453A1

HANDLE - grab, rear ROPS canopy frame, LGP models

2шт.

32

108571A1

U-BOLT

- 3/8 inch

4шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

8шт.

34

425-106

NUT,3/8"-16, Cl 5

8шт.

35

180716A1

PAD

HEADLINER - ROPS canopy, vinil covered, if used

1шт.

36

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

RETAINER - black, plastic, 1/4 inch hole size x 7/8 inch head dia

8шт.

37

R58402

ANGLE BAR

BRACKET - headliner retaining

2шт.

38

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self tapping, hex washer head, 1/4 NC x 3/4 inch

8шт.
