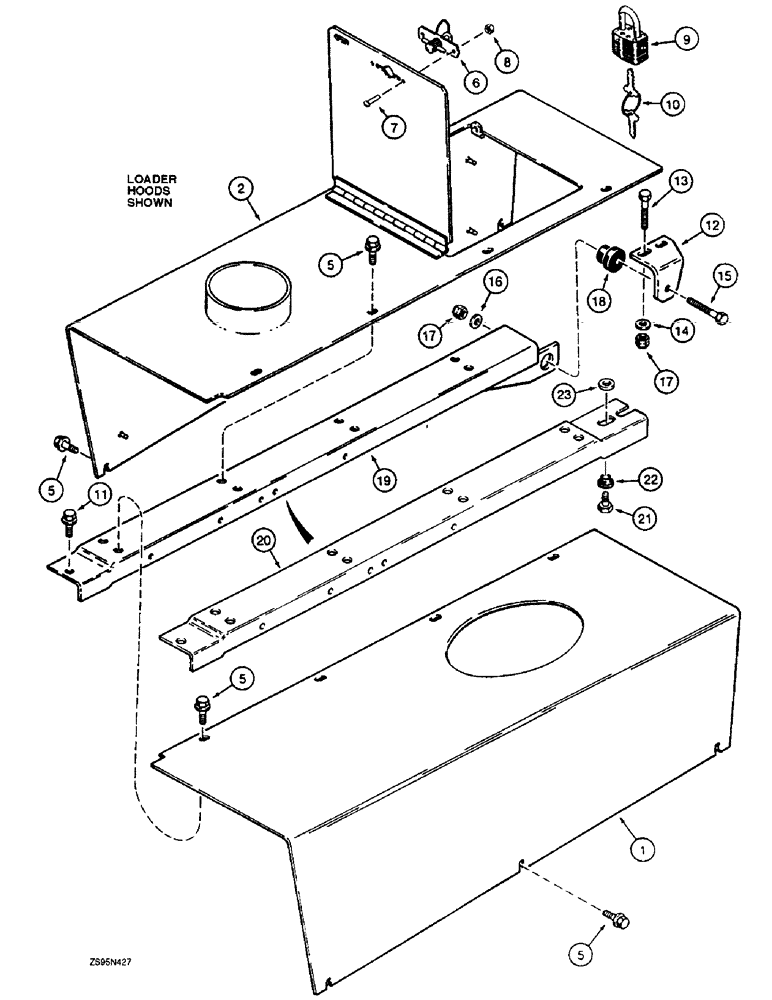

Запчасти Case 1155E (9-060) - HOOD (09) - CHASSIS/ATTACHMENTS

1

R49202

SEPARATOR HOOD

HOOD - right-hand, loader models

1шт.

2

R49199

COWL

HOOD - left-hand, loader models

1шт.

3

R49624

COWL

HOOD - right-hand, all dozers except 62 inch gauge long track and drawbar models, not shown

1шт.

3

R57678

HOOD

- right-hand, 62 inch gauge long track dozers, not shown

1шт.

4

R49621

COWL

HOOD - left-hand, all dozers except 62 inch gauge long track and drawbar models, not shown

1шт.

4

R57677

HOOD

- left-hand, not shown

1шт.

5

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

14шт.

6

L102515

LATCH

- access door, air cleaner

1шт.

7

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

8

F45165

SPECIAL NUT,#10-24

NUT - hex, self-locking, special, No. 10 NC

2шт.

9

D93753

PADLOCK

- air cleaner access cover, includes keys

1шт.

10

R29555

KEY

- for Master padlock only

2шт.

10

D93751

SET OF 2 KEYS

KEYS - (set of 2) for Yale padlock only

2шт.

11

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Models w/ angle bracket bolted to shroud Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

1шт.

12

R53987

SUPPORT

- hood retainer, front, to radiator shroud, models w/ angle bracket, Serial Range: bolted-shroud

1шт.

13

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Models w/ angle bracket bolted to shroud Hex, 1/2"-13 x 1 3/4", G5

2шт.

14

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch, models w/ angle bracket bolted to shroud

2шт.

15

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch, Models w/ angle bracket bolted to shroud

1шт.

16

D25022

WASHER

- flat, special, hardened, models w/ angle bracket, Serial Range: bolted-shroud

1шт.

17

231-1448

NUT,1/2"-13, GB

LOCK - hex, self-locking, 1/2 inch NC, models w/ angle bracket bolted to shroud

3шт.

18

CASL13142

BUSHING

MOUNT - isolator, rubber, models w/ angle bracket, Serial Range: bolted-shroud

1шт.

19

R48285

ANGLE BAR

BRACKET - center, hood mounting, models w/ bracket, Serial Range: bolted-shroud

1шт.

20

R56938

ANGLE

BRACKET - center, hood mounting, models w/ center bracket, Serial Range: bolted-shroud

1шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, models w/ center bracket bolted to shroud

2шт.

22

R54996

SPACER

- mounting, models w/ center bracket, Serial Range: bolted-shroud

2шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, Models w/center bracket bolted to shroud

2шт.
