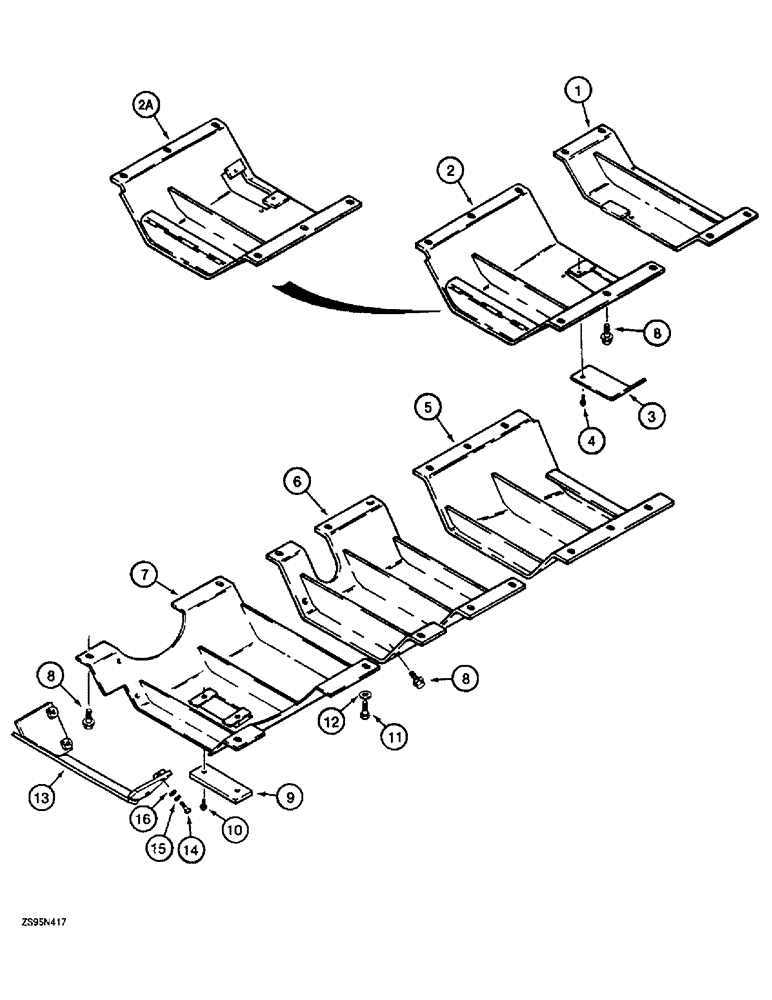

Запчасти Case 1155E (9-040) - UNDERCARRIAGE GUARDS, DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R48349

GUARD ASSY.

GUARD - front

1шт.

2

R48344

GUARD ASSY.

GUARD - engine oil pan, used on all models except 62 inch gauge long track dozer

1шт.

2a

R54943

GUARD ASSY.

GUARD - engine oil pan, used on models with 62 inch gauge long track dozer

1шт.

3

R48345

COVER

- oil drain, engine oil pan guard

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

5

R36545

GUARD ASSY.

GUARD - torque converter

1шт.

6

R52167

GUARD ASSY.

GUARD - at pivot shaft

1шт.

7

R26356

GUARD ASSY.

GUARD - rear, transmission

1шт.

8

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex flange, 5/8 NC x 2 inch, grade 8

24шт.

9

R48231

COVER

PLATE - drain cover, rear transmission guard

1шт.

10

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

11

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, front mounting holes of transmission guard (Ref. 7)

2шт.

12

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

13

R48004

GUARD ASSY.

GUARD - rear, transmission, used on models with Hyster winch

1шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

16

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.
