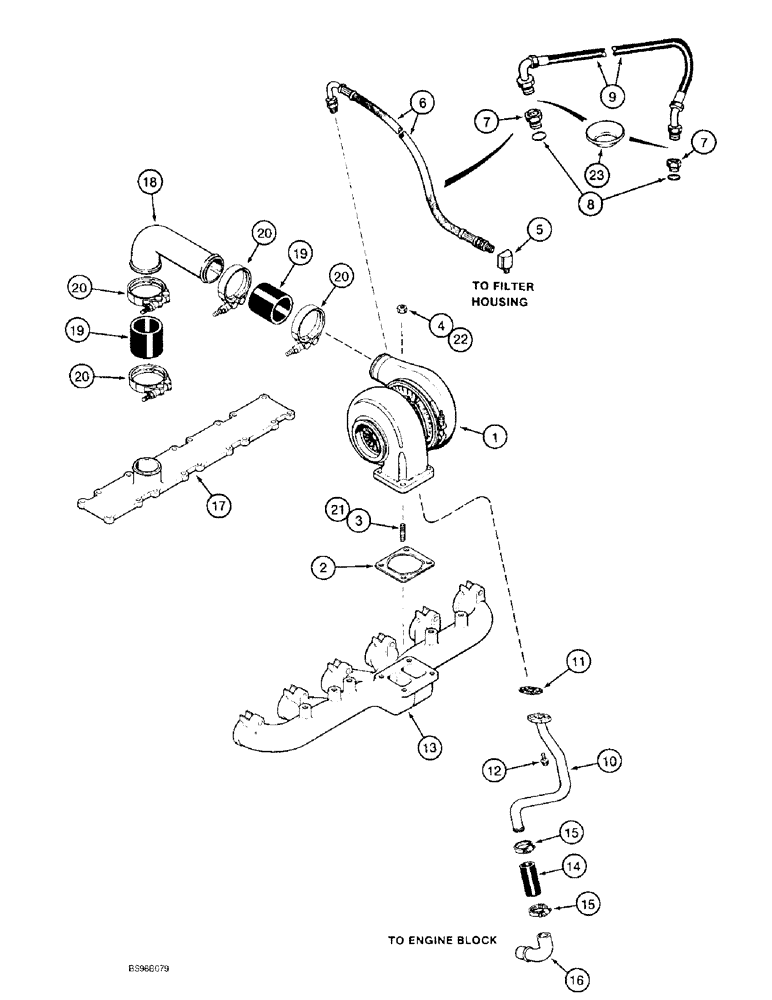

Запчасти Case 1155E (2-016) - TURBOCHARGER SYSTEM, 6T-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see Figure 2-20 for correct assembly and parts lists

1шт.

2

J911941

GASKET

- mounting, turbocharger, replaces J907973 gasket

1шт.

3

J905417

STUD

- turbocharger mounting, no longer used, for service order item 21, J818823 stud

4шт.

4

J901961

NUT

- hex, special, 10 mm - 1.25, no longer used, for service order Ref.22, J818824 nut

4шт.

5

A77588

ELBOW

- 90 degree, prior to Engine SN 44487830

1шт.

6

J909545

HOSE

406 mm (16.0"), Turbocharger Oil Supply, Prior to Engine SN 44487830

1шт.

7

J919687

HYD CONNECTOR

ADAPTER - female hex, special, replaces J916857 adapter, Engine SN 44487830 and after, Includes: Ref. 8

2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

9

J921530

HOSE,9.53mm ID x 385mm L

Turbocharger Oil Supply, Replaces J918556 and J913759

1шт.

10

J917417

TUBE,22.23 mm OD x 281, 141.1 mm L

- drain, replaces J906739 and J913396 tube

1шт.

11

J914388

GASKET

- turbo oil drain tube, replaces J901085 gasket

1шт.

12

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Replaces J900629 bolt

2шт.

13

J929779

MANIFOLD

- exhaust, replaces J906720 manifold

1шт.

14

J903745

LARGE HOSE

HOSE - 3 inch (76 mm) long

1шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Replaces 214-255 clamp #16, 0.81/1.50 Type F Worm

2шт.

16

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

17

J906737

COVER ASSY

COVER - intake manifold

1шт.

18

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

- air, crossover, replaces J906738 tube

1шт.

19

J916529

TRANSMISSION SLEEVE

HOSE - 3 inch (76 mm) long, replaces J904422 hose

2шт.

20

J924386

COLLAR CLAMP

CLAMP - adjustable, special, replaces 214-261 clamp

4шт.

21

J818823

STUD

- turbocharger mounting, used with item 22, J818824 nut only

4шт.

22

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5, used with Ref. 21, J818823 stud only

4шт.

23

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
