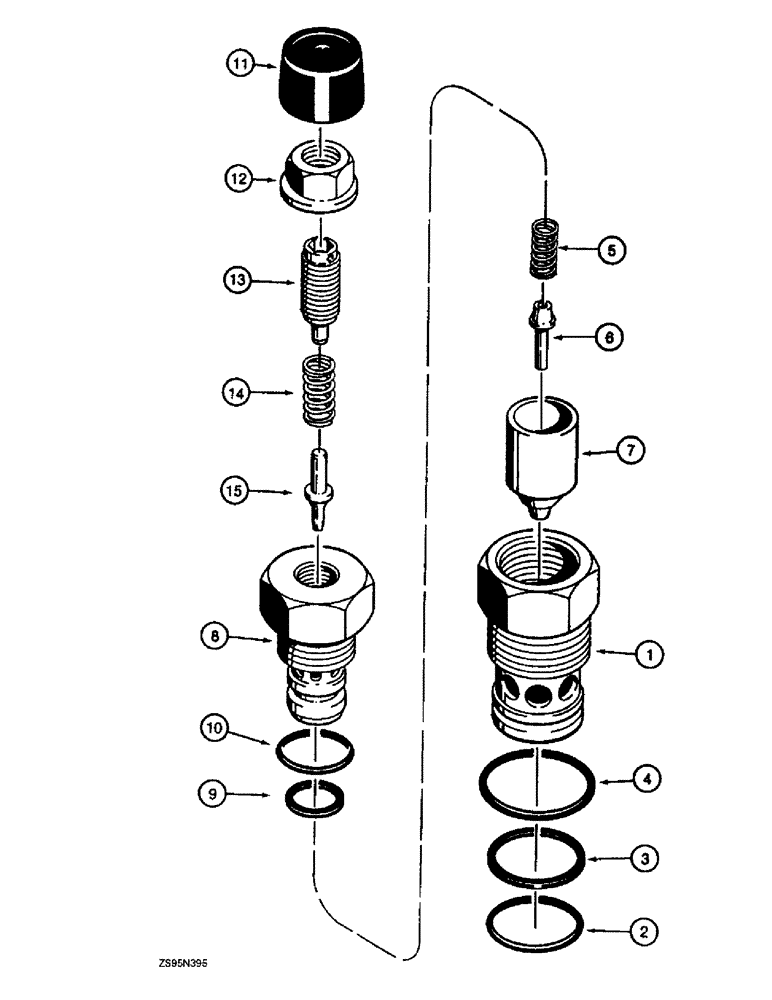

Запчасти Case 1155E (8-130) - CIRCUIT RELIEF AND ANTICAVITATION VALVES (08) - HYDRAULICS

N14029

VALVE

ASSEMBLY - anticavitation and circuit relief, loader lift, loader bucket tilt, clam bucket or ripper sections, pressure setting is pre-set for this application, Includes: Ref. 1 - 15

1шт.

N14030

VALVE

- anticavitation and circuit relief, loader bucket tilt section, pressure setting is pre-set for this application, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Body -021, 90 Duro, .926" ID x .070" Thk

1шт.

3

R31052

O-RING,15/16" ID x 1-1/16" OD x 3/64"

RING - backup, small O-ring

1шт.

4

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk, Body

1шт.

5

N9267

SPRING

- plunger

1шт.

6

N9264

PLUNGER

- valve

1шт.

7

N9263

PISTON

POPPET - anticavitation

1шт.

8

N13269

SEAT, VALVE

SEAT - valve

1шт.

9

N13271

O-RING

SEAL - special, with O-ring

1шт.

10

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Poppet, large -116, 70 Duro, .737" ID x .103" Thk

1шт.

11

N9270

CAP

- valve

1шт.

12

N9269

SPECIAL NUT

- special

1шт.

13

N9266

ADJUSTMENT SCREW,M10 x 1 x 1.14mm

- special, adjusting

1шт.

14

N13270

SPRING

- relief

1шт.

15

N9265

PISTON

POPPET - relief

1шт.
