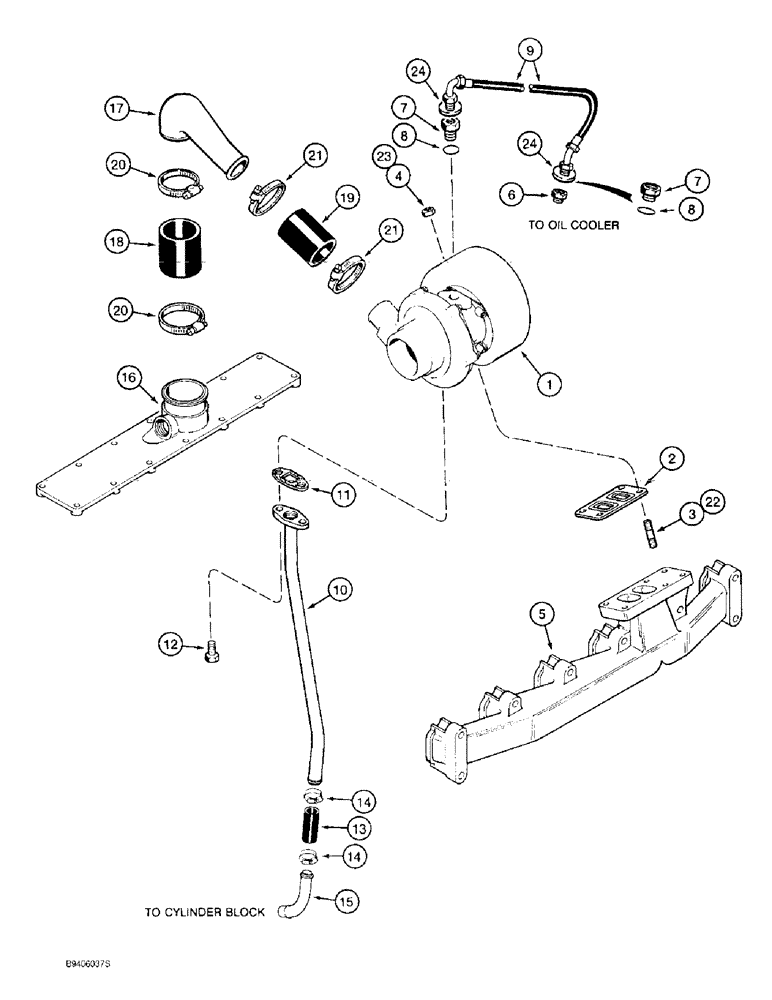

Запчасти Case 1155E (2-014) - TURBOCHARGER SYSTEM, 6T-590 ENGINE (02) - ENGINE

1

J919113

TURBOCHARGER

ASSEMBLY - engine, new, see Figure 2-18 for correct assembly

1шт.

2

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

J905417

STUD

- turbocharger mounting, no longer used, for service order Ref. 22, J818823 stud

4шт.

4

J901961

NUT

- hex, special, 10 mm - 1.25, stud, no longer used, for service order Ref. 23, J818824 nut

4шт.

5

J901683

MANIFOLD

- exhaust, see Figure 2-10, Ref. 1

1шт.

6

A77457

FITTING

ADAPTER - special, oil supply hose to J915243 oil filter head, prior to Engine SN 44475085, see Figure 2-22

1шт.

7

J919687

HYD CONNECTOR

ADAPTER - female hex, special, one used to connect turbocharger oil supply hose to turbocharger, one used on J918954 oil filter head, Engine Serial Number 44475085 and after, replaces J916857 adapter, see Figure 2-22, Includes: Ref. 8

1-2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

9

J918562

HOSE

- 538 mm (21-3/16 inch) long, turbocharger, replaces J909548 hose

1шт.

10

J918579

TUBE

- turbocharger oil drain, upper, replaces J905354 tube

1шт.

11

J914388

GASKET

- turbo oil drain tube, replaces J901805 gasket

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Replaces J900630 bolt

2шт.

13

J903745

LARGE HOSE

HOSE - 3 inch (76 mm) long

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Turbocharger drain hose #16, 0.81/1.50 Type F Worm

2шт.

15

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

16

J904862

COVER

- intake manifold, see Figure 2-10, Ref. 4

1шт.

17

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

TUBE - air intake

1шт.

18

J916529

TRANSMISSION SLEEVE

HOSE - 3 inch (76 mm) long, replaces J904422 hose

1шт.

19

J916166

INTAKE AIR HOSE

HOSE - 2-3/4 inch (70 mm) long, replaces J901804 hose

1шт.

20

J924386

COLLAR CLAMP

CLAMP - adjustable, special, hose retaining, replaces 214-261 clamp

2шт.

21

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

CLAMP - adj, 1-5/16 - 2-1/4 inch dia

2шт.

22

J818823

STUD

- turbocharger mounting, used with Ref. 23, J818824 nut only

4шт.

23

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5, stud, used with Ref. 22, J818823 stud only

4шт.

24

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
