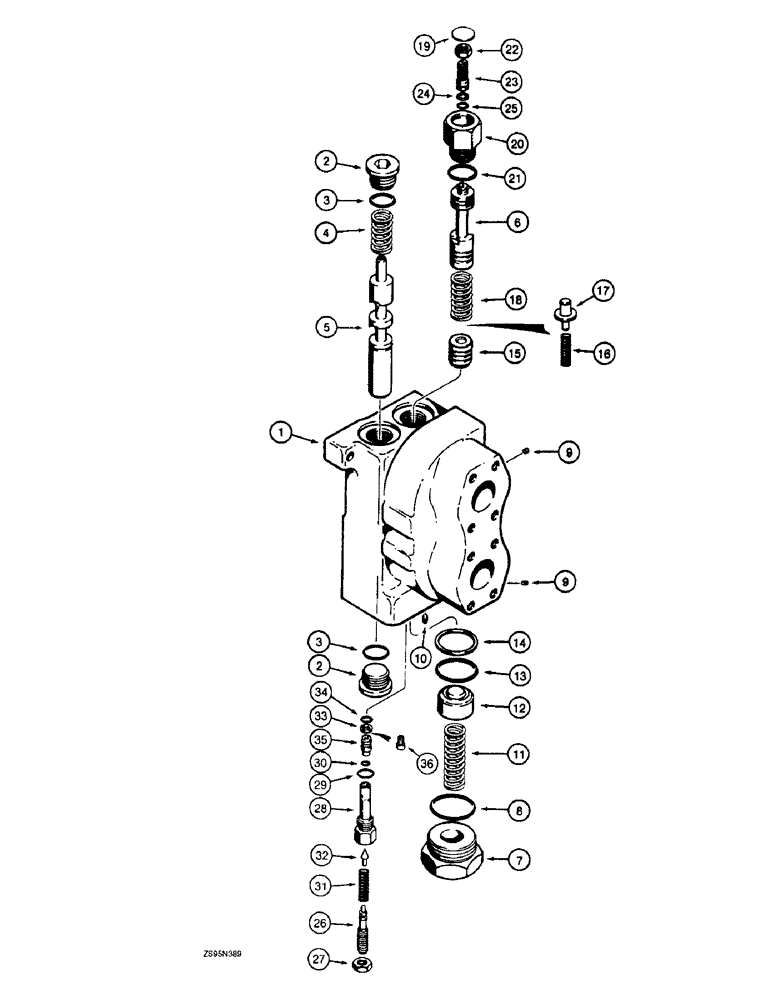

Запчасти Case 1155E (8-116) - INLET AND OUTLET SECTION (08) - HYDRAULICS

N14016

VALVE

SECTION ASSEMBLY - inlet and outlet, ID No. 110, see note below, Includes: Ref. 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 3 Hex Soc, 1 1/16"-12 ORB

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

4

D78464

SPRING

- regeneration spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - regeneration

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - unloading

1шт.

7

D78462

PLUG

- hex head, special, Includes: Ref. 8

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Plug

1шт.

9

D78456

PLUG

RESTRICTOR - flow

2шт.

10

D78455

PLUG

- hex socket, pressure

1шт.

11

N14019

SPRING

- piston

1шт.

12

D78461

PISTON ASSY.

PISTON - unloading valve

1шт.

13

238-5127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

Poppet -127, 70 Duro, 1.424" ID x .103" Thk

1шт.

14

D87079

RING

- backup, poppet O-ring

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - unloading valve

1шт.

16

N14023

SPRING

- unloading valve, small

1шт.

17

N14022

SPACER

- unloading valve

1шт.

18

D78458

SPRING

- unloading spool, large

1шт.

19

D87075

COVER

CAP - dust

1шт.

D87077

PLUG

ASSEMBLY - valve section, unloading spool port, Includes: Ref. 20 - 25

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - plug

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

22

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

24

D87094

BACK-UP RING

- backup, adjusting screw O-ring

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Adjusting screw -011, 90 Duro, .301" ID x .070" Thk

1шт.

N14020

VALVE

ASSEMBLY - main relief section, Includes: Ref. 26 - 36

1шт.

The pressure setting of the repair main relief valve is not preset for application on the 1150E or 1155E Crawler. Adjust the setting according to the service manual.

1шт.

26

D78467

ADJUSTMENT SCREW,3/8" - 24 x 1.953"

- relief assembly

1шт.

27

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - main relief assembly

1шт.

30

238-5007

O-RING,0.07" Thk x 0.145" ID, -7, Cl 5, 75 Duro

-007, 70 Duro, .145" ID x .070" Thk, Body, inner, small

1шт.

31

D78468

SPRING

- plunger

1шт.

32

N14021

PLUNGER

- relief assembly

1шт.

33

L35305

RING

- backup, seat O-ring

1шт.

34

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Wideplunger seat

1шт.

35

NSS

NOT SOLD SEPARAT

SEAT - plunger

1шт.

36

NSS

NOT SOLD SEPARAT

FILTER - main relief assembly, wire-mesh, cylinder-shaped

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Body

1шт.
