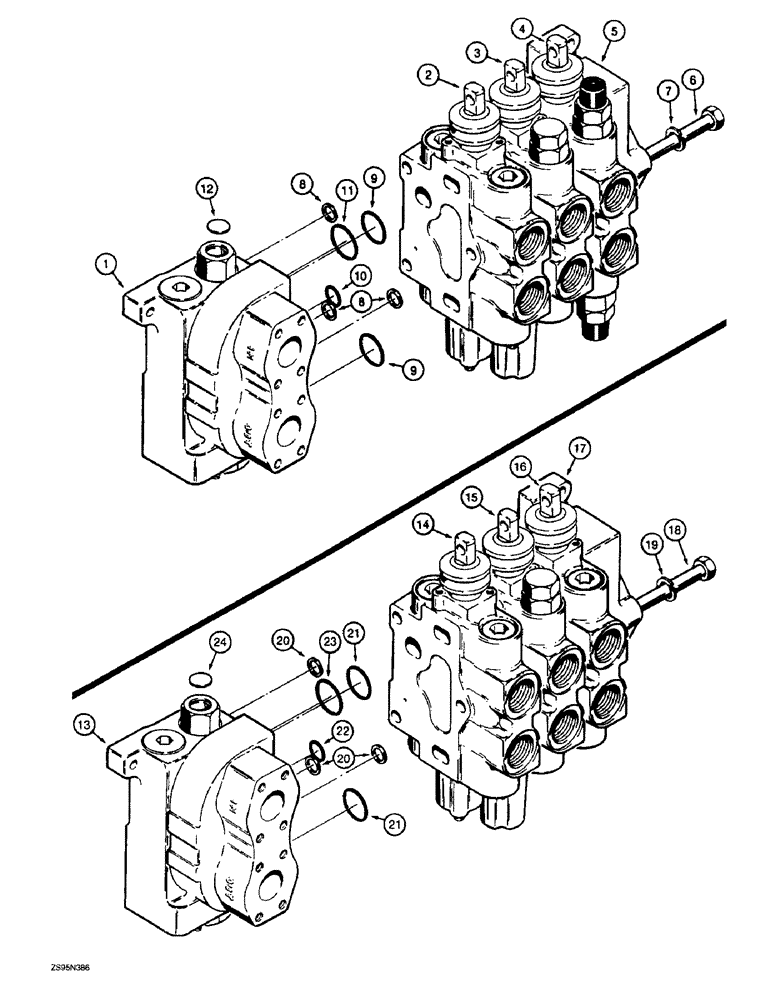

Запчасти Case 1155E (8-110) - THREE SPOOL VALVE, TILT DOZER WITH RIPPER & ANGLE TILT PITCH DOZER (08) - HYDRAULICS

R49491

VALVE

ASSEMBLY - control, three spool, tilt dozer models with ripper, Includes: Ref. 1 - 11

1шт.

1

N14016

VALVE

SECTION ASSEMBLY - inlet and outlet, ID No. 110, parts list Figure 8-116

1шт.

2

N14017

VALVE

SECTION ASSEMBLY - dozer tilt, ID No. 252, parts list Figure 8-128

1шт.

3

N14018

VALVE

SECTION ASSEMBLY - dozer lift, ID No. 316, parts list Figure 8-126

1шт.

4

N14026

VALVE

SECTION ASSEMBLY - ripper, ID No. 251, parts list Figure 8-118

1шт.

5

D87072

COVER ASSY

COVER - end

1шт.

6

D74374

BOLT

- special

3шт.

7

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

8

D77566

SHIM,.0030" Thk

Sections .0030" Thk

12шт.

R37003

SEAL KIT

KIT - seal, Includes: Ref. 9 - 11

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16 inch (32 mm) OD

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 1 inch (25 mm) OD

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 inch (37 mm) OD

1шт.

12

D87075

COVER

CAP - dust, steel

1шт.

R49485

VALVE

ASSEMBLY - control, three spool, ATP dozer models, Includes: Ref. 13 - 23

1шт.

13

N14016

VALVE

SECTION ASSEMBLY - inlet and outlet, parts list Figure 8-116, 3 spool ATP dozer models

1шт.

14

N14017

VALVE

SECTION ASSEMBLY - tilt/pitch, ID No. 252, parts list Figure 8-128, 3 spool ATP dozer models

1шт.

15

N14018

VALVE

SECTION ASSEMBLY - lift, ID No. 316, parts list Figure 8-126, 3 spool ATP dozer models

1шт.

16

N14017

VALVE

SECTION ASSEMBLY - angle, ID No. 252, parts list Figure 8-128, 3 spool ATP dozer models

1шт.

17

D87072

COVER ASSY

COVER - end, 3 spool ATP dozer models

1шт.

18

D74374

BOLT

- special, 3 spool ATP dozer models

3шт.

19

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , 3 spool ATP dozer models 7/16"

3шт.

20

D77566

SHIM,.0030" Thk

Sections, 3 spool ATP dozer models .0030" Thk

12шт.

R37003

SEAL KIT

KIT - 3 spool ATP dozer models, Includes: Ref. 21 - 23

4шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1-5/16 inch (32 mm) OD, 3 spool ATP dozer models

2шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 1 inch (25 mm) OD, 3 spool ATP dozer models

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 1-1/2 inch (37 mm) OD, 3 spool ATP dozer models

1шт.

24

D87075

COVER

CAP - dust, steel, 3 spool ATP dozer models

1шт.
