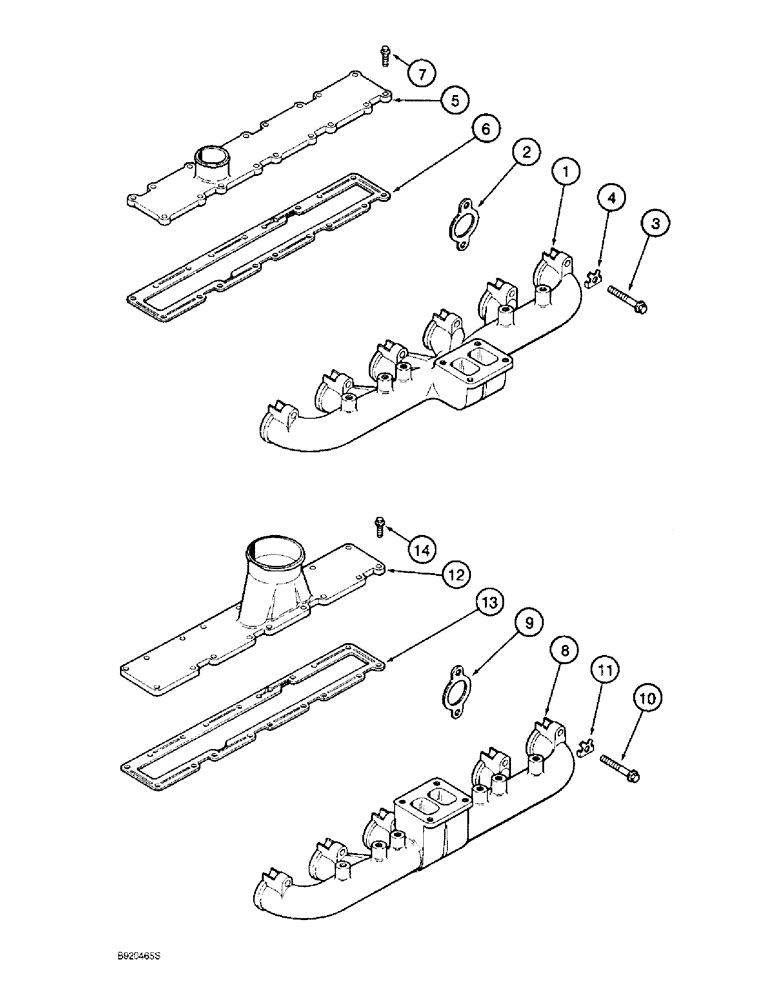

Запчасти Case 1155E (2-012) - MANIFOLDS, 6-830 ENG, 6T-830 ENG EXHAUST 6T-830 ENG (02) - ENGINE

1

J929779

MANIFOLD

exhaust, replaces J906720 manifold

1шт.

2

J929012

GASKET,0.5mm Thk

exhaust manifold, 0.54 mm thick, replaces J906719 and J911942 gasket

6шт.

3

J929537

BOLT

- hex, special, replaces 814-10070 bolt

12шт.

4

J914708

LOCKING PLATE

PLATE, locking

12шт.

A77611

MANIFOLD

KIT - intake , no longer available, order (1) each of Ref. 5 & 6, 6t-830 eng.

1шт.

5

J906737

COVER ASSY

COVER, intake manifold, 6t-830 eng.

1шт.

6

J914311

MANIFOLD GASKET

cover, manifold, replaces J910779 gasket, intake 6t-830 eng.

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Replaces J904341 bolt, Intake 6t-830 eng. Hex Flg Hd, M8 x 1.25 x 25

18шт.

8

J906741

MANIFOLD

exhaust, eng 6-830

1шт.

9

J929012

GASKET,0.5mm Thk

exhaust manifold, 0.54 mm thick, replaces J906719 and J911942 gasket, eng 6-830

6шт.

10

J929537

BOLT

- hex, special, replaces 814-10070 bolt, eng 6-830 exhaust

12шт.

11

J914708

LOCKING PLATE

PLATE, eng 6-830 exhaust

12шт.

A77594

COVER

KIT - manifold, intake, no longer available, order (1) each of Ref. 12 & 13, 6-830 eng

1шт.

12

J907228

COVER

manifold, intake 6-830 eng

1шт.

13

J914311

MANIFOLD GASKET

cover, manifold, replaces J910779 gasket, intake 6-830 eng

1шт.

14

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Replaces J904341 bolt, Intake 6-830 eng Hex Flg Hd, M8 x 1.25 x 25

18шт.
