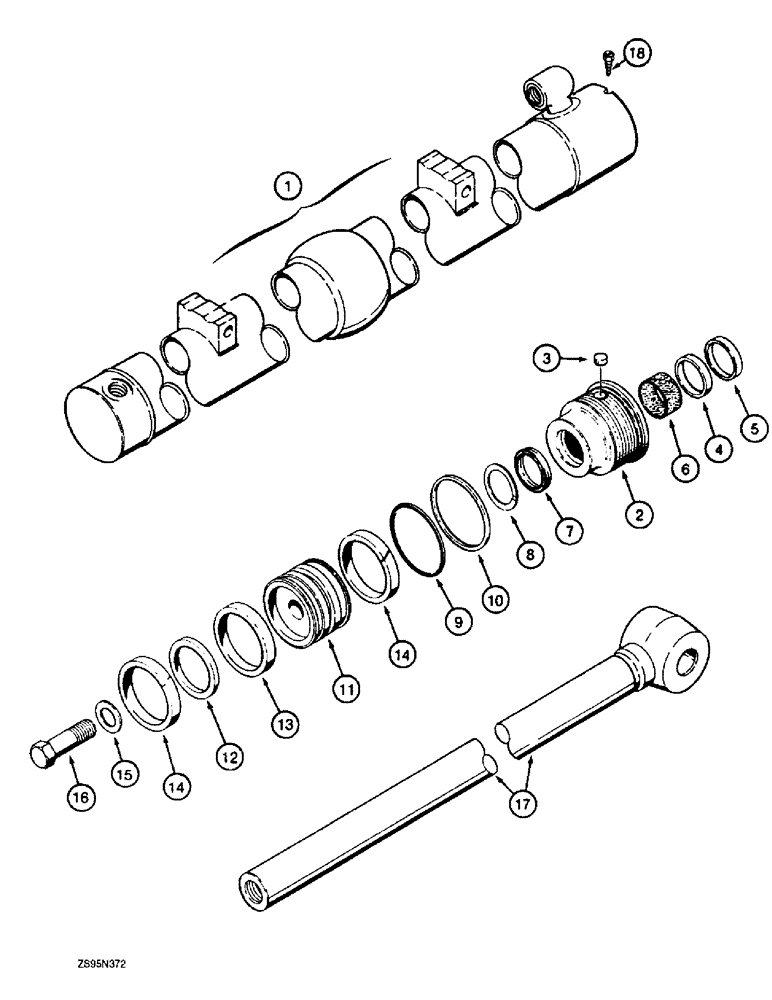

Запчасти Case 1155E (8-074) - G101266 & G104570 DOZER ANGLE CYLINDERS 62" GAUGE STANDARD & 74" GUAGE WIDE TRACK DOZER MODELS (08) - HYDRAULICS

G101266

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer angle, 3 (76) ID x 47-7/8 inch (1165 mm) stroke, 62 inch gauge standard dozer models, Includes: Ref. 1 - 18

2шт.

G104570

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer angle, 3 (76) ID x 51-1/8 inch (1298 mm) stroke, 74 inch gauge wide track dozer models, Includes: Ref. 1 - 18

2шт.

1

G35385

TUBE,52.84" L

- G101266 cylinder

1шт.

1

G104571

TUBE,58.17" L

- G104570 cylinder

1шт.

G104240

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G109460

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit, P/N G109460

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109460

1шт.

7

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, service option - severe heat or cold

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit, P/N G109460

1шт.

9

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Gland -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

Part of Seal Kit, P/N G109460

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Seal Kit, P/N G109460

1шт.

11

G100704

PISTON

- cylinder

1шт.

12

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of Seal Kit, P/N G109460

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit, P/N G109460

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of Seal Kit, P/N G109460

1шт.

15

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special, hardened

1шт.

16

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 NF x 2-1/2 inch, grade 8

1шт.

17

G35389

ROD

- piston, 1-3/4 inch diameter x 56-5/8 inch long, center of eye to threaded end, used with G101266 cylinder

1шт.

17

G104585

PISTON ROD

ROD - piston, 1-3/4 inch diameter x 59-1/2 inch long, center of eye to threaded end, used with G104570 cylinder

1шт.

18

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 ", slotted, If used

1шт.

G109460

GASKET KIT

KIT - seal, includes Refs. 5 through 10 (except G100777), and 12 through 14

1шт.
