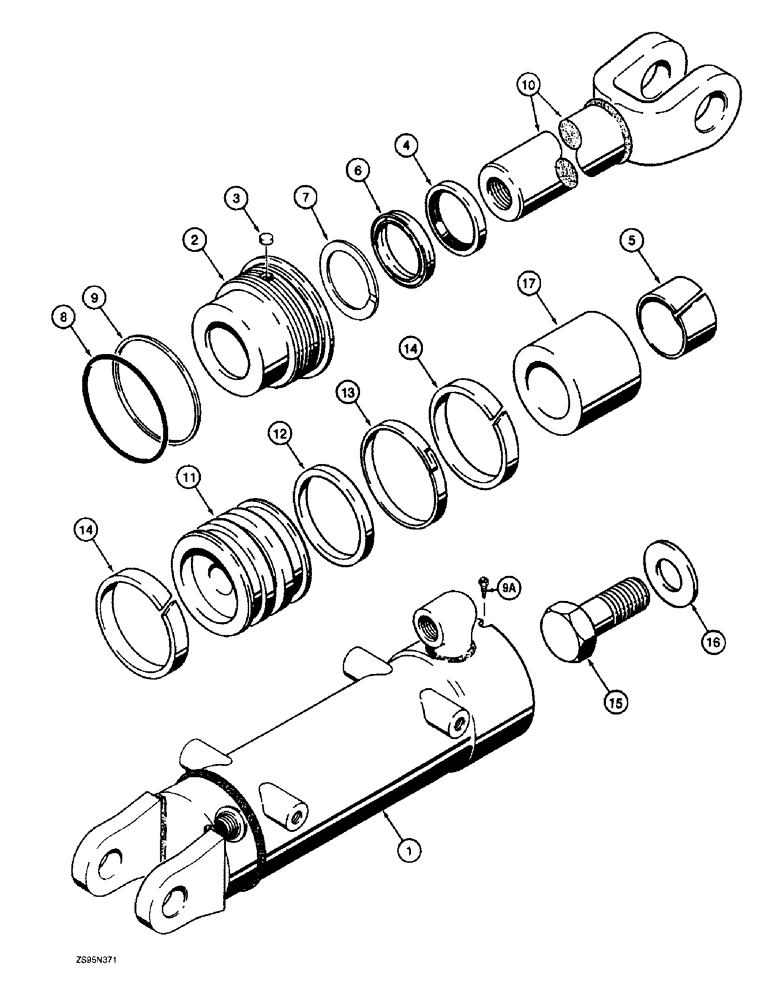

Запчасти Case 1155E (8-072) - G105458 DOZER TILT AND PITCH CYLINDERS, ANGLE TILT PITCH DOZER MODELS (08) - HYDRAULICS

G105458

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer tilt and pitch, 4 (102) ID x 5-3/16 inch (132 mm) stroke, Includes: Ref. 1 - 17

2шт.

1

G105459

TUBE,17.96" L

- cylinder

1шт.

G104941

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G109505

1шт.

5

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit, P/N G109505

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109505

1шт.

6

G100779

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

7

G109086

RING

SEAL - piston rod, narrow

1шт.

Part of Seal Kit, P/N G109505

1шт.

8

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Gland -242, 70 Duro, 3.984" ID x .139" Thk

1шт.

Part of Seal Kit, P/N G109505

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N G109505

1шт.

9

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, hex hd, No. 8 NC x 3/8 ", slotted, If used

1шт.

10

G105466

PISTON ROD

ROD - piston, 2-1/4 inch 57 mm diameter

1шт.

11

G100686

PISTON

- cylinder

1шт.

12

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N G109505

1шт.

13

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N G109505

1шт.

14

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit, P/N G109505

1шт.

15

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex, 1-1/4 NF x 3-1/4 inch, grade 8

1шт.

16

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special

1шт.

17

G34056

BUSHING

SPACER - piston and gland

1шт.

G109505

KIT

- seal, includes Refs. 4 - 9 (except G100779) & 12 - 14

1шт.
