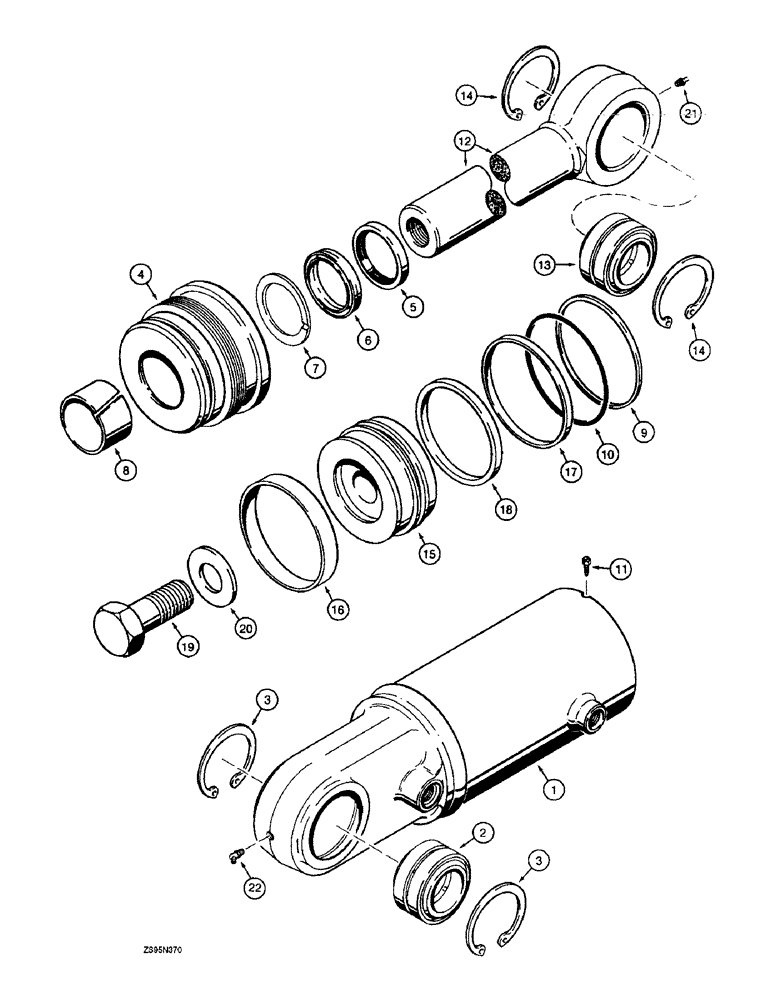

Запчасти Case 1155E (8-070) - G110694 DOZER TILT CYLINDER, LONG TRACK ANGLE TILT DOZER MODELS (08) - HYDRAULICS

G110694

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 119.9mm Stroke

CYLINDER ASSEMBLY - dozer tilt, 5 (127) ID x 4-3/4 inch (120 mm) stroke, Includes: Ref. 1 - 22

1шт.

87377322R

REMAN-HYD CYLINDER

1150E, 1155E, CASE CRAWLER TRACTOR, Both CYLINDER ASSEMBLY - dozer tilt, 5 (127) ID x 4-3/4 inch (120 mm) stroke, Reman for New PN G110694

1шт.

87377322C

CORE-HYD CYLINDER

Return Number

1шт.

1

G109824

TUBE,4.995" ID x 16.14" L

- cylinder

1шт.

2

D23601

HOUSING

BUSHING - self aligning, heavy duty, sealed

1шт.

3

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, , Bushing 3.156", Int, #315

2шт.

4

1543069C1

PACKING GLAND

GLAND - cylinder

1шт.

5

G108713

WIPER,63.45mm ID x 82.58mm OD x 10.03mm Thk

- piston rod, if used

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

6

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

6

G100780

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

7

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

8

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

9

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

10

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Gland -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", slotted

1шт.

12

1346161C1

PISTON ROD

ROD - piston, 63.5 mm diameter, was G110695, Includes: Ref. 13 & 14

1шт.

13

D23601

HOUSING

BUSHING - self aligning, heavy duty, sealed

1шт.

14

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, 3.156", Int, #315

2шт.

15

G110701

JACK PISTON

PISTON - cylinder

1шт.

16

G102090

RING,127mm OD, Ext

- wear

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

- piston, was G102091

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N 1542915C2

1шт.

19

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

20

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch, short

1шт.

1542915C2

SEAL KIT

KIT - seal, includes Refs. 5 - 10 (except G100780), & 16 - 18

1шт.
