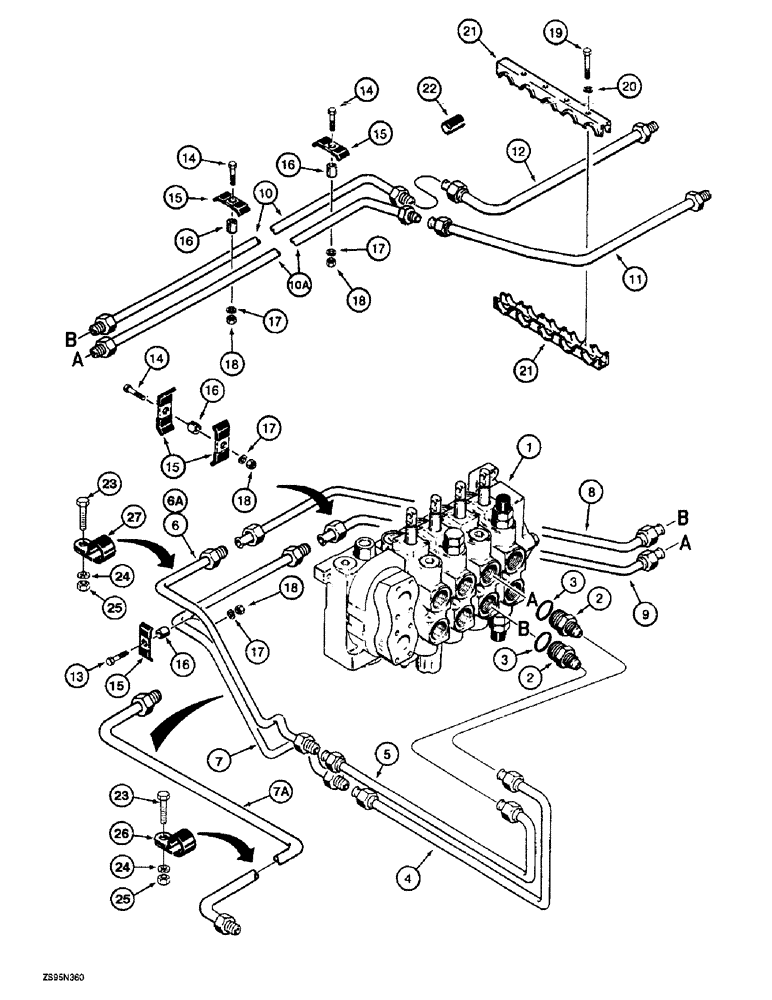

Запчасти Case 1155E (8-048) - DOZER ANGLE HYDRAULIC CIRCUIT, ANGLE TILT PITCH & LONG TRACK TILT DOZER MODELS, VALVE TO GRILLE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components see Figure 8-110 or 8-112

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss, male, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, adapter

1шт.

4

R38265

TUBE,0.625" OD

- at control valve, A port

1шт.

5

R38263

TUBE,0.625" OD

- at control valve, B port

1шт.

6

R38259

TUBE,15.87 mm OD

- from B port, upper

1шт.

6a

180536A1

TUBE

- from B port, upper

1шт.

7

R38261

TUBE,15.87 mm OD

- from A port, lower

1шт.

7a

180534A1

TUBE,15.875 mm OD

- from A port, lower

1шт.

8

R38298

TUBE,0.625" OD x 23.7, 19" L

- from B port, upper

1шт.

9

R38257

TUBE,0.625" OD x 17.34, 16.5" L

- from A port, lower

1шт.

10

R52022

PIPE,0.625" OD

TUBE - from B port, left-hand

1шт.

10a

R52024

PIPE,15.88 mm OD x 1298, 96 mm L

TUBE - from A port, right-hand

1шт.

11

R54631

PIPE,0.625" OD

TUBE - from A port, right-hand outer at grille

1шт.

12

R51984

PIPE,15.88 mm OD x 128, 366 mm L

TUBE - from B port, left-hand outer at grille

1шт.

13

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

3шт.

15

D40236

CLAMP

- tubes

5шт.

16

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- tubes

4шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

19

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

R41743

CLAMP

- split, two-piece, tubes

1шт.

22

R58328

BUSHING

- split, tubes at clamp mounting

2шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

- P-type, 5/8 inch ID

1шт.

27

49771

CLAMP

- P-type, 8/8 inch ID

1шт.
