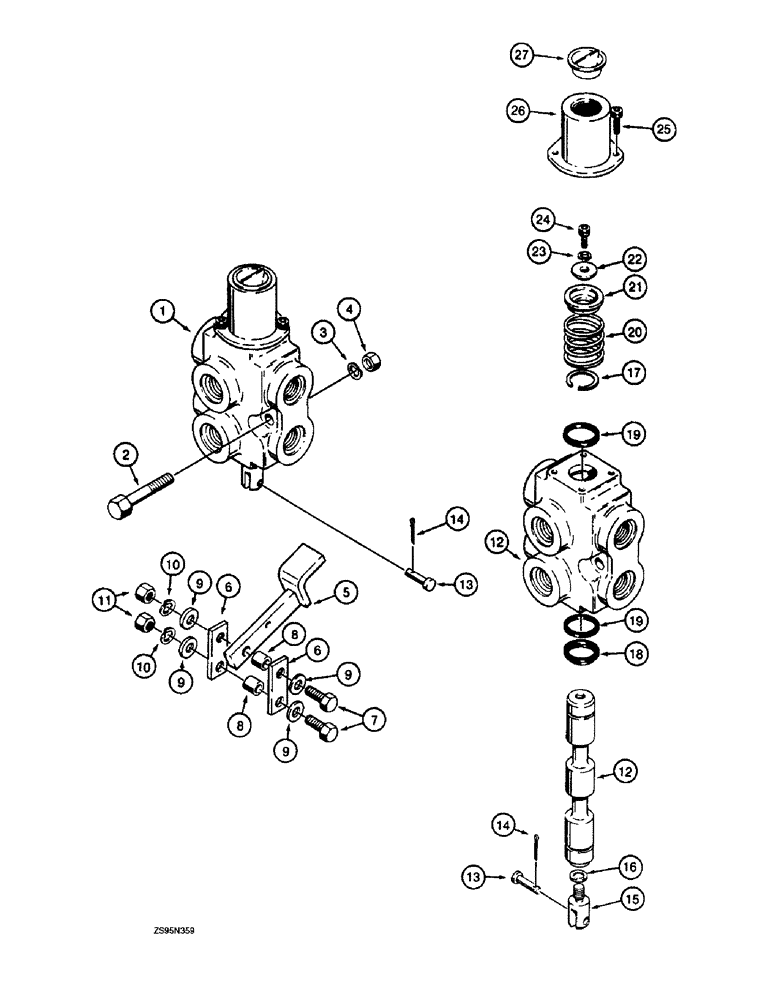

Запчасти Case 1155E (8-046) - SELECTOR VALVE AND CONTROLS, ANGLE TILT PITCH DOZER MODELS ONLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
R24819
VALVE
ASSEMBLY - selector, parts list below
1шт.
2
413-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- hex, 3/8 NC x 2-1/2 inch
2шт.
3
492-11038
LOCK WASHER,3/8"
2шт.
4
425-106
NUT,3/8"-16, Cl 5
2шт.
5
R45993
CONTROL LEVER
LEVER, CONTROL - valve
1шт.
6
R27514
LINK
- control lever to heel plate
2шт.
For the bracket that attaches the valve links to the heel plate on cab models see Figure 9-52.
1шт.
8
R30545
BUSHING
SPACER - control lever links
2шт.
9
495-21031
WASHER,1/4"
- flat, 5/16 x 3/4 x 1/16 inch
4шт.
10
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
11
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
2шт.
R24819
VALVE
ASSEMBLY - selector, tilt pitch hydraulic circuit, Includes: Ref. 12 - 27
1шт.
12
NSS
NOT SOLD SEPARAT
HOUSING AND SPOOL - valve, R24819 selctor
1шт.
13
R24869
AXLE PIN
PIN, AXLE - clevis, spool eye, R24819 selctor valve
1шт.
15
R24867
CLEVIS
- spool top, R24819 selctor valve
1шт.
16
193-68
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, , R24819 selctor valve Int Tooth, 3/8"
1шт.
17
D23692
SNAP RING,#100, Ext, Crescent
Ring, Snap, , spool, R24819 selector valve #100, Ext, Crescent
1шт.
18
R24871
SEAL
- dust, R24819 selctor valve
1шт.
19
R24866
RING
SEAL - quad , spool, R24819 selctor valve
2шт.
20
N8540
SPRING
- R24819 selctor valve
1шт.
21
R24872
SPRING SEAT
SEAT, SPRING - R24819 selctor valve
1шт.
22
R33483
WASHER
- special, R24819 selctor valve
1шт.
23
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , R24819 selctor valve 1/4"
1шт.
24
61-3258
HEX SOC SCREW,1/4"-20 x 1/2"
BOLT - hex socket, 1/4 NC x 1/2 inch, R24819 selctor valve
1шт.
25
61-32512
HEX SOC SCREW,1/4 - 20 x 3/4"
SCREW, , R24819 selctor valve Hex Soc Hd, 1/4"-20 x 3/4"
2шт.
26
N6521
CAP
- end, R24819 selctor valve
1шт.
27
N6522
PLUG
- dust, plastic, R24819 selctor valve
1шт.
7
413-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
2шт.
Выбрано товаров: 29
