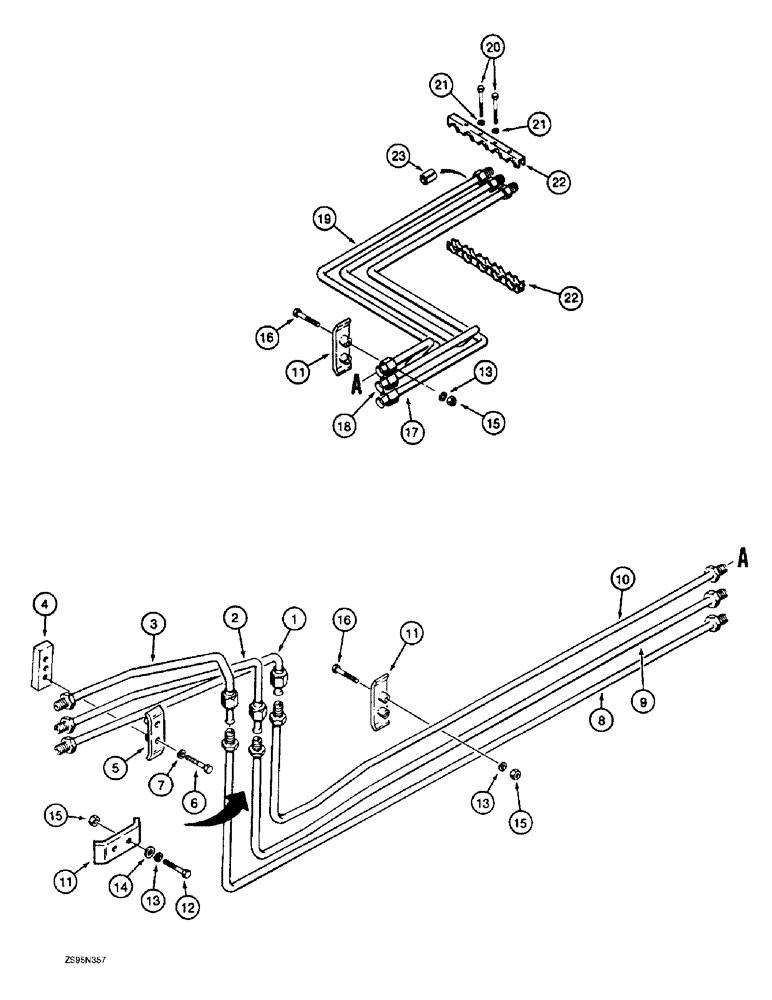

Запчасти Case 1155E (8-040) - DOZER TILT AND PITCH HYDRAULIC CIRCUIT, ANGLE TILT PITCH DOZER MODELS TUBES TO GRILLE (08) - HYDRAULICS

1

R29932

TUBE,1/2" OD x 26.87, 3.5" L

- lower

1шт.

2

R29930

TUBE,0.5" OD

- center

1шт.

3

R30543

TUBE,0.5" OD

- upper

1шт.

4

R27517

BLOCK

- tapped, tube mounting

1шт.

5

R37957

CLAMP

- tube

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

R30541

TUBE,0.5" OD x 45.05, 7.45" L

- intermediate, lower

1шт.

9

R27428

PIPE,0.5" OD

TUBE - intermediate,center

1шт.

10

R27430

TUBE,0.5" OD

- intermediate,upper

1шт.

11

R37957

CLAMP

- tube

3шт.

12

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

6шт.

14

D41740

WASHER

- flat, special, 3/8 inch, hardened

2шт.

15

425-106

NUT,3/8"-16, Cl 5

6шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

17

R54441

PIPE,0.5" OD

TUBE - lower, front

1шт.

18

R54439

TUBE ASSY.,0.5" OD

TUBE - center, front

1шт.

19

R54437

PIPE,0.5" OD

TUBE - upper, front

1шт.

20

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

R41743

CLAMP

- split, two-piece

1шт.

23

R58327

RUBBER BUSHING

BUSHING - split, on tubes for clamp mounting

3шт.
