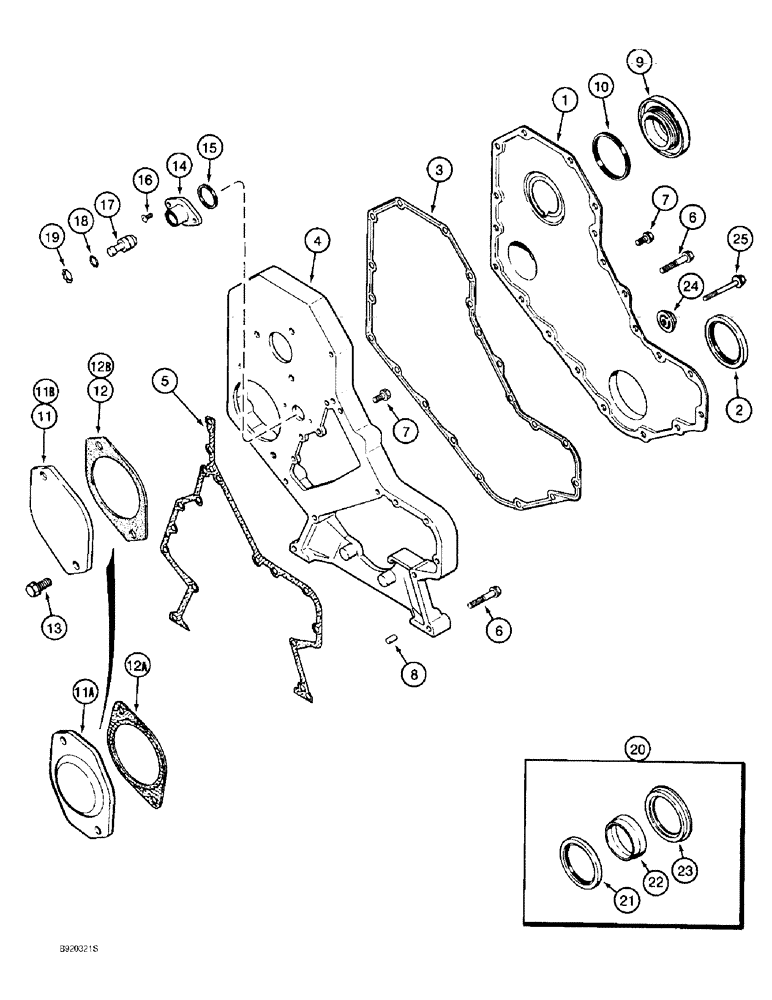

Запчасти Case 1155E (2-006) - FRONT GEAR COVER, 6T-590 ENGINE (02) - ENGINE

1

J903794

COVER

- gear, front, replaces J903663 cover

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order Ref. 20, J904353 seal kit below

1шт.

3

J914385

GASKET,1.02mm Thk

- front cover, replaces J910500 gasket

1шт.

4

J920758

HOUSING

- timing gear, replaces J920518, J910411 and J917759 housing

1шт.

5

J916131

GASKET

- gear housing, replaces J907836 and J914384 gasket

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm, replaces J900633 bolt

10шт.

7

J924962

FLANGE BOLT

BOLT - hex flange, special, 8 - 1.25 x 16 mm (11) for front gear cover to timing gear housing and (5) for timing gear housing to engine block, replaces J900629 and 845-8016 bolt

16шт.

8

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

9

J903463

PLUG,M63 x 5

- front access

1шт.

10

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

11

A77440

PLATE

- access cover, flat, no longer available, order J914868 plate, Ref. 11B

1шт.

11a

J909918

PLATE

- access cover, indented, no longer available, order J914868 plate, Ref. 11B

1шт.

11b

J914868

COVER

PLATE - access cover, flat

1шт.

12

A77441

GASKET

- access cover plate, used with A77440 cover plate, no longer available, order J919601 gasket, Ref. 12B

1шт.

12a

J913192

GASKET

- access cover plate, used with J909918 cover plate, no longer available, order J919601 gasket, Ref. 12B

1шт.

12b

J919601

GASKET

- access cover plate, used with J914868 cover plate

1шт.

13

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, replaces J901249 bolt

2шт.

14

J919683

HOUSING

- timing pin, replaces J905933 housing

1шт.

15

J906693

GASKET

- timing pin housing

1шт.

16

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

17

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

18

J913994

O-RING

- sealing, replaces J903927 O-ring

1шт.

19

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

20

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - seal installation

1шт.

24

J912772

RETAINER

- bolt

1шт.

25

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm, Replaces J901446 bolt

1шт.
