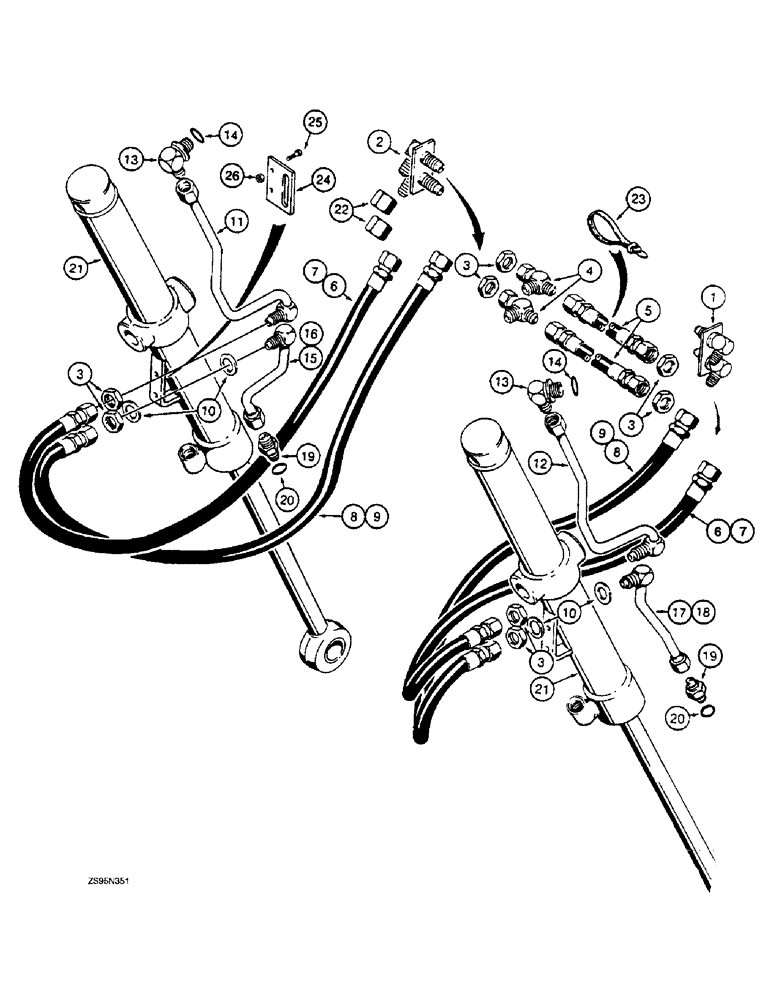

Запчасти Case 1155E (8-026) - DOZER LIFT HYDRAULIC CIRCUIT, HOSES AND CYLINDERS, ATP ANDLGP TILT DOZER MODELS (08) - HYDRAULICS

1

R30962

MANIFOLD

- right-hand

1шт.

2

R30963

MANIFOLD

- left-hand

1шт.

3

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

8шт.

4

218-5483

TEE,1-1/16" - 12 JIC x 1-5/16" - 12 JIC x 1-1/16" - 12 JIC

- lift tubes, 1-5/16-12 flare branch x 1-1/16-12 inch flare x swivel, to crossover hose at radiator shroud

2шт.

5

R25834

HOSE

- 25 inch (635 mm) long, crossover

2шт.

6

R25834

HOSE

- 25 inch (635 mm) long, to closed end of lift cylinder, ATP dozer models

2шт.

7

D21788

HOSE

- 31 inch (787 mm) long, to closed end of lift cylinder, LGP tilt dozer models

2шт.

8

D21788

HOSE

- 31 inch (787 mm) long, to rod end of lift cylinder, ATP dozer models

2шт.

9

D39547

HOSE

- 39 inch (991 mm) long, to rod end of lift cylinder, LGP tilt dozer models

2шт.

10

R47989

WASHER

- flat, special, at cylinder bracket

8шт.

11

R49179

PIPE,0.75" OD

TUBE - to closed end of cylinder, left-hand

1шт.

12

R49181

PIPE,0.75" OD

TUBE - to closed end of cylinder, right-hand

1шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, adjustable, Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

15

R49183

PIPE,0.75" OD

TUBE - to rod end of cylinder, left-hand, ATP dozer models

1шт.

16

R49393

PIPE,0.75" OD

TUBE - to rod end of cylinder, right-hand, LGP tilt dozer models

1шт.

17

R49185

PIPE,0.75" OD

TUBE - to rod end of cylinder, right-hand, ATP dozer models

1шт.

18

R49395

PIPE,0.75" OD

TUBE - to rod end of cylinder, right-hand, LGP tilt dozer models

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, male, Incl. Ref. 20

2шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, for correct assembly and components see Figure 8-62 or 8-66

1шт.

22

218-335

CAP,37 Degree, 1 1/16"-12

- manifold, hex, 1-1/16-12 inch, used on models without front equipment only

4шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

R49136

SUPPORT

BRACKET -, Serial Range: tubes-cylinders

2шт.

25

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
