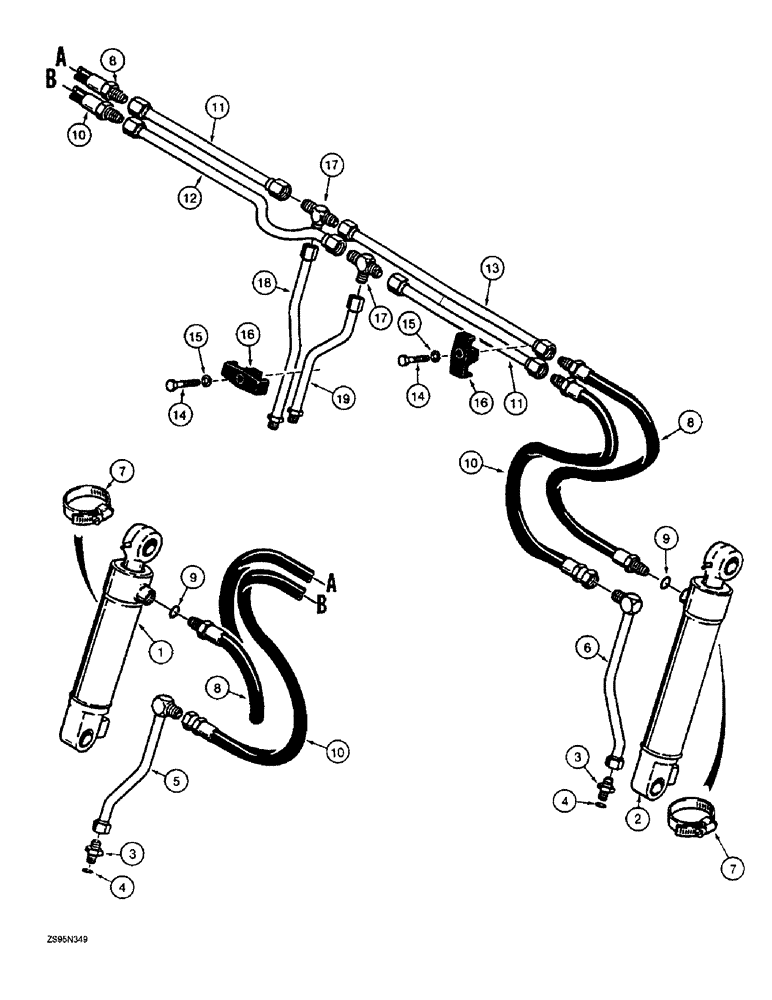

Запчасти Case 1155E (8-022) - CLAM BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER - clam, left-hand, for correct assembly and components, see Figure 8-60

1шт.

2

REF

INSTRUCTION

CYLINDER - clam, right-hand, for correct assembly and components, see Figure 8-60

1шт.

3

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, male, Includes: Ref. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

5

D51304

TUBE

- left-hand cylinder, closed end

1шт.

6

D51306

TUBE

- right-hand cylinder, closed end

1шт.

7

214-21140

CLAMP,#140, 5.25"-5.56", T-Bolt

- tube, adj, 5-1/4 - 5-9/16 inch dia, to cylinder

2шт.

8

D51320

HOSE,12.7mm ID x 812.8mm L, SAE 100R2

- 26 inch (660 mm) long, upper, rod end of cylinder, Includes: Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Hose

1шт.

10

D27073

HOSE

- 26 inch (660 mm) long, lower, closed end of cylinder

2шт.

11

D51258

TUBE

- right-hand lower, left-hand upper

2шт.

12

D51254

TUBE

- left-hand lower

1шт.

13

R31355

TUBE,0.625" OD x 21.2" L

- right-hand upper

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

15

492-11038

LOCK WASHER,3/8"

3шт.

16

D120613

CLAMP,20mm ID

- spacer type, tubes

3шт.

17

218-595

TEE,7/8"-14, 37 Degree

- 7/8-14 inch flare, male

2шт.

18

R25398

TUBE

- left-hand vertical, to rod end of cylinders

1шт.

19

R25380

TUBE

- right-hand, vertical, to closed end of cylinders

1шт.
