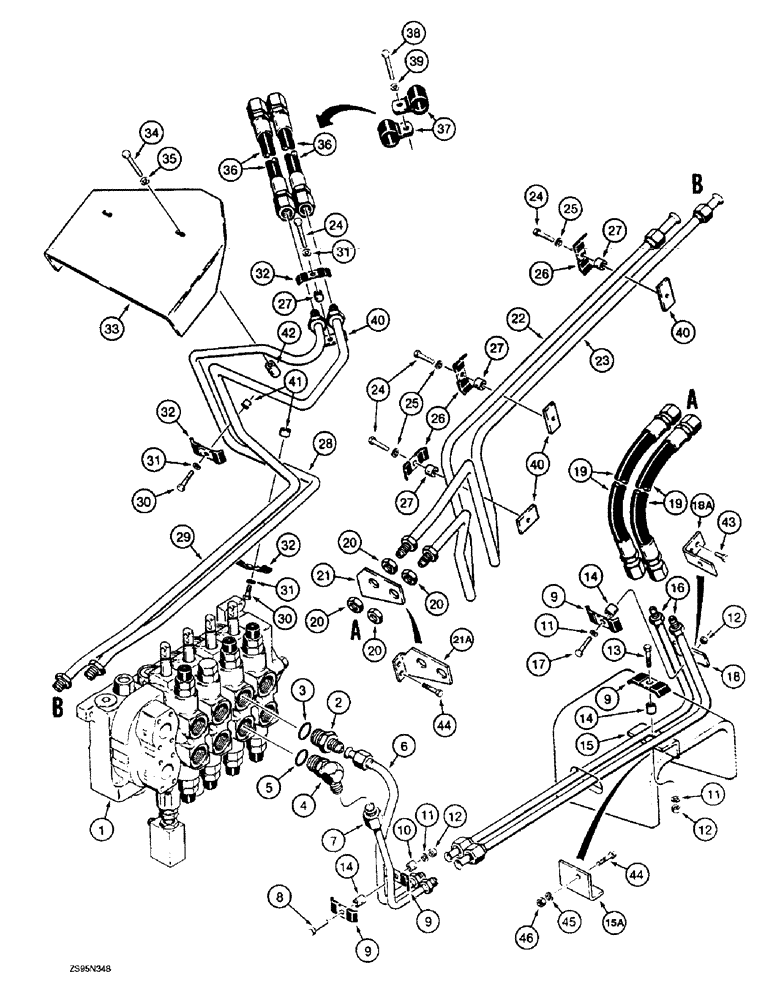

Запчасти Case 1155E (8-020) - LOADER CLAM HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - equipment control, for correct assembly and components see Figure 8-108 or 8-112

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss, male, A port, Incl. Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, adapter

1шт.

4

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, male, B port, Includes: Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, elbow

1шт.

6

R27729

PIPE,0.75" OD

TUBE - at control valve, upper, A port

1шт.

7

R46347

PIPE,11.4, 6.5" L

TUBE - at control valve, lower, B port

1шт.

8

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

9

D40236

CLAMP

- tube

4шт.

10

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- tube

1шт.

11

492-11038

LOCK WASHER,3/8"

3шт.

12

425-106

NUT,3/8"-16, Cl 5

3шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

14

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube

3шт.

15

R27733

BRACKET

- tube support, weld on, if used

1шт.

15a

R58664

BRACKET

- tube support, bolt on, if used

1шт.

16

R34467

TUBE,0.75" OD

- to hoses

2шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

18

R34469

PLATE ASSY.

BRACKET - clamp, weld on, if used

1шт.

18a

R58663

BRACKET

- clamp, bolt on, if used

1шт.

19

L16015

RING

HOSE - 33-1/2 inch (851 mm) long

2шт.

20

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

4шт.

21

R27738

BRACKET

- tube support, weld on, if used

1шт.

21a

R58662

BRACKET

- tube support, bolt on, if used

1шт.

22

R45662

PIPE,0.75" OD

TUBE - loader lift frame, upper, B port

1шт.

23

R45664

PIPE,0.75" OD

TUBE - loader lift frame, lower, A port

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

25

492-11038

LOCK WASHER,3/8"

3шт.

26

D40236

CLAMP

- tube

3шт.

27

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

4шт.

28

R27744

TUBE,0.75" OD

- loader lift frame, lower, A port

1шт.

29

R27746

TUBE,0.75" OD

- loader lift frame, upper, B port

1шт.

30

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

31

492-11038

LOCK WASHER,3/8"

3шт.

32

D40236

CLAMP

- tube

3шт.

33

R30395

GUARD

- tubes

1шт.

34

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

R31969

HOSE

- 46 inch (1168 mm), Serial Range: long,-bucket

2шт.

37

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Hose, On back of loader clam bucket 7/8", Insul, 3/8" Bolt

2шт.

38

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

39

492-11038

LOCK WASHER,3/8"

1шт.

40

D51930

BLOCK

- tapped, rectangular, clamp mounting, weld on

4шт.

41

D33265

NUT

BLOCK - tapped, clamp mounting, weld to lift frame cross bar

2шт.

42

R33372

BLOCK

- tapped, tube guard mounting, weld to lift frame cross bar

2шт.

43

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

44

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

45

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

46

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
