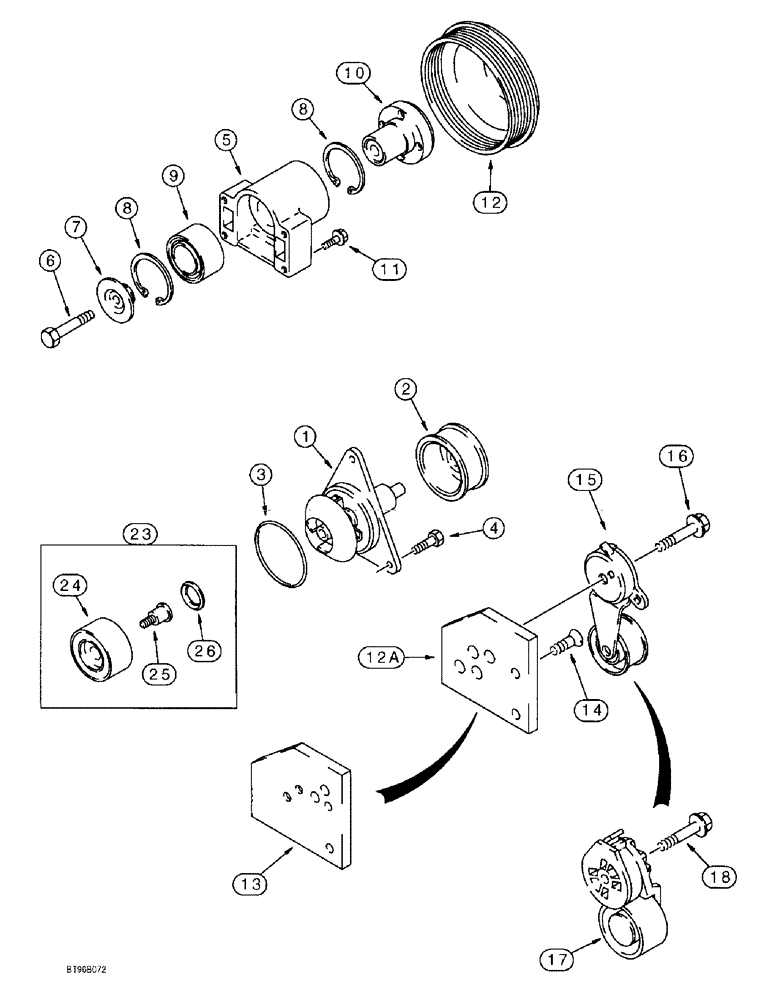

Запчасти Case 1155E (2-004) - WATER PUMP SYSTEM, 6-830 ENGINE, 6T-830 ENGINE (02) - ENGINE

A77704

PUMP, WATER

KIT - water pump, replaces A77579 pump, Includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

1150E, 1155E, Both 6T-830 ENGINE, Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water, new

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J929458

SUPPORT

ASSEMBLY - fan, replaces J910738 support, Includes: Ref. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

- fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

10

J911924

HUB

- fan

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm, fan support to cylinder head

4шт.

12

J914462

PULLEY,163mm OD

- fan, 1.1 to 1 ratio, replaces J908447 pulley

1шт.

12a

J905939

BRACKET

- mounting, tensioner, no longer available, order J913585 bracket, item 13

1шт.

13

J913585

BRACKET

- mounting, tensioner

1шт.

14

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm

2шт.

15

J912246

BELT TENSIONER

TENSIONER - belt, no longer available, order J918944 tensioner and 854-10070 bolt, items 17 and 18

1шт.

16

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

- hex flange, special, belt tensioner to mounting bracket

1шт.

17

J918944

BELT TENSIONER

TENSIONER - belt, replaces J914086 tensioner

1шт.

18

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

1шт.

23

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J918944 belt tensioner, Ref. 17, Includes: Ref. 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - bolt

1шт.
