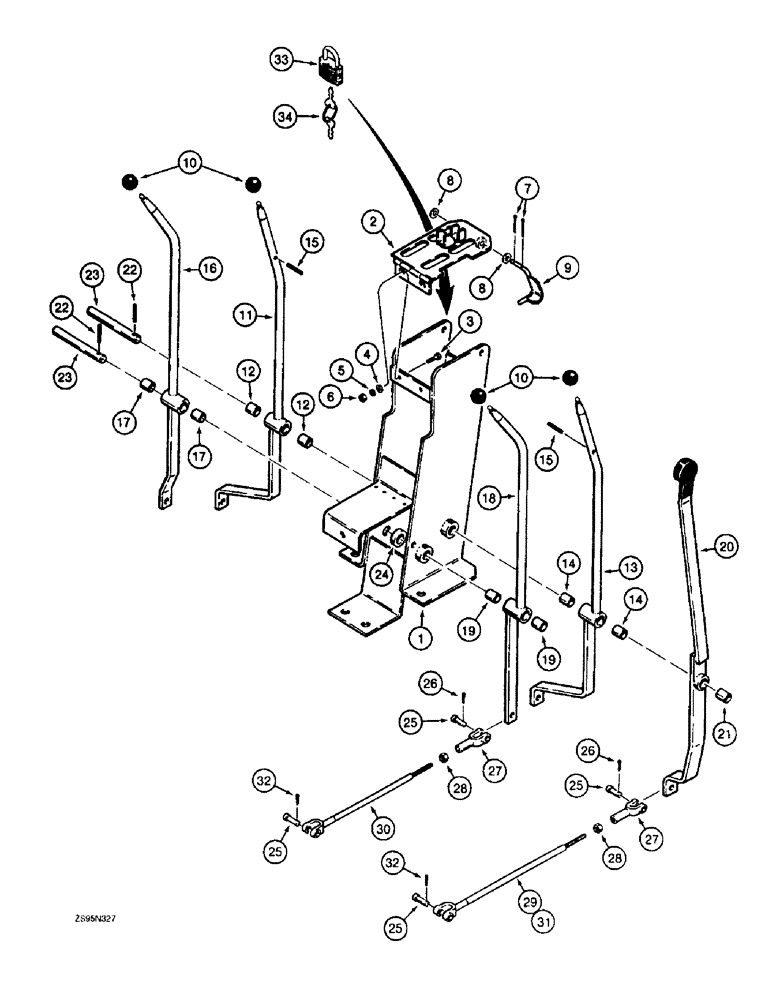

Запчасти Case 1155E (6-60) - TRANSMISSION CONTROL LEVERS AND LINKAGE (06) - POWER TRAIN

1

REF

INSTRUCTION

CONTROL TOWER - for correct control tower and mounting hardware see Figures 9-50 and 9-52

1шт.

2

R28887

LARGE PLATE

PLATE - lock, neutral start

1шт.

3

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

7

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

8

495-31027

WASHER,1/4"

- flat, 17/64 x 5/8 x 3/64 inch

2шт.

9

R36318

LOCK

LATCH - lock

1шт.

10

70213

KNOB

- control lever

4шт.

11

R45833

LEVER

- control, track speed, left-hand, Includes: Ref. 12

1шт.

12

R31144

BUSHING

- control lever

2шт.

13

R45834

LEVER

- control, track speed, right-hand, Includes: Ref. 14

1шт.

14

R31144

BUSHING

- control lever

2шт.

15

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

2шт.

16

R49976

LEVER

- control, forward and reverse, left-hand, Includes: Ref. 17

1шт.

17

R31144

BUSHING

- control lever

2шт.

18

R49977

LEVER

- control, for and reverse, right-hand, Includes: Ref. 19

1шт.

19

R31144

BUSHING

- control lever

2шт.

20

R26827

LEVER

- control, dual range, high-low, dual range, Includes: Ref. 21

1шт.

21

R31144

BUSHING

- control lever

1шт.

22

438-11220

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

2шт.

23

R26815

SHAFT

- lever

2шт.

24

R26854

SPACER

- rear shaft

1шт.

25

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

10шт.

26

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), , At control levers 3/32" x 3/4"

5шт.

27

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

5шт.

28

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

5шт.

29

R26817

ROD

- track speed

2шт.

30

R26818

ROD

- forward and reverse

2шт.

31

R26817

ROD

- high low range

1шт.

32

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , at control valve 3/32" x 1/2"

5шт.

33

D93753

PADLOCK

- Includes: Ref. 34, neutral start lock plate, if used

1шт.

34

R29555

KEY

- for Master padlock only

2шт.

34

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
