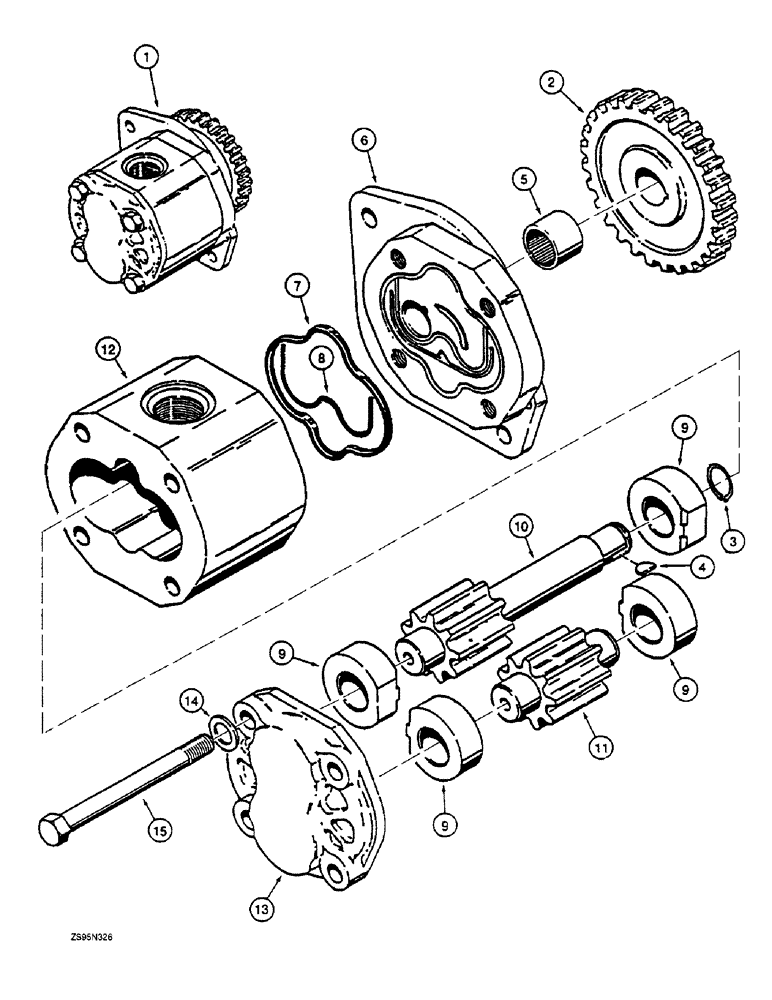

Запчасти Case 1155E (6-58) - TRANSMISSION CHARGING PUMP (06) - POWER TRAIN

1

R25586

PUMP

ASSEMBLY - transmission charging, Includes: Ref. 2 - 15

1шт.

R25586R

REMAN-HYD PUMP

1150E,1155E

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

D32020

GEAR

- pump drive, external

1шт.

3

103-1162

SNAP RING,#62, Ext

Ring, Snap, , Gear #62, Ext

1шт.

4

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

1шт.

5

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle, pump drive gear

1шт.

6

R30679

COVER

- shaft end

1шт.

7

D53279

SEAL

- square type, front and rear covers

2шт.

8

D53280

SEAL

- cover, shaft end

1шт.

9

R30036

BEARING,0.7505" ID x 1.5385" OD x 0.4130"

- gear

4шт.

10

R30037

GEAR

- drive, pump

1шт.

11

R30038

GEAR

- driven, pump

1шт.

12

R30033

HOUSING

BODY - gear

1шт.

13

N9435

COVER

- port end

1шт.

14

95-81077

WASHER,0.39" ID x 0.62" OD x 0.07" Thk

- flat, 25/64 x 5/8 x 1/16 inch, special

4шт.

15

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

4шт.
