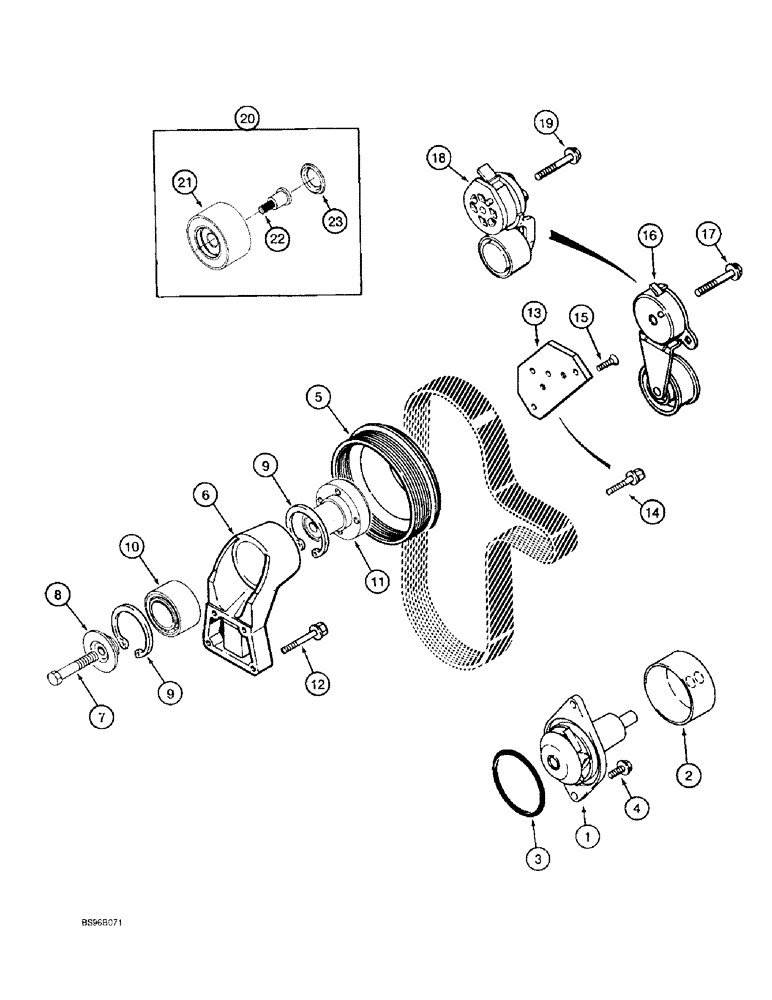

Запчасти Case 1155E (2-002) - WATER PUMP SYSTEM, 6T-590 ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A77703
PUMP, WATER
KIT - water pump, replaces A77471 pump, Includes: Ref. 1 - 3
1шт.
3
238-5341
O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro
(Replaces 22290R1 O-ring) -341, 70 Duro, 3.475" ID x .210" Thk
1шт.
7
J907769
BOLT,Hex, M10 x 70mm, Cl 12.9
- hex, special, 10 - 1.5 x 70 mm, class 12.9
1шт.
12
845-8040
BOLT,Hvy Hex, M8 x 40mm, Cl 8.8
- heavy hex flange, 8 - 1.25 x 40 mm, 8.8, Fan bracket to cylinder block
4шт.
13
J925207
SUPPORT
BRACKET - belt tensioner, replaces J904548 and J919985 bracket
1шт.
14
845-8025
BOLT,Hex Flg, M8 x 25mm, Cl 8.8
- heavy hex flange, 8 - 1.25 x 25 mm
1шт.
15
J925186
SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9
- flat head cap, torx, special, 8 - 1.25 x 25 mm, Replaces J903095 screw
1шт.
16
BELT TENSIONER
TENSIONER - belt, replaces J911315 tensioner, no longer available, order J918944 tensioner and 854-10070 bolt, items 18 and 19
1шт.
19
854-10075
BOLT,Hvy Hex, M10 x 75mm, Cl 10.9
- heavy hex flange, 10 - 1.5 x 75 mm, class 10.9
1шт.
20
A77817
KIT
KIT - belt tensioner pulley, used to replace pulley of J918944 belt tensioner, Ref. 18, Includes: Ref. 21 - 23
1шт.
