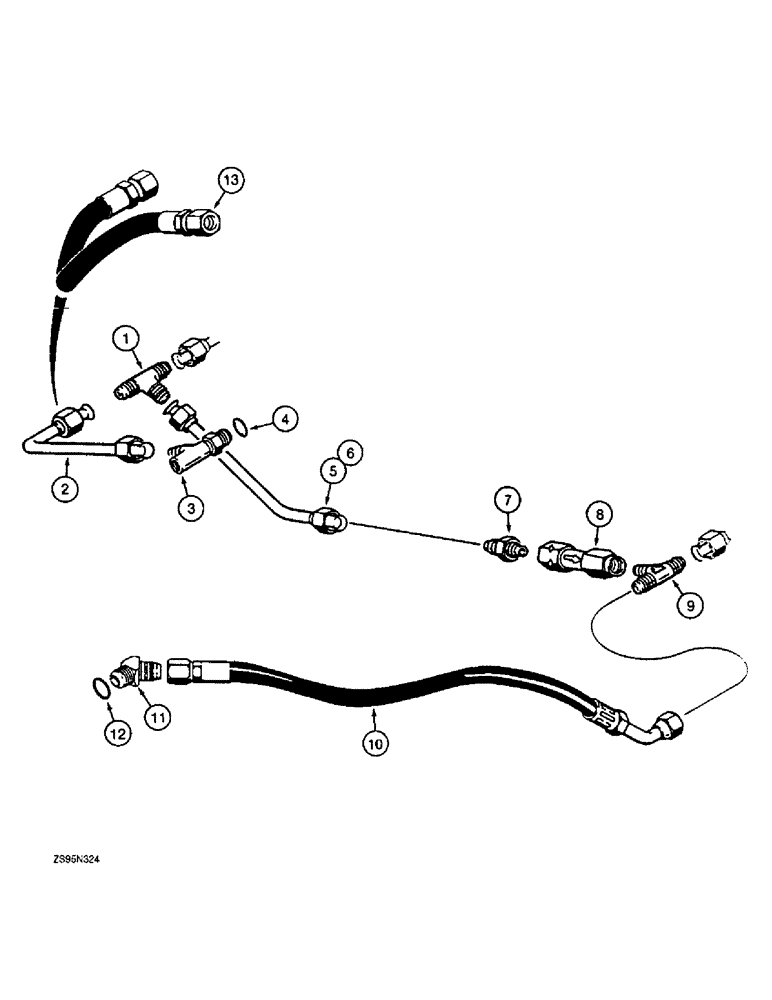

Запчасти Case 1155E (6-54) - TRANSMISSION HYDRAULIC CIRCUIT, COOLING SYSTEM, CROSSOVER TUBE TO TORQUE CONVERTER & TRANS PORTS (06) - POWER TRAIN

1

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare branch x flare x flare, male

1шт.

2

R54209

TUBE,19.05 mm OD x 270, 135 mm L

- to torque converter, no longer used, order H284877 tube, Ref 13 below

1шт.

3

D44004

FITTING

TEE - special, at torque converter port, Includes: Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Tee

1шт.

5

R26166

TUBE,0.75" OD x 14.8, 2.7" L

- crossover, loader models only

1шт.

6

R27114

TUBE,0.75" OD x 14.4, 2.8" L

- crossover, dozer and drawbar models only

1шт.

7

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 1-1/16-12 flare x 3/4 inch PT, male

1шт.

8

R27233

VALVE

- relief, cooling circuit

1шт.

9

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

- 3/4 PT branch x 1-1/16-12 inch flare x flare, male

1шт.

10

177052A1

HOSE ASSY.

HOSE - 36 inch (914 mm) long, to clutch lube oil block on front of transmission

1шт.

11

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj O-ring boss, adjustable, Includes: Ref. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

13

H284877

HYDRAULIC HOSE,19.05 mm ID x 584.20 mm, SAE 100R1

- To torque converter 19.05 mm ID x 584.20 mm, SAE 100R1

1шт.
