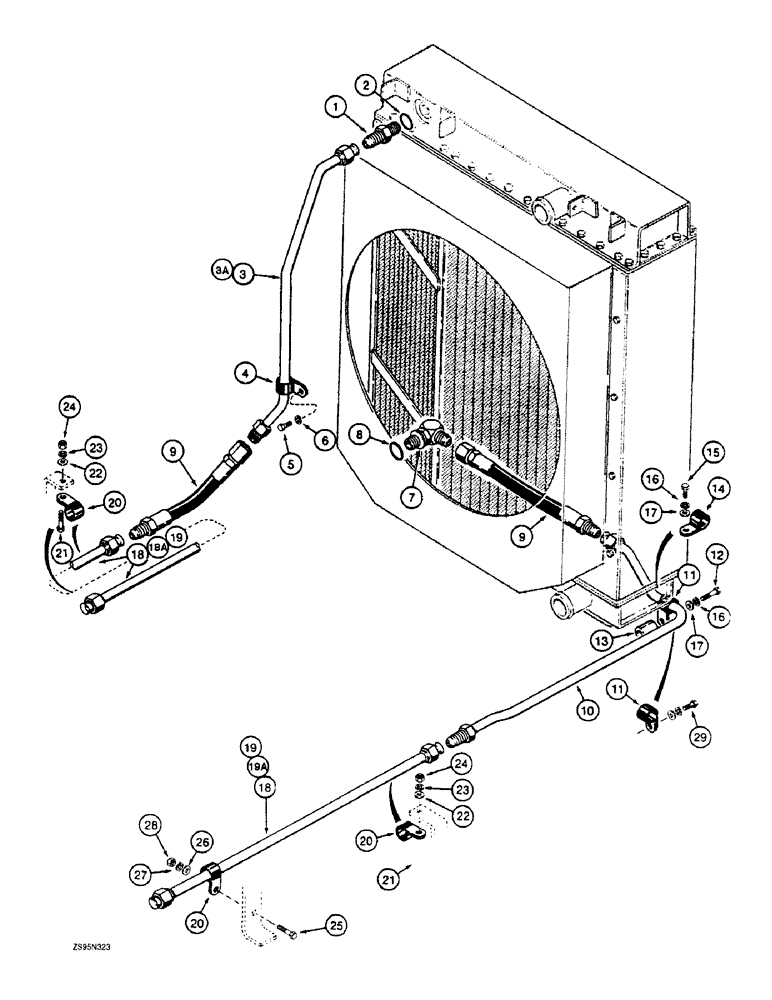

Запчасти Case 1155E (6-52) - TRANSMISSION HYDRAULIC CIRCUIT, COOLING SYSTEM, RADIATOR TO CROSSOVER TUBE AT TORQUE CONVERTER (06) - POWER TRAIN

1

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, top rear of radiator, Incl. Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

3

R54338

TUBE,0.75" OD

- to top of radiator, loaders and all dozers except 62 inch gauge long track models

1шт.

3

R55011

PIPE,0.75" OD

TUBE - to top of radiator, 62 inch gauge long track dozer models only

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Tube, To rear of radiator 3/4", Insul, 3/8" Bolt

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

218-5550

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, long, 1-1/16-12 inch flare x O-ring boss, adjustable, long, Includes: Ref. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

9

R49468

HOSE

- 12 inch (305 mm) long

2шт.

10

R54645

PIPE,0.75" OD

TUBE - from lower front of radiator

1шт.

11

51200329

CLIP

CLAMP - tube, P-type, 3/4 inch ID, to radiator mount on main frame, loader models only

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Loader models only, Used with spacer (Ref. 13), if used

1шт.

13

R41259

SPACER

- clamp mounting, loader models only, if used

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Tube, Front of radiator, dozer and drawbar models only 3/4", Insul, 3/8" Bolt

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Dozer and drawbar models only Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

18

R54213

PIPE,19.05 mm OD x 778 mm L

TUBE - loader models, both sides

2шт.

18a

R55013

TUBE ASSY.,19.05 mm OD x 30, 816 mm L

TUBE - 62 inch gauge long track dozer models

1шт.

19

R54211

PIPE,19.05 mm OD x 30, 918 mm L

TUBE - all dozers except 62 inch gauge long track models only, both sides

2шт.

19a

R54211

PIPE,19.05 mm OD x 30, 918 mm L

TUBE - 62 inch gauge long track dozer models

1шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Tubes 3/4", Insul, 3/8" Bolt

4шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

27

492-11038

LOCK WASHER,3/8"

1шт.

28

425-106

NUT,3/8"-16, Cl 5

1шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Used on loader models without Ref. 13 spacer, if used

1шт.
