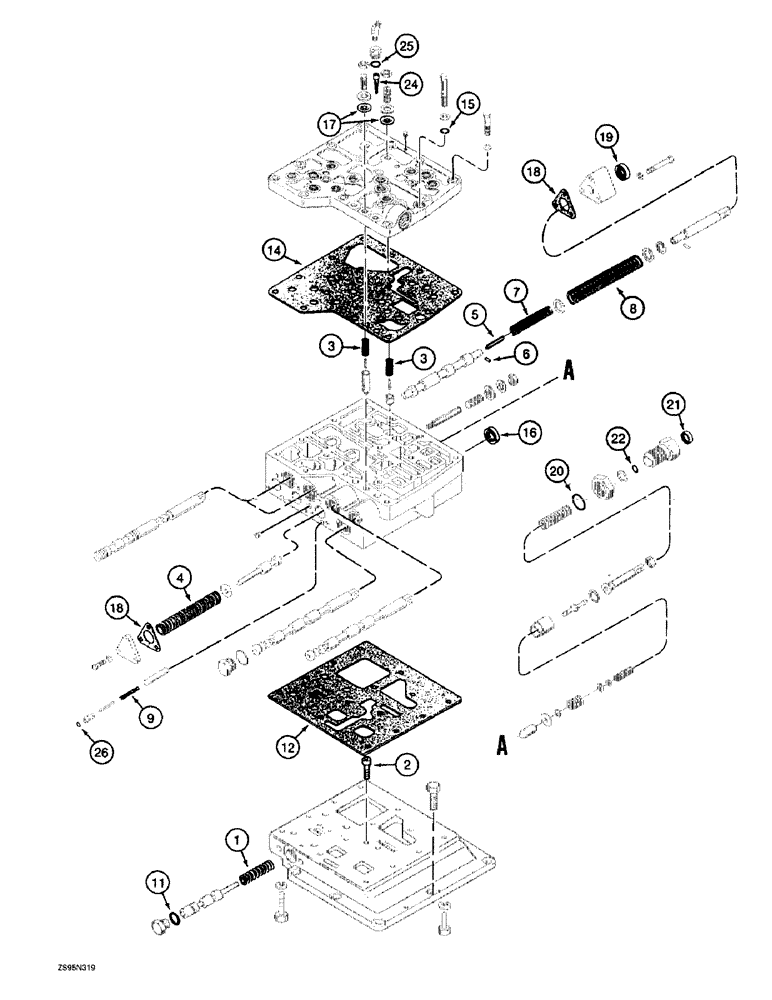

Запчасти Case 1155E (6-44) - TRANSMISSION SERVICE KITS, CONTROL VALVE OVERHAUL AND SEAL KITS (06) - POWER TRAIN

G101836

VALVE

KIT - overhaul, control valve, no longer available, order parts below as needed, Includes: Ref. 1 - 26

1шт.

1

A50783

SPRING

- equalizer spool

1шт.

2

A51838

LOCK BOLT,1/4" - 20 x 0.75", Gr 8

BOLT - hex socket, self-locking, 1/4 NC x 3/4 inch

1шт.

3

G100767

SPRING

- detent

5шт.

4

A50755

SPRING

- pressure regulator

1шт.

5

A51836

BRACKET

LINK - brake spool return

2шт.

6

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN, 3/32" x 3/8", Slotted

4шт.

7

G109865

SPRING

- brake actuator

2шт.

8

A50743

SPRING

- brake spool return

2шт.

9

A51837

SPRING

- range orifice spool

1шт.

10

G103916

VALVE

ASSEMBLY - modulator, parts list Figure 6-32, not shown assembled

1шт.

1341844C1

SET OF PARTS

KIT - seal, control valve, Includes: Ref. 11 - 26

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Spool plug

6шт.

12

1980467C2

GASKET

- control, Serial Range: valve-base

1шт.

13

A50717

GASKET

- control valve spacer, not used on 1150E or 1155E Crawler, not shown

2шт.

14

1340748C2

GASKET

- valve cover

1шт.

15

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Cover

1шт.

16

G105118

OIL SEAL

- oil, valve body

5шт.

17

A50733

SEAL

- oil, spool detent

6шт.

18

A50753

GASKET

- cover plate and rod housing

5шт.

19

G105700

OIL SEAL

- oil, brake actuator rod

2шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, modulator valve, large

1шт.

21

A50768

WIPER SEAL

- modulator rod

1шт.

22

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Modulator rod, small -112, Cl 7, .487" ID x .103" Thk

1шт.

23

A142027

SHIM

- .005 inch (0.127 mm) thick, modulator valve, not used on 1150E or 1155E Crawler, not shown

2шт.

23

A142028

SHIM

- .007 inch (0.178 mm) thick, modulator valve, not used on 1150E or 1155E Crawler, not shown

2шт.

24

A50763

VALVE

FILTER - modulator valve

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Filter plug

1шт.

26

238-5007

O-RING,0.07" Thk x 0.145" ID, -7, Cl 5, 75 Duro

-007, 70 Duro, .145" ID x .070" Thk, Plug, range orifice spool

1шт.
