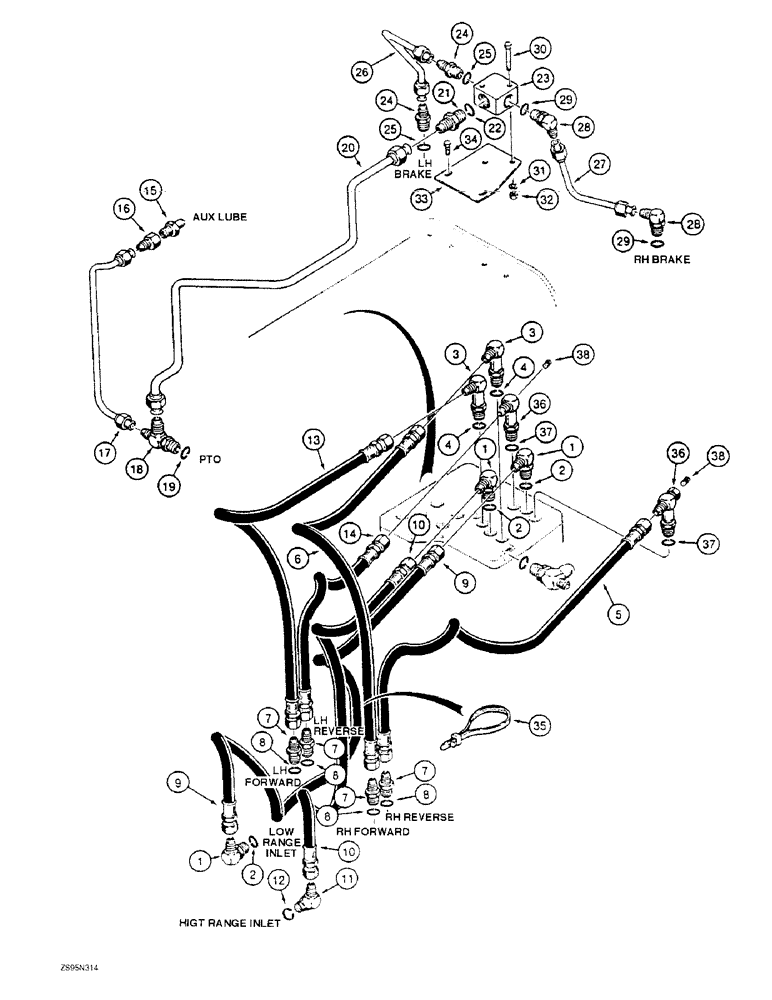

Запчасти Case 1155E (6-34) - TRANSMISSION HYDRAULIC CIRCUITS, REAR OF TRANSMISSION TO CONTROL VALVE AND BRAKES (06) - POWER TRAIN

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, male, Includes: Ref. 2

3шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

3

R20739

FITTING

ELBOW - 90 degree, special, Includes: Ref. 4

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

5

G35438

HYDRAULIC HOSE,25mm ID x 2000mm L, SAE 100R1

- RH reverse 6.35 mm ID x 508.00 mm, SAE 100R1

1шт.

6

S77121

HOSE

- 20 inch (508 mm) long, right-hand forward, service replacement for 18 inch (457 mm) long hose used in production

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, male, Incl. Ref. 8

4шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

9

A50789

HYDRAULIC HOSE,6.35 mm ID x 812.80 mm, SAE 100R1

Low range 6.35 mm ID x 812.80 mm, SAE 100R1

1шт.

10

A51522

HYDRAULIC HOSE

HOSE - 24 inch (610 mm) long, high range

1шт.

11

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, adjustable, Includes: Ref. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

13

G35437

HYDRAULIC HOSE,6.35 mm ID x 482.60 mm , SAE 100R1

6.35 mm ID x 482.60 mm, SAE 100R1 - LH forward

1шт.

14

H433162

HOSE

- 23-5/8 inch (600 mm) long, left-hand reverse, service replacement for 22 inch (559 mm) long hose used in production

1шт.

15

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

REDUCER - 1/4 PT x 1/8 inch PT, if used

1шт.

15

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight, if used 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

16

218-463

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Female NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch female PT, if used

1шт.

17

G35432

TUBE,0.375" OD

- auxiliary lube, no longer used, order 1348926C1 tube and 218-453 adapter ref 15 above

1шт.

17

1348926C1

TUBE,330.4, 50.8 mm Length

- auxiliary lube

1шт.

18

A136165

FITTING

TEE - adjustable, special, Includes: Ref. 19

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Tee

1шт.

20

A138892

TUBE

- block to PTO, range lube

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, male, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

23

A136162

FITTING

BLOCK - hydraulic oil

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, male, Incl. Ref 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

26

G102306

TUBE,0.5" OD

- brake lube, left-hand

1шт.

27

G102109

TUBE,0.5" OD x 6.3, 5.79" L

- brake lube, right-hand

1шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, adjustable, Includes: Ref. 29

2шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

30

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

425-106

NUT,3/8"-16, Cl 5

2шт.

33

G100533

BRACKET

- block mounting

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

36

1342850C1

FITTING

ELBOW - 90 degree, special, with port for backup alarm pressure switch connection, Includes: Ref. 37

2шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

38

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT, used on models without backup alarm, if used

2шт.
