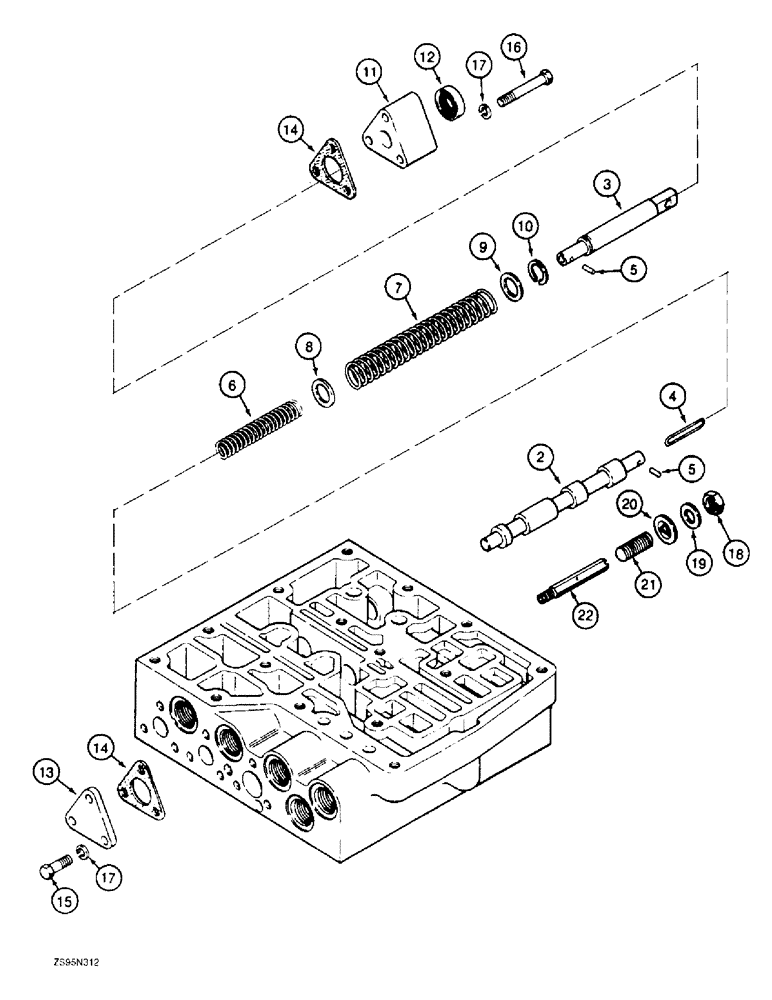

Запчасти Case 1155E (6-30) - TRANSMISSION CONTROL VALVE, BRAKE SPOOL (06) - POWER TRAIN

1

G109997

PISTON ASSY.

SPOOL ASSEMBLY - brake, not shown assembled, Includes: Ref. 2 - 10

2шт.

2

A51834

SPOOL

brake

1шт.

3

A51835

ROD

brake actuator

1шт.

4

A51836

BRACKET

LINK - brake spool return

1шт.

5

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN, , Brake spool 3/32" x 3/8", Slotted

2шт.

6

G109865

SPRING

brake actuator, brake spool

1шт.

7

A50743

SPRING

brake spool return

1шт.

8

A50741

WASHER

spring retaining, inner, brake spool

1шт.

9

A50740

WASHER

spring retaining, outer, brake spool

1шт.

10

100-1162

SNAP RING,#62, Ext

Ring, Snap, , rod, brake spool #62, Ext

1шт.

11

A50751

HOUSING

actuator rod, brake spool

2шт.

12

G105700

OIL SEAL

oil, actuator rod, brake spool

2шт.

Part of Seal Kit, P/N 1341844C1

1шт.

13

A50752

PLATE

brake spool cover

2шт.

14

A50753

GASKET

cover plate and rod housing, brake spool

4шт.

Part of Seal Kit, P/N 1341844C1

1шт.

15

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Brake spool Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

16

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Brake spool Hex, 5/16"-18 x 2", G5

6шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , brake spool 5/16"

12шт.

18

425-158

JAM NUT,Jam, 1/2"-20, G5

Retard valve Jam, 1/2"-20, G5

1шт.

19

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch, retard valve

1шт.

20

A50733

SEAL

retard valve

1шт.

Part of Seal Kit, P/N 1341844C1

1шт.

21

82-45020

SET SCREW,1/2"-13 x 1 1/4", Slotted

SCREW, set, slotted headless, 1/2 x 1-1/4 inch, oval point, retard valve

1шт.

22

A142437

FITTING

MODULATOR - orifice, retard valve

1шт.

1341844C1

SET OF PARTS

KIT - seal, control valve, includes 12, 14 and 20, for complete kit see Figure 6-44, retard valve

1шт.
