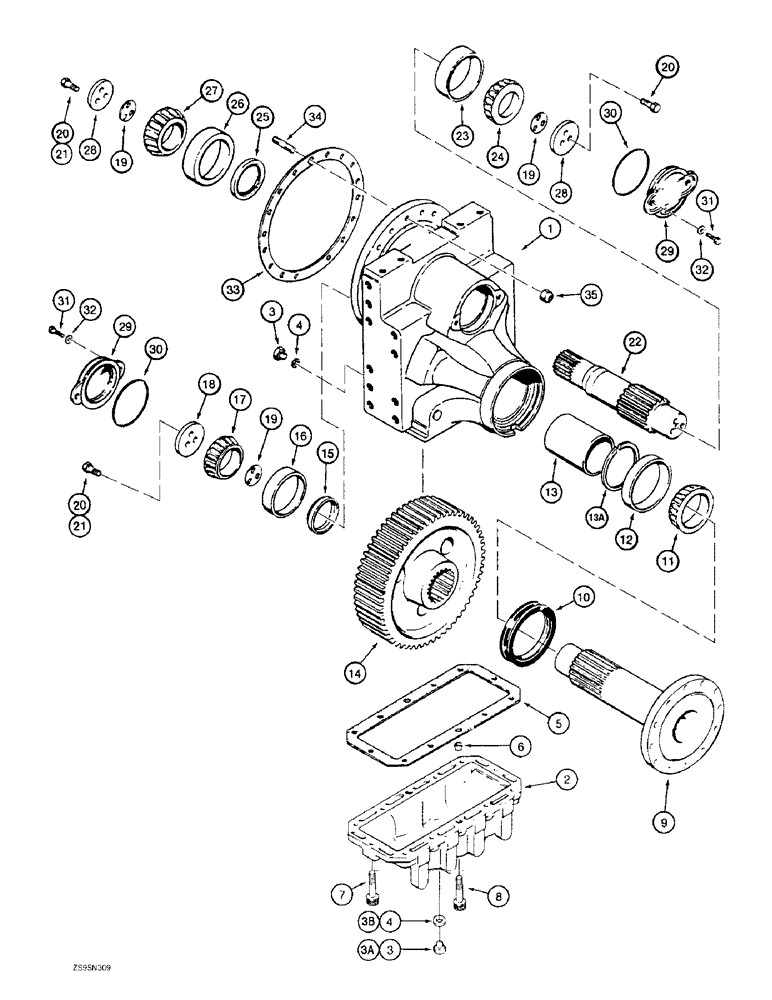

Запчасти Case 1155E (6-24) - TRANSMISSION FINAL DRIVE (06) - POWER TRAIN

G101538

DRIVE

ASSEMBLY - final, transmission, Includes: Ref. 1 - 32

2шт.

G101538 has been replaced by: (1) G101310 housing, (2) G1025211 covers, (4) G49404 washers, (2) 238-5252 O-rings, (4) 413-816 bolts.

1шт.

1

G101310

HOUSING

- final drive assembly

1шт.

2

1348872C1

COVER

- bottom

1шт.

3

A140222

PLUG

- hex, and fill, used with copper washer, if used

2шт.

3a

71100209

PLUG,Hex Soc, 3/4"-16 ORB

If used, Incl Ref 3B Hex Soc, 3/4"-16 ORB

2шт.

3b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, If used

1шт.

4

G102141

SEALING WASHER

WASHER - copper, plug seal, for A140222 plug, if used

2шт.

Part of seal kit, P/N G101833

1шт.

5

A50540

GASKET

- bottom cover

1шт.

Part of seal kit, P/N G101833

1шт.

6

A50011

SLEEVE

- dowel, Serial Range: cover-housing

2шт.

7

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- 12 point flange, 1/2 NC x 1-1/2 inch, grade 8

10шт.

8

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

BOLT - 12 point flange, 1/2 NC x 1-3/4 inch, grade 8

2шт.

9

G50468

FILTER BOWL

- final drive

1шт.

10

G109655

SEAL

- oil, shaft

1шт.

Part of seal kit, P/N G101833

1шт.

11

L33736

ROLLER BEARING

BEARING - tapered roller, shaft, outer

1шт.

Part of overhaul kit P/N G101834

1шт.

12

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - tapered roller bearing

1шт.

Part of overhaul kit P/N G101834

1шт.

13

A50720

SPACER

- outer, if used

1шт.

13a

101-11393

SNAP RING,#393, 3.713, Ext

RING-snap, if used

1шт.

14

G100294

GEAR

- drive, final drive

1шт.

15

A50721

SPACER

- inner

1шт.

16

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

CUP - tapered roller bearing, inner

1шт.

Part of overhaul kit P/N G101834

1шт.

17

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

BEARING - tapered roller, shaft, inner

1шт.

Part of overhaul kit P/N G101834

1шт.

18

1997098C1

PLATE

- end, pinion shaft, shaft

1шт.

Part of seal kit, P/N G101833

1шт.

19

G101997

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of seal kit, P/N G101833

1шт.

19

G101998

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

Part of seal kit, P/N G101833

1шт.

19

G101999

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

Part of seal kit, P/N G101833

1шт.

20

28-920

BOLT,Hex, 9/16" - 18 x 1-1/4", Gr 8

9шт.

21

B17423

LOCTITE

- No. 271, 2 oz. (50 ml), used with 28-920 bolt, item 20

1шт.

22

G109013

SHAFT

- pinion, final drive

1шт.

23

107580R1

TAPERED BEARING,2.375" ID x 5.375" OD x 1.8125"

CUP - tapered roller bearing, pinion shaft, outer

1шт.

Part of overhaul kit P/N G101834

1шт.

24

1997116C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

BEARING - tapered roller, pinion shaft, outer

1шт.

Part of overhaul kit P/N G101834

1шт.

25

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

- oil, pinion shaft

1шт.

Part of seal kit, P/N G101833

1шт.

26

921683C1

BEARING CUP,5.7087" OD x 1.6535"

CUP - tapered roller bearing, pinion shaft, inner

1шт.

Part of overhaul kit P/N G101834

1шт.

27

A50714

BEARING ASSY

BEARING - tapered roller, pinion shaft, inner

1шт.

Part of overhaul kit P/N G101834

1шт.

28

1997098C1

PLATE

- end, pinion shaft

2шт.

Part of seal kit, P/N G101833

1шт.

29

G102521

COVER

- pinion shaft and final drive shaft, and final drive shaft

2шт.

30

238-5252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

Cover -252, 70 Duro, 5.234" ID x .139" Thk

2шт.

Part of seal kit, P/N G101833

1шт.

31

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

32

G49404

WASHER

- hardened, special

4шт.

33

A50726

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

If dealer is looking for O-ring next to shim, P/N is 238-5278. See Figure 6-38, Ref. 17A.

1шт.

Part of seal kit, P/N G101833

1шт.

33

A50725

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

If dealer is looking for O-ring next to shim, P/N is 238-5278. See Figure 6-38, Ref. 17A.

1шт.

Part of seal kit, P/N G101833

1шт.

34

A50592

STUD

- 5/8 NC x 2-3/4 inch

34шт.

35

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

34шт.

G101833

KIT

- seal, includes item 4, 5, 10, 18, 19, 25, 28, 30 and 33, for complete kit see Figure 6-42

1шт.

G101834

DRIVE

KIT - overhaul, includes G101833 kit above, plus item 11, 12, 16, 17, 23, 24, 26 and 27, for complete kit see Figure 6-42

1шт.
