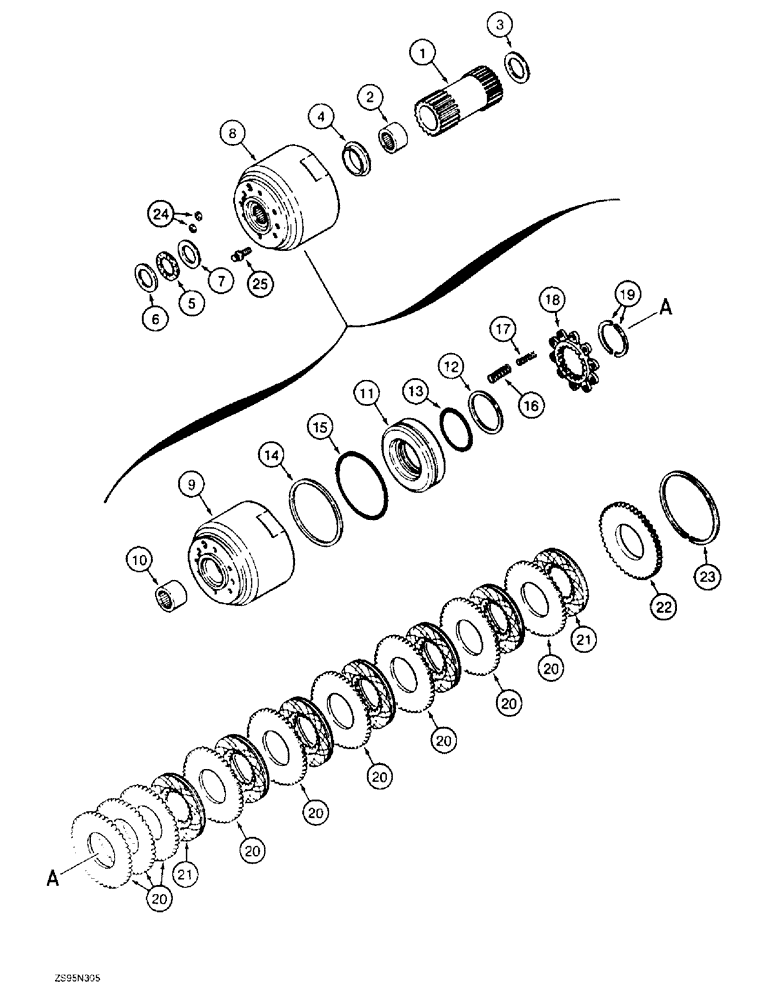

Запчасти Case 1155E (6-16) - TRANSMISSION SUN GEAR AND LOW RANGE CLUTCH (06) - POWER TRAIN

1

A51817

GEAR

- sun

1шт.

2

A50646

NEEDLE BEARING,1.75" ID x 2.125" OD x 1"

BEARING - needle, 2-1/8 inch (54 mm) OD, sun gear

1шт.

3

H147785

BEARING WASHER

WASHER - thrust, 0.031 inch (0.787 mm) thick, front

1шт.

4

A50650

RING

SLEEVE - clutch assembly

1шт.

5

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING - thrust, clutch assembly

1шт.

6

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

RACE - thrust bearing, 0.032 inch (0.793 mm) thick

1шт.

7

T41021

RING RACE

WASHER - thrust, 0.188 inch (4.76 mm) thick

1шт.

8

G105820

CLUTCH

ASSEMBLY - low range, Includes: Ref. 9 - 23

1шт.

9

G105821

FITTING

HOUSING - clutch

1шт.

10

G105785

NEEDLE BEARING

BEARING - needle, clutch housing

1шт.

A50621

PISTON

ASSEMBLY - high range clutch, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - clutch

1шт.

12

A50623

RING,73.74mm ID x 81.36mm OD x 2.49mm Thk

- seal, inner

1шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

13

238-5042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

-042, 70 Duro, 3.239" ID x .070" Thk, Wave, Inner

1шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

14

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

RING - seal, outer

1шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

15

238-5047

O-RING,0.07" Thk x 4.49" ID, -47, Cl 5, 75 Duro

-047, 70 Duro, 4.489" ID x .070" Thk, Wave, Outer

1шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

16

A50627

SPRING

- piston return, outer

10шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

17

A50628

SPRING

- piston return, inner

10шт.

Part of Clutch Repair Kit, P/N G101831

1шт.

18

A50629

RETAINER

- piston return springs

1шт.

19

A50630

RING

- split, retaining, two-piece

1шт.

20

A67156

PLATE

- steel, 70 external teeth

9шт.

21

G102264

CLUTCH DISC,66.93mm ID x 133.35mm OD x 4.04mm Thk

DISC - friction, 22 internal teeth

7шт.

22

A50643

PLATE

- backing

1шт.

23

A50639

RING

- snap, clutch plates

1шт.

24

A50651

SEALING RING

SEAL - rubber

2шт.

Part of Transmission Seal Kit, P/N G101829

1шт.

25

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

BOLT - 12 point flange, 5/16 NC x 7/8 inch, grade 8

2шт.

G101829

GASKET KIT

KIT - transmission seal, includes Ref. 24, for complete kit see Figure 6-38

1шт.

G101831

GASKET KIT

KIT - clutch repair, includes Refs. 12 through 17, for complete kit see Figure 6-40

1шт.
