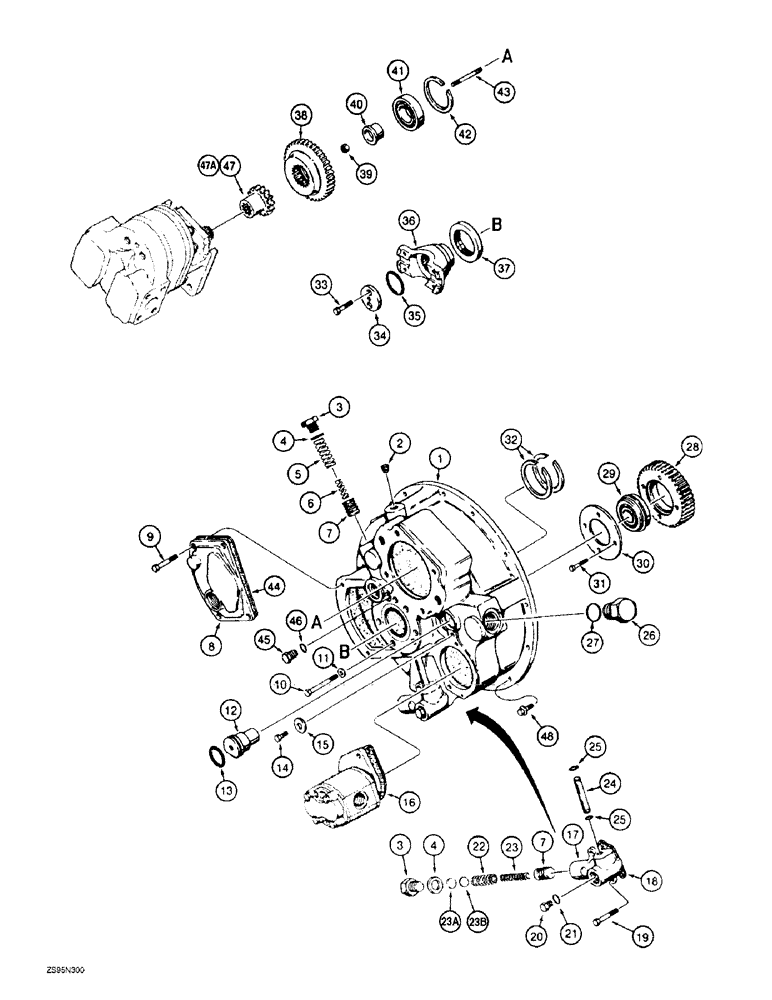

Запчасти Case 1155E (6-02) - TORQUE CONVERTER, HOUSING, COVERS, GEARS, AND MOUNTING (06) - POWER TRAIN

R52029

CONVERTER

ASSEMBLY - torque, dozer and drawbar models, Twin Disc Spec. No. N66154, complete parts list on Figures 6-2 through 6-6, Includes: Ref. 1 - 46

1шт.

R52161

CONVERTER

ASSEMBLY - torque, loader models, Twin Disc Spec. No. N66155, complete parts list on Figures 6-2 through 6-6, Includes: Ref. 1 - 46

1шт.

1

D77622

HOUSING

- torque converter

1шт.

2

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

3

D32013

PLUG

- relief valve

2шт.

4

D32119

WASHER,25.4mm ID x 34.8mm OD x 1.52mm Thk

- relief valve

2шт.

Part of Seal Kit, P/N R38108

1шт.

5

D32031

SPRING

- outer

1шт.

Part of Overhaul Kit, P/N R54507

1шт.

6

D32021

SPRING

- inner

1шт.

Part of Overhaul Kit, P/N R54507

1шт.

7

D32014

PISTON

- relief valve

2шт.

Part of Overhaul Kit, P/N R54507

1шт.

8

R29098

PLATE

- cover, housing

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

6шт.

11

D32117

COPPER WASHER

WASHER, COPPER

6шт.

Part of Seal Kit, P/N R38108

1шт.

12

R29100

SHAFT

- idler gear

1шт.

13

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

Idle gear shaft -222, 70 Duro, 1.484" ID x .139" Thk

1шт.

Part of Seal Kit, P/N R38108

1шт.

14

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

15

D32118

WASHER

- flat, special

1шт.

16

D32000

GASKET

- pump, for pump mounting, see Figure 6-48

1шт.

Part of Seal Kit, P/N R38108

1шт.

17

N6952

HOUSING

BODY - pressure regulator valve

1шт.

18

D32002

GASKET

- pressure regulator valve

1шт.

Part of Seal Kit, P/N R38108

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

20

214389

PLUG,3/4" - 16 ORB

Assy, Includes Ref. 21 Hex Hd, 3/4"-16 ORB

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

Part of Seal Kit, P/N R38108

1шт.

22

N6915

SPRING

- outer

1шт.

Part of Overhaul Kit, P/N R54507

1шт.

23

D72856

SPRING

- inner

1шт.

Part of Overhaul Kit, P/N R54507

1шт.

23a

N6953

SHIM,.0359" Thk

Pressure regulator valve .0359" Thk

1шт.

Part of Overhaul Kit, P/N R54507

1шт.

23b

N6954

SHIM,.0239" Thk

Pressure regulator valve .0239" Thk

1шт.

Part of Overhaul Kit, P/N R54507

1шт.

24

R30090

TUBE,0.62" ID x 0.87" OD x 3.62" L

- relief valve

1шт.

25

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk, Relief valve tube

2шт.

Part of Seal Kit, P/N R38108

1шт.

26

273916

PLUG,Hex, 1-5/16" - 12 ORB

Housing, Includes Ref. 27 Hex Hd, 1 5/16"-12 ORB

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, plug

1шт.

Part of Seal Kit, P/N R38108

1шт.

R38108

GASKET KIT

KIT - seal, includes Refs. 4, 11, 13, 16, 18, 21, 25, 27, 35, 37, 44, and 46 on Figures 6-2 through 6-6

1шт.

R54507

KIT

- overhaull, includes Refs. 5, 6, 7, 22, 23, 23A, 23B, 29, 32, 41 and 42 on Figures 6-2 through 6-6

1шт.

REF

INSTRUCTION

CONVERTER ASSEMBLY - torque, dozer and drawbar models

1шт.

REF

INSTRUCTION

CONVERTER ASSEMBLY - torque, loader models

1шт.

28

R29096

GEAR

- idler

1шт.

29

R29093

BALL BEARING,29.99mm ID x 72mm OD x 18.87mm W

BEARING - ball, idler gear

1шт.

Part of Overhaul Kit, P/N R54507

1шт.

30

R29099

PLATE

- retaining

1шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

32

D32070

RING

- snap, guide carrier

2шт.

Part of Overhaul Kit, P/N R54507

1шт.

33

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

2шт.

34

D32018

PLATE

- yoke retaining

1шт.

35

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

Plate -222, 70 Duro, 1.484" ID x .139" Thk

1шт.

Part of Seal Kit, P/N R38108

1шт.

36

R42731

YOKE

- drive shaft

1шт.

37

D51518

OIL SEAL,57.15mm ID x 82.75mm OD x 13.11mm Thk

- oil, drive shaft yoke

1шт.

Part of Seal Kit, P/N R38108

1шт.

38

D32003

GEAR

- driven

1шт.

39

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

40

D32032

BEARING,1.3782" OD x 1.03

RETAINER - ball bearing

1шт.

41

R29094

BEARING, ROLLER, CYL,34.99mm ID x 72mm OD x 17mm W

BEARING - ball, driven gear

1шт.

Part of Overhaul Kit, P/N R54507

1шт.

42

D32069

RING

- snap, driven gear

1шт.

Part of Overhaul Kit, P/N R54507

1шт.

43

D32067

STUD

- 3/8 NF x 1-1/2 inch

1шт.

44

D32005

GASKET

- cover plate

1шт.

Part of Seal Kit, P/N R38108

1шт.

45

9672438

PLUG,7/16" - 20 ORB

1шт.

46

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Plug

1шт.

Part of Seal Kit, P/N R38108

1шт.

47

R46562

PINION

GEAR - equipment pump drive, for 1 inch shaft

1шт.

47a

R58784

PINION

GEAR - equipment pump drive, for 7/8 inch shaft

1шт.

48

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

BOLT - heavy hex flange, 10 - 1.5 x 35 mm, class 10.9, Scotchgrip coated

12шт.

R38108

GASKET KIT

KIT - seal, includes Refs. 4, 11, 13, 16, 18, 21, 25, 27, 35, 37, 44 and 46 on Figures 6-2 through 6-6

1шт.

R54507

KIT

- overhaull, includes Refs. 5, 6, 7, 22, 23, 23A, 23B, 29, 32, 41 and 42 on Figures 6-2 through 6-6

1шт.
