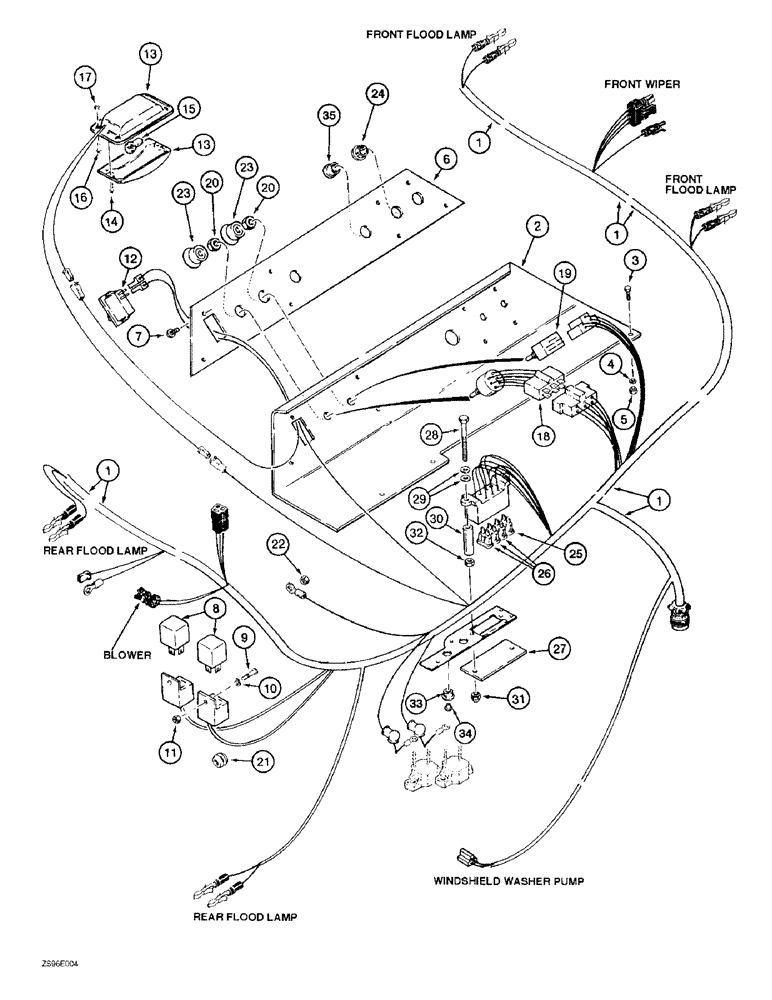

Запчасти Case 1155E (4-52) - CAB CONTROL PANEL, WIRING, AND DOME LAMP, MODELS W/O AIR CONDITIONING (04) - ELECTRICAL SYSTEMS

1

1546445C1

HARNESS

- main wiring, cab, relays, blower motors, lamps; connectors are shipped loose to allow bare harness ends to be fed through grommets in sheet metal before assembly

1шт.

For the blower inside the cab roof, see Figure 9-102; for flood lamps, see Figure 4-40.

1шт.

2

1999653C1

PANEL

- control

1шт.

3

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

6

1999652C1

BEZEL

PLATE - decal mounting, control panel, see Figure 9-130 for decal

1шт.

7

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self tapping, pan Phillips, No. 10-16 x 3/4 "

8шт.

8

198161A1

RELAY

- cab, mini, 24 volt, electrical accessories

2шт.

9

470-10812

SCREW,Pan HD, #8 - 32 x 3/4"

- machine, pan head slotted, No. 8 NC x 3/4 inch

2шт.

10

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

11

225-14108

NUT,#8-32

- hex, No. 8 NC

2шт.

12

F45393

SWITCH

- toggle, dome lamp

1шт.

13

R54198

COURTESY LIGHT

LAMP ASSEMBLY - dome replace 12 volt bulb in this service lamp with 24 volt bulb (Ref. 21), Includes: Ref. 14

1шт.

14

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- machine, round head Phillips, No. 8 NC x 1/4 inch

2шт.

15

D71459

LAMP

BULB - No. 1591, 24 volt, dome lamp service replacement

1шт.

16

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

- machine, flat head slotted, No. 8 NC x 5/8 inch

4шт.

17

225-14108

NUT,#8-32

- hex, No. 8 NC, plated

4шт.

18

92115C2

SWITCH

- wiper

1шт.

19

A42622

SWITCH

- blower

1шт.

20

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switch retaining

2шт.

21

1546464C1

GROMMET

- 13/64 inch ID, for 1/2 inch hole

1шт.

22

232-1446

NUT,3/8"-16, GC

NUT, LOCK, , Harness to ground stud 3/8"-16, GC

1шт.

23

111282C1

KNOB

- switch, blower and wiper

2шт.

24

1999574C1

PLUG

- nylon, 1/2 inch diameter, if used

1шт.

25

A149801

FUSE,Lt Blue, 15 Amp

- light blue, 15 ampere

1шт.

26

A149800

FUSE,10 Amp

- red, 10 ampere

3шт.

27

1999420C1

COVER

- fuse block

1шт.

28

1999829C1

SCREW

BOLT - hex, special, No. 10 NC x 2-3/4 inch

2шт.

29

495-31022

WASHER,#10

4шт.

30

1999515C1

SPACER

- fuse block

2шт.

31

129-642

CROWN NUT,Crown, #10-24

- dome, No. 10 NC

2шт.

32

230-42409

NUT,#10-24, GA

NUT - hex, self locking, No. 10 NC

2шт.

33

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch, if used

2шт.

34

353-421

PLUG,Dome, .187" hole, Nylon

If used Dome, .187" hole, Nylon

4шт.

35

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch, if used

1шт.
