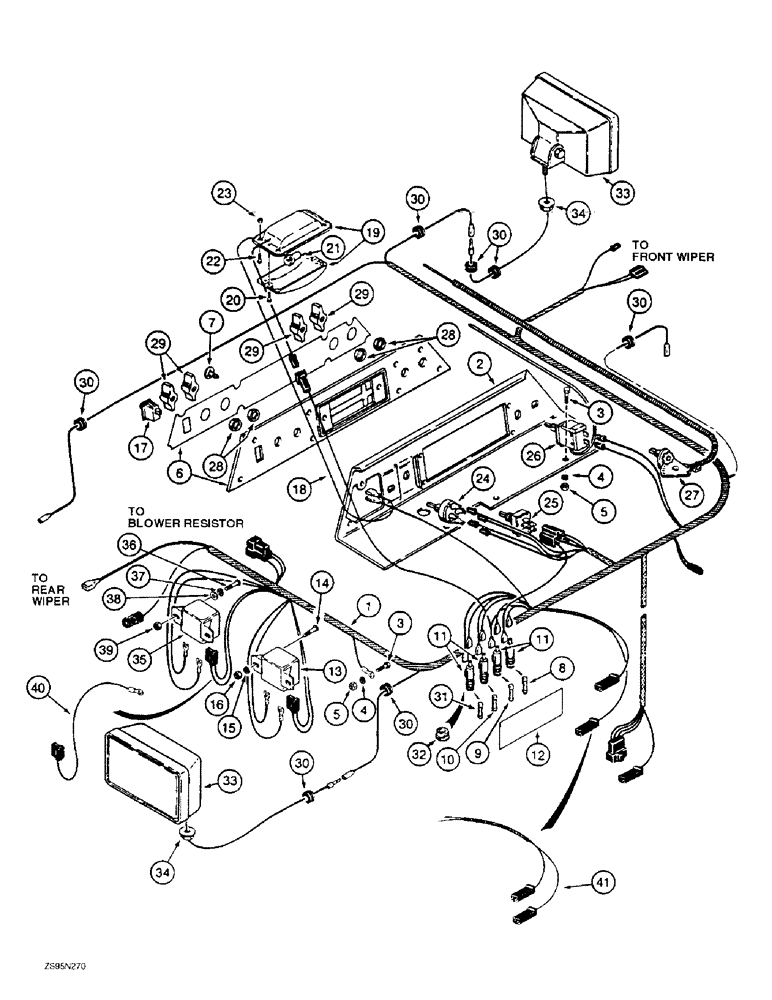

Запчасти Case 1155E (4-50) - CAB CONTROL PANEL, WIRING, & LAMPS, MODELS WITH AIR CONDITIONING (04) - ELECTRICAL SYSTEMS

1

1999813C1

HARNESS

- main wiring, cab, relays, blower motors

1шт.

For the blower inside the cab roof, see Figure 9-102; for the blower above the cab roof, see Figure 9-112.

1шт.

2

R53389

SUPPORT

PANEL - control

1шт.

3

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

6

F64629

PANEL ASSY.

PLATE - cab control panel, includes decal, see Figure 9-130 for decal

1шт.

7

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self tapping, pan Phillips, No. 10-16 x 3/4 "

8шт.

8

223-35

FUSE,8 Amp, Type 3AG

- 3AG, 8 ampere, blower

1шт.

9

223-10

FUSE,10 Amp, Type 3AG

- 3AG, 10 ampere, front wiper and dome lamp

1шт.

10

223-38

FUSE,3 Amp, Type 3AG

- 3AG, 3 ampere, rear wiper

1шт.

11

A22874

HOLDER

- fuse

3-4шт.

12

R53390

DECAL

- Heat/Air Blower, Front Wiper, Rear Wiper, A/C

1шт.

13

1546542C1

RELAY

- sealed, 24 volt, electrical accessories

1шт.

14

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

225-14110

NUT,#10-24

2шт.

17

F45393

SWITCH

- toggle, dome lamp

1шт.

19

R54198

COURTESY LIGHT

LAMP ASSEMBLY - dome, replace 12 volt bulb in this service lamp with 24 volt bulb (Ref. 21), Includes: Ref. 20

1шт.

20

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

- machine, round head Phillips, No. 8 NC x 1/4 inch

2шт.

21

D71459

LAMP

BULB - No. 1591, 24 volt, dome lamp service replacement

1шт.

22

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

- machine, flat head slotted, No. 8 NC x 5/8 inch

4шт.

23

225-14108

NUT,#8-32

- hex, No. 8 NC, plated

4шт.

24

F43359

SWITCH

- wiper

1шт.

25

A42622

SWITCH

- blower

1шт.

26

L73646

SWITCH

- air conditioning temperature control, thermostat

1шт.

27

F64904

CONTROL

- heater, with cable

1шт.

28

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switch, retaining

4шт.

29

L74694

KNOB

- control switch

4шт.

30

1546464C1

GROMMET

- 13/64 inch ID, for 1/2 inch hole

1шт.

31

223-27

FUSE,20 Amp, Type 3AG

- 3AG, 20 ampere, air conditioning, if used

1шт.

32

353-404

PLUG,Dome, .500" hole, Nylon

(13 mm), If used Dome, .500" hole, Nylon

1шт.

33

F96876

LAMP

ASSEMBLY - front and rear flood, parts list Figure 4-44

4шт.

34

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

35

1546542C1

RELAY

- air conditioning switch, sealed, 24 volt, if used

1шт.

36

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

37

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

38

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

39

225-14110

NUT,#10-24

2шт.

40

1999815C1

CABLE

WIRE - relay ground, if used

1шт.

41

1999814C1

HARNESS

WIRE - jumper, low pressure switch, if used

1шт.
