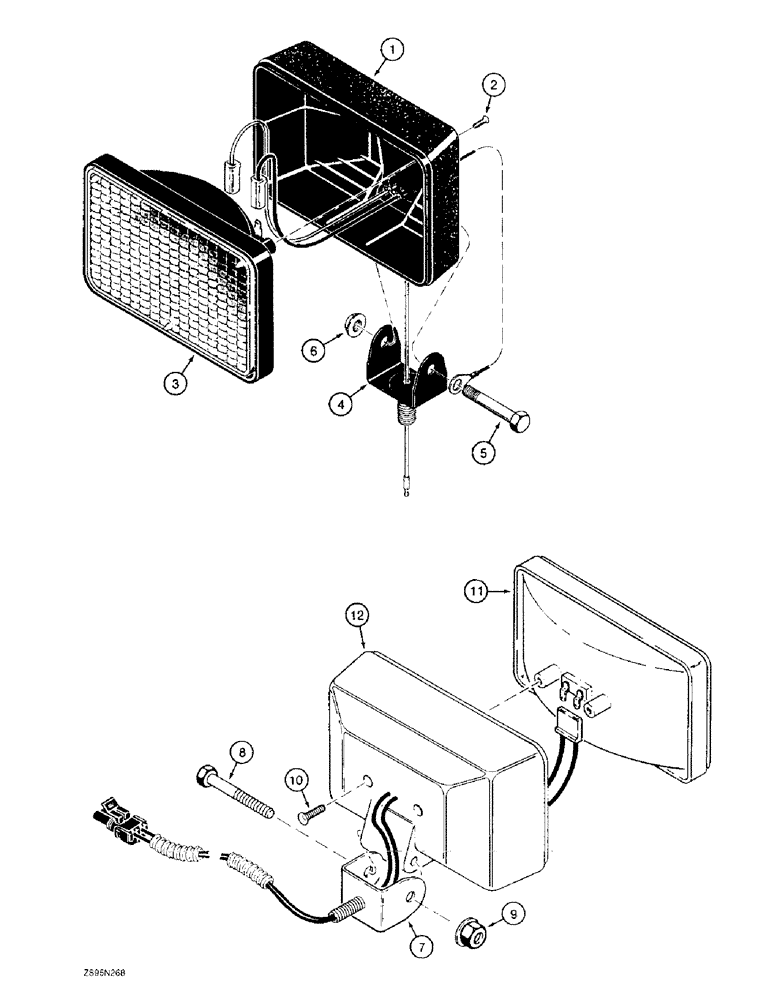

Запчасти Case 1155E (4-44) - LAMP ASSEMBLY, MODELS WITH ROPS CANOPY OR CAB, F96876 LAMP ASSY (04) - ELECTRICAL SYSTEMS

F96876

LAMP

ASSEMBLY - front and rear flood, if used, see wiring connection, Includes: Ref. 1 - 6

4шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp, F96876 assy

1шт.

2

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat head slotted, No. 8-18 x 1/2 inch, F96876 lamp assy

2шт.

3

103653A1

HEADLIGHT,24V, 60W

BULB - sealed beam, F96876 lamp assy

1шт.

4

N8347

SUPPORT

BRACKET - lamp, F96876 assy

1шт.

5

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

F96876 lamp assy Hex, 5/16"-18 x 2", G5

1шт.

6

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC, F96876 lamp assy

1шт.

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - front and rear flood, if used, see wiring connection, Includes: Ref. 7 - 12

4шт.

7

A187913

SUPPORT

BRACKET - lamp, A187520 assy

1шт.

8

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

A187520 lamp assy Hex, 5/16"-18 x 2", G5

1шт.

9

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange, self-locking, 5/16 inch NC, A187520 lamp assy

1шт.

10

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - self-tapping, flat head slotted, No. 8-18 x 1/2 inch, A187520 lamp assy

2шт.

11

103653A1

HEADLIGHT,24V, 60W

BULB - sealed beam, A187520 lamp assy

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - lamp, A187520 lamp assy

1шт.
