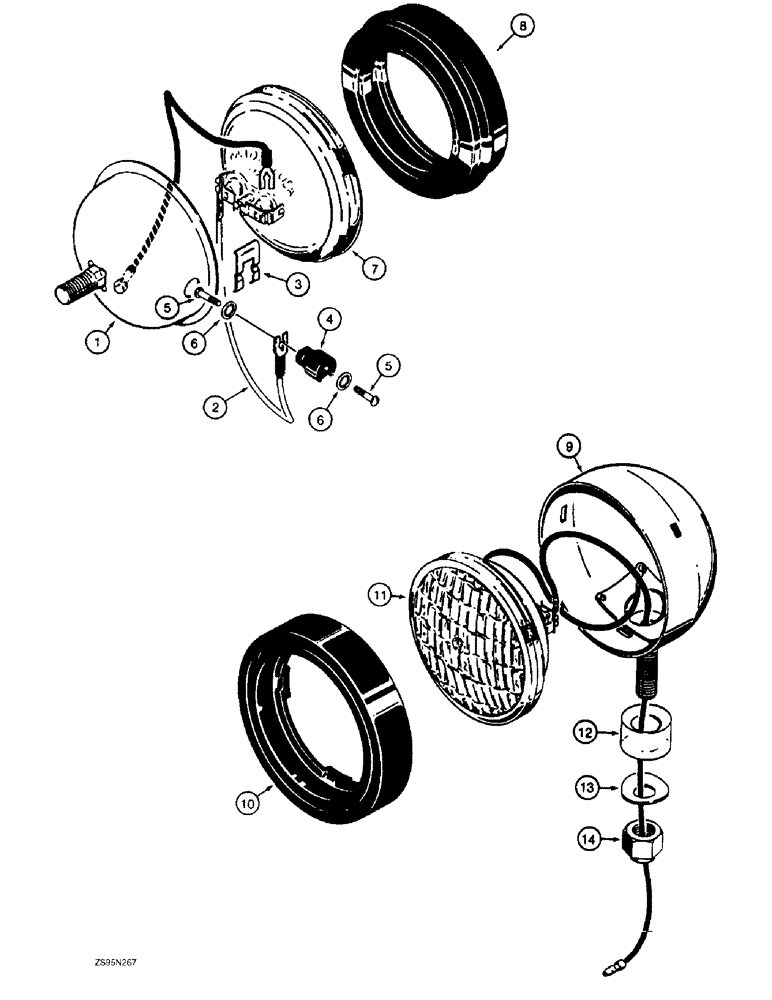

Запчасти Case 1155E (4-42) - LAMP ASSEMBLIES, MODELS WITHOUT ROPS CANOPY OR CAB, L45149 HEAD LAMP ASSY., R51415 REAR LAMP ASSY (04) - ELECTRICAL SYSTEMS

L45149

HEADLIGHT

LAMP ASSEMBLY - head, front flood, side mounted, 24 volt, Includes: Ref. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp, front, with internal wire

1шт.

2

A40033

ELECTRICAL WIRE

WIRE - lamp, Serial Range: front,-insulator

1шт.

3

10927

SPRING

CLIP - retainer, insulator, head lamp

1шт.

4

B50293

TERMINAL CONNECTOR

- bulb, wire, head lamp

1шт.

5

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- machine, pan head slotted, No. 8 NC x 1/4 inch, head lamp

2шт.

6

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - internal tooth lock, No. 8, head lamp

2шт.

7

L10499

LAMP

BULB - sealed beam, No. 4589, 24 volt, head lamp

1шт.

8

D31441

RETAINER

- lamp, Serial Range: head,-shell

1шт.

R51415

LAMP

ASSEMBLY - rear flood, 24 volt, Includes: Ref. 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

SHELL - lamp, rear, with internal wire

1шт.

10

A25213

RETAINER

- sealed lamp, rear, Serial Range: rubber,-shell

1шт.

11

L10499

LAMP

BULB - sealed beam, No. 4589, 24 volt, rear lamp

1шт.

12

D37048

BUSHING

- pivot, rear lamp

1шт.

13

D37049

WASHER

- lock, 1/2 inch, special, rear lamp

1шт.

14

231-2448

LOCK NUT,1/2"-20, GB

NUT - light hex, self-locking, 1/2 inch NF, rear lamp

1шт.
