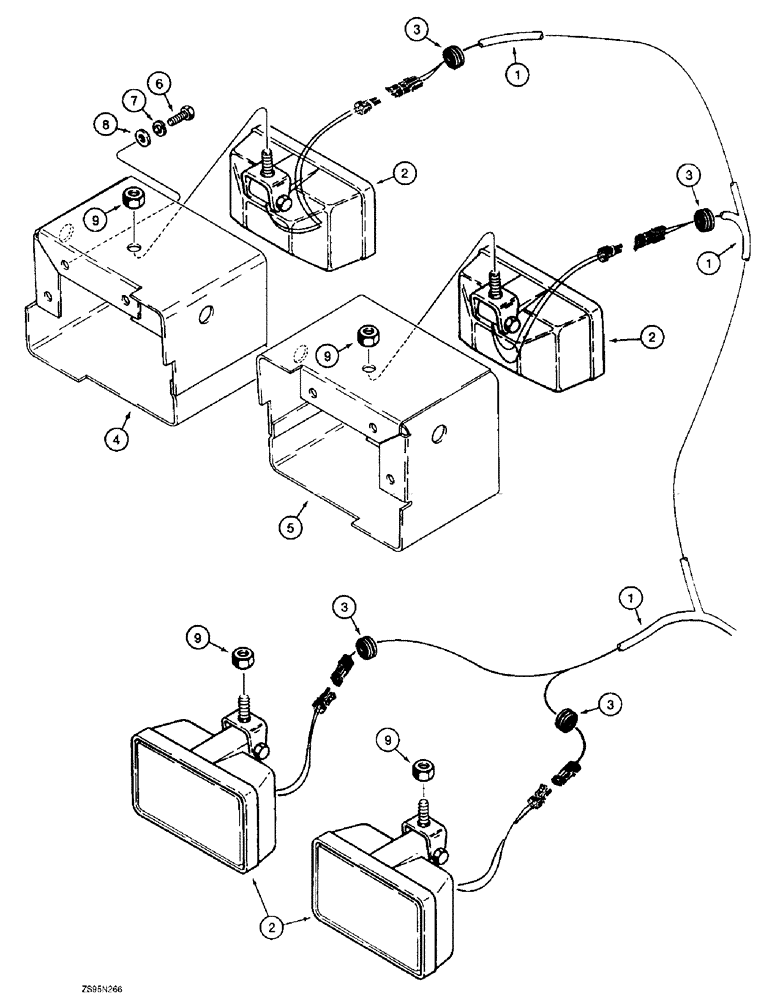

Запчасти Case 1155E (4-40) - LAMPS AND WIRING, MODELS WITH ROPS CAB, DOZER P.I.N. JAK0009016 OR LOADER PIN JAK0009982 & AFT (04) - ELECTRICAL SYSTEMS

1

1546445C1

HARNESS

- main wiring, cab lamps and accessories, see Figures 4-50 and 4-52 for cab harness and connections, connectors are shipped loose to allow bare harness ends to be fed through grommets in sheet metal before assembly

1шт.

2

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - front and rear flood, parts list Figure 4-44

4шт.

3

1546464C1

GROMMET

- harness

4шт.

4

1999472C1

GUARD

BRACKET - left-hand lamp mounting, front

1шт.

5

1999471C1

GUARD

BRACKET - right-hand lamp mounting, front

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

7

492-11038

LOCK WASHER,3/8"

6шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.
